HGSEMI

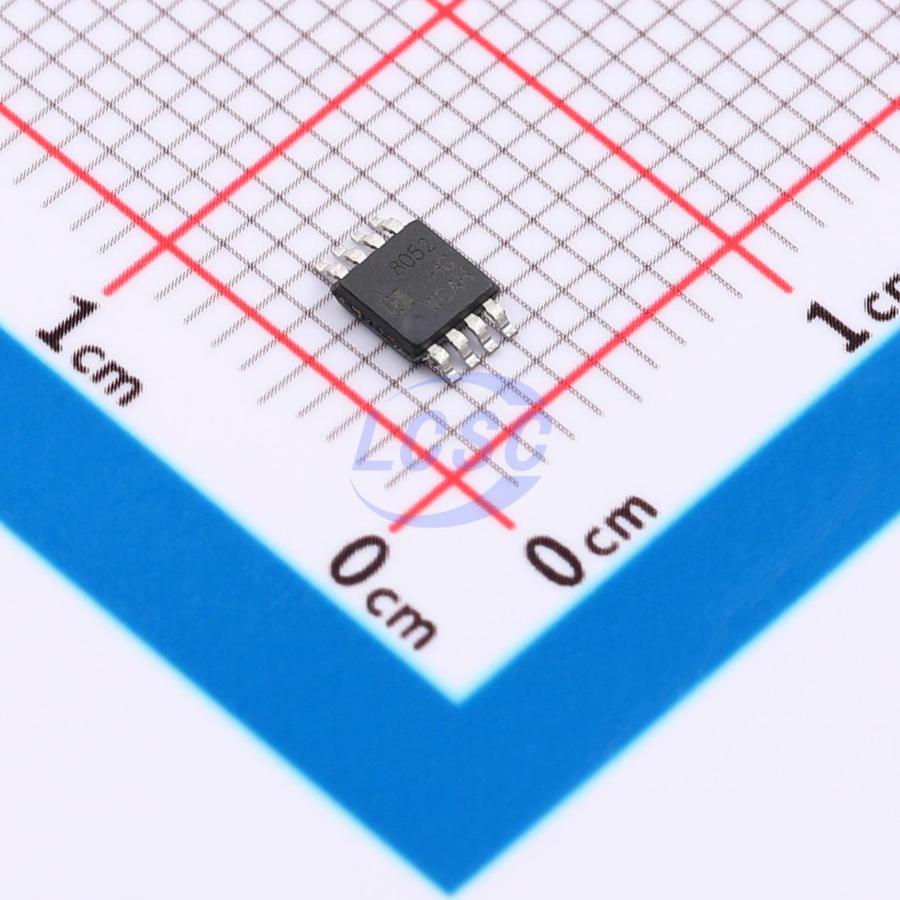

AD8052MM/TR-HG

80mA 2 2mV 1pA 80dB 2.8mA Rail-to-rail output MSOP-8 Instrumentation, Op Amps, Buffer Amps

MSOP-8RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: AD8052MM/TR-HG
Store part #: C53200126
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,709 in stock

#C53200126

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹65.61	₹65.61
10+	₹51.95	₹519.50
30+	₹45.95	₹1,378.50
100+	₹38.70	₹3,870.00
500+	₹35.39	₹17,695.00
1,000+	₹33.33	₹33,330.00

Quantity (min 1)

1 × ₹65.61

₹65.61

excl. GST

₹77.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AD8052MM/TR-HG

₹65.61 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 80mA
Number of Channels: 2
Vos - Input Offset Voltage: 2mV
Input Offset Current(Ios): 2pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 80dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 2.8mA
Features: Enable/shutdown function
Rail to Rail: Rail-to-rail output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.265 g

Overview

The AD8051 (single), AD8052 (dual), and AD8054 (quad) are rail-to-rail output voltage feedback amplifiers offering ease of use and low cost. They deliver the bandwidth and slew rate typically associated with current feedback amplifiers. All versions feature a wide input common-mode voltage range and output voltage swing, making them easy to use on single supplies as low as 2.5V. Despite their low cost, the AD805X family provides excellent overall performance. They offer wide bandwidth up to 250MHz (gain = +1), 0.1dB flatness to 52MHz (gain = +2), and typical supply current as low as 2.8mA/amplifier. The low distortion and fast settling time of the AD805X family make them ideal for buffering high-speed ADCs or DACs. The AD8051 features a power-down disable function that reduces supply current to 50μA. These characteristics make the AD8051/2 well suited for portable and battery-powered applications where size and power consumption are critical. All versions are specified over the extended −40°C to +125°C temperature range.

Applications

Imaging
Filters
Mobile Phones
Base Stations
ADC Drivers

Key features

Single-supply operating range: +2.5V ~ +5.5V
Rail-to-rail output
3dB bandwidth (gain = +1): 250MHz (typical)
Low input bias current: 1pA (typical)
Quiescent current: 2.8mA/amplifier (typical)
Operating temperature range: -40℃ ~ +125℃
Small package: AD8051 available in SOT23-5 and SC70-5; AD8052 available in SOP-8, MSOP-8, and DFN-8; AD8054 available in SOP-14 and TSSOP-14
