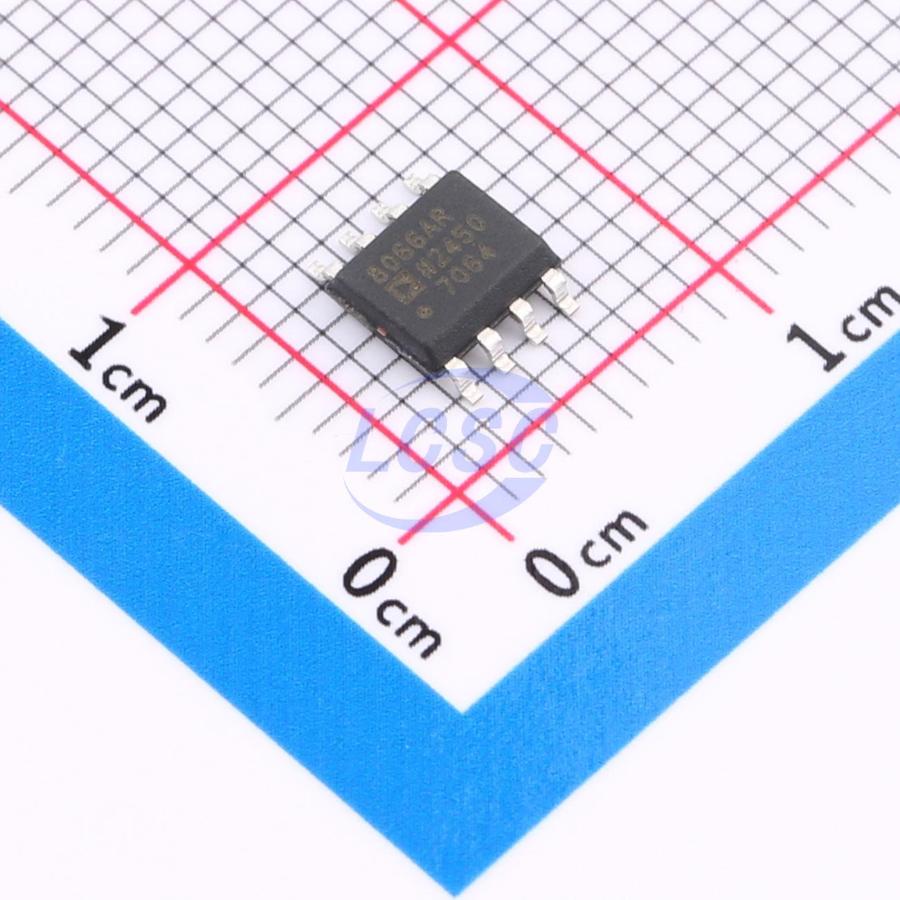

AD8066ARZ-R7

The AD8065/AD8066 FastFET amplifiers are voltage feedback amplifiers featuring FET inputs with excellent performance and ease of use. The AD8065 is a single amplifier, and the AD8066 is a dual amplifier. These amplifiers offer ultralow noise (7.0 nV/√Hz and 0.6 fA/√Hz) and very high input impedance. The AD8065/AD8066 operate over a wide supply voltage range of 5 V to 24 V, support single-supply operation, and provide 145 MHz bandwidth, making them suitable for a wide range of applications. In addition, these amplifiers feature rail-to-rail output, further enhancing their versatility. Despite their low cost, these devices deliver outstanding overall performance. With differential gain and phase errors of 0.02% and 0.02°, respectively, and 0.1 dB flatness to 7 MHz, they are ideal for video applications. These devices also offer a high slew rate of 180 V/μs, excellent distortion performance (SFDR of −88 dBc at 1 MHz), very high common-mode rejection (−100 dB), and low input offset voltage (1.5 mV maximum, warmed up). The AD8065/AD8066 draw only 6.4 mA typical supply current per amplifier while capable of driving load currents up to 30 mA.

Applications

• Automotive driver assistance systems
• Photodiode preamplifier
• Filter
• ADC driver
• Level shifting
• Buffer

Key features

• Automotive-qualified
• FET input amplifier
• Input bias current: 1 pA
• Low cost
• High speed: -3 dB bandwidth: 145 MHz (G = +1)
• Slew rate: 180 V/μs (G = +2)
• Low noise: 7 nV/√Hz (f = 10 kHz); 0.6 fA/√Hz (f = 10 kHz)
• Wide supply voltage range: 5 V to 24 V
• Single-supply, rail-to-rail output
• Low offset voltage: 1.5 mV (maximum)
• High CMRR: -100 dB
• Excellent distortion performance
• Spurious-free dynamic range (SFDR): -88 dBc (1 MHz)
• Low power consumption: supply current: 6.4 mA per amplifier (typical)
• Non-inverting
• Small packages: SOIC-8, SOT-23-5, and MSOP-8
