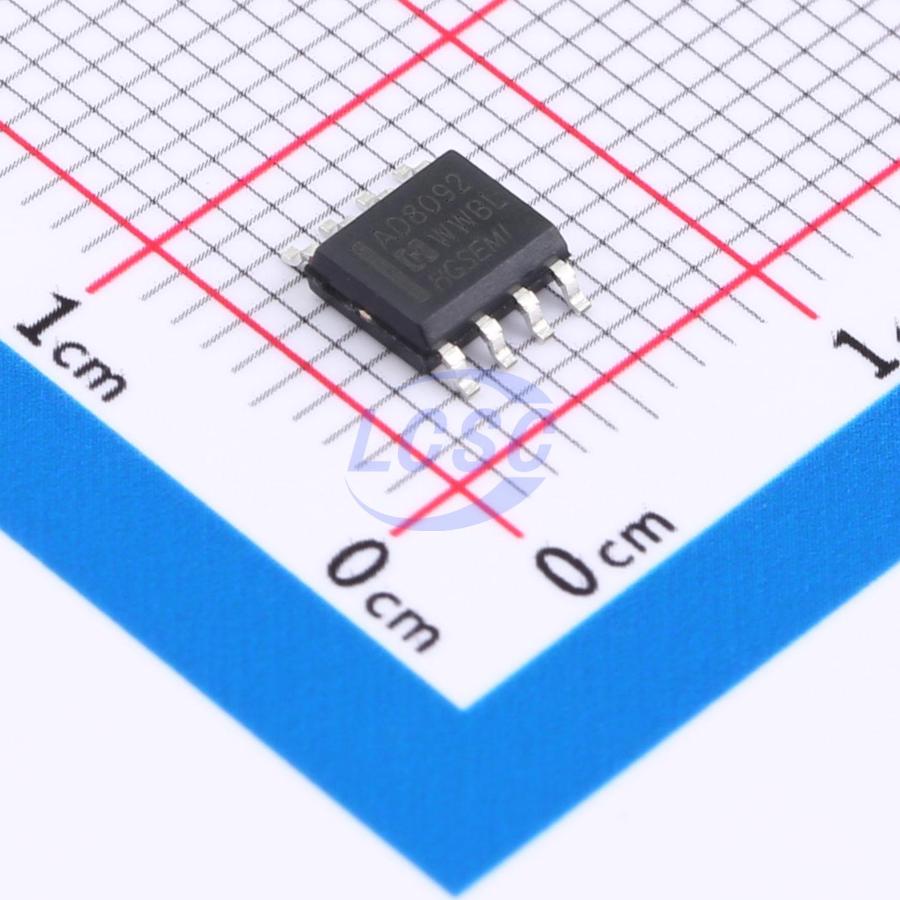

HGSEMI

AD8092M/TR

Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail Output SOP-8

SOP-8RoHSActive

350MHz CMOS Rail-to-Rail Output Opamps

Manufacturer: HGSEMI
Manufacturer part #: AD8092M/TR
Store part #: C49023286
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,138 in stock

#C49023286

Stock & price checked 34 h ago

Quantity	Unit price	Pack price
1+	₹59.32	₹59.32
10+	₹52.59	₹525.90
30+	₹49.33	₹1,479.90
100+	₹45.86	₹4,586.00
500+	₹43.90	₹21,950.00
1,000+	₹43.04	₹43,040.00

Quantity (min 1)

1 × ₹59.32

₹59.32

excl. GST

₹70.00 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

AD8092M/TR

₹59.32 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of Channels: 2
Vos - Input Offset Voltage: 2mV
Input Offset Current(Ios): 2pA
Operating Temperature: -40℃~+85℃
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Gain Bandwidth Product: 350MHz
Quiescent Current: 4.2mA
Features: Built-in compensation
Input Voltage Noise Density: 4.3nV/√Hz@1MHz
Rail to Rail: Rail-to-rail output
Dual Supply: -2.75V~-1.25V;1.25V~2.75V
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.273 g

Overview

The AD8091 (single), AD8092 (dual), and AD8094 (quad) are rail-to-rail output voltage feedback amplifiers featuring ease of use and low cost. They deliver the bandwidth and slew rate typically associated with current feedback amplifiers. All versions offer a wide input common-mode voltage range and output voltage swing, making them easy to use on single supplies as low as 2.5V. Despite their low cost, the AD809X family still delivers excellent overall performance. They provide wide bandwidth up to 350MHz (G = +1), 0.1dB flatness to 58MHz (G = +2), and typical power consumption as low as 4.2mA/amplifier. The low distortion and fast settling characteristics of the AD809X family make them ideal for buffering high-speed ADCs or DACs. All versions are specified over the extended −40°C to +85°C temperature range.

Applications

Imaging
Filters
Handheld Devices
Base Stations
ADC Drivers

Key features

Single-supply operating voltage range: +2.5V ~ +5.5V
Rail-to-rail output
-3dB bandwidth (G = +1): 350MHz (typical)
Low input bias current: 1pA (typical)
Quiescent current: 4.2mA/amplifier (typical)
Operating temperature range: -40℃ ~ +85℃
Small packages: AD8091 available in SOT23-5, SC70-5, SOP-8, and MSOP-8; AD8092 available in SOP-8 and MSOP-8; AD8094 available in SOP-14 and TSSOP-14
