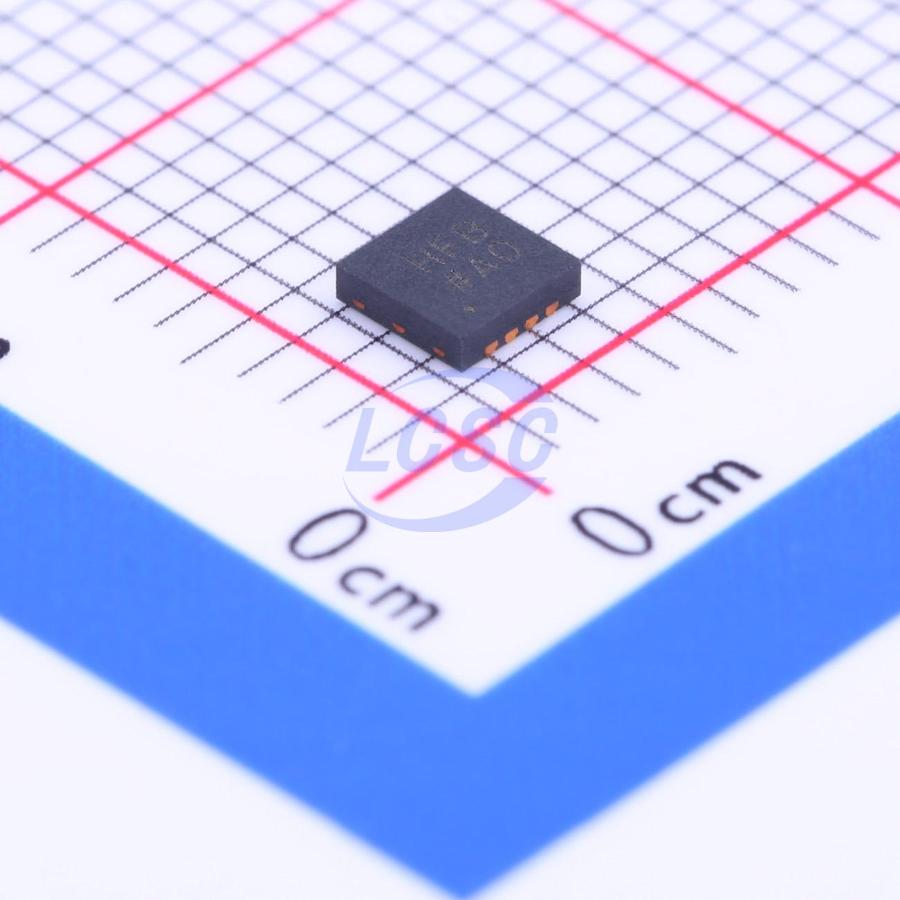

AD8137YCPZ-REEL7

20mA 1 700uV 450V/us 79dB 500nA 2.6mA 110MHz Rail-to-rail output LFCSP-8(3x3) Instrumentation, Op Amps, Buffer Amps RoHS

LFCSP-8(3x3)ROHS3 CompliantActive

Low-cost, low-power differential ADC driver

Manufacturer: ADI
Manufacturer part #: AD8137YCPZ-REEL7
Store part #: C112004
Package / case: LFCSP-8(3x3)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,498 in stock

#C112004

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹1,058.03	₹1,058.03
10+	₹935.26	₹9,352.60
30+	₹860.51	₹25,815.30
100+	₹707.53	₹70,753.00

Quantity (min 1)

1 × ₹1,058.03

₹1,058.03

excl. GST

₹1,248.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,500 per reel

AD8137YCPZ-REEL7

₹1,058.03 for 1 + GST

Specifications

Settling time: 100ns
output type: Differential
Output Current: 20mA
Number of Channels: 1
Vos - Input Offset Voltage: 700uV
Slew Rate: 450V/us
Input Offset Current(Ios): 0.45uA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 79dB
Ib - Input Bias Current: 500nA
Power Supply Rejection Ratio (PSRR): 91dB
Maximum Power Supply Range (Vdd-Vss): 12V
Input Offset Voltage Drift(Vos TC): 3uV/℃
Quiescent Current: 2.6mA
Gain Bandwidth Product: 110MHz
Features: Single-ended to differential conversion;Adjustable output common-mode voltage;Enable/shutdown function;Integrated ADC driver
Dual Supply: -6V~6V
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~12V
Noise density(eN): 8.25nV/√Hz

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.02 g

Overview

The AD8137 is a low cost differential driver that provides rail-to-rail output, making it ideal for driving ADCs in systems requiring low power consumption and low cost. It is easy to use; the internal common-mode feedback architecture allows the output common-mode voltage to be controlled by applying a voltage to a single pin. The internal feedback loop also provides inherently balanced outputs and suppresses even-order harmonic distortion products. Fully differential and single-ended-to-differential gain configurations are easily implemented using the AD8137. An external feedback network of four resistors sets the closed-loop gain of the amplifier. The power-down feature benefits critical low power applications. The AD8137 is fabricated on ADI's proprietary second-generation xFCB process, enabling high performance and extremely low power consumption levels. The AD8137 is available in a small 8-lead SOIC package and a 3 mm×3 mm LFCSP package. It is rated for the -40°C to +125°C industrial temperature range.

Applications

ADC driver
Portable instrumentation
Battery-powered applications
Single-ended to differential converter
Differential active filter
Video amplifier
Level translator
