ADI

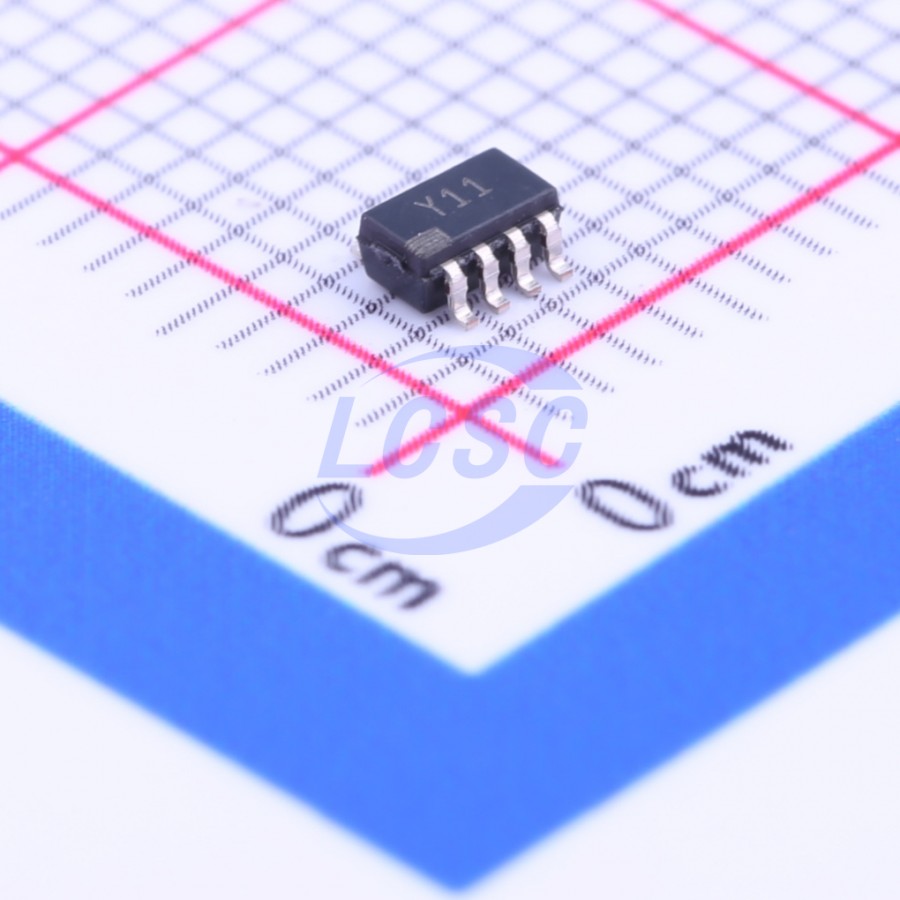

AD8293G160ARJZ-R7

35mA 1 9uV 140dB 400pA 1mA Rail-to-rail output SOT-23-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-8ROHS3 CompliantActive

Low Cost, Zero-Drift In-Amp with Filter and Fixed Gain

Manufacturer: ADI
Manufacturer part #: AD8293G160ARJZ-R7
Store part #: C141950
Package / case: SOT-23-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,853 in stock

#C141950

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹402.88	₹402.88
10+	₹356.38	₹3,563.80
30+	₹327.03	₹9,810.90
100+	₹297.26	₹29,726.00
500+	₹283.80	₹1,41,900.00
1,000+	₹277.92	₹2,77,920.00

Quantity (min 1)

1 × ₹402.88

₹402.88

excl. GST

₹475.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AD8293G160ARJZ-R7

₹402.88 for 1 + GST

Specifications

Settling time: 1.9ms
Output Current: 35mA
Number of Channels: 1
Vos - Input Offset Voltage: 9uV
Input Offset Current(Ios): 4nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 140dB
Ib - Input Bias Current: 400pA
Power Supply Rejection Ratio (PSRR): 120dB
Input Offset Voltage Drift(Vos TC): 20nV/℃
Quiescent Current: 1mA
Features: Internally set gain;Zero drift / auto-zero;Overvoltage protection;ESD protection
Input Voltage Noise Density: 35nV/√Hz@1kHz
Rail to Rail: Rail-to-rail output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.017 g

Overview

The AD8293G80/AD8293G160 are small, low cost, precision instrumentation amplifiers that have low noise and rail-to-rail outputs. They are available in two fixed-gain models: 80 and 160. They incorporate the gain setting resistors and filter resistors, reducing the number of ancillary components. For example, only two external capacitors are needed to implement a 2-pole filter. The AD8293G80/AD8293G160 also feature low offset voltage, offset drift, and gain drift coupled with high commonmode rejection. They are capable of operating on a supply of 1.8 V to 5.5 V. With a low offset voltage of 20 μV (AD8293G160B), an offset voltage drift of 0.3 μV/°C, and a voltage noise of only 0.7 μV p-p (0.01 Hz to 10 Hz), the AD8293G80/AD8293G160 are ideal for applications where error sources cannot be tolerated. Precision instrumentation, position and pressure sensors, medical instrumentation, and strain gauge amplifiers benefit from the low noise, low input bias current, and high commonmode rejection. The small footprint and low cost are ideal for high volume applications. The small package and low power consumption allow the maximum channel density and the minimum board size required for portable systems. Designed for ease of use, these instrumentation amplifiers, unlike more traditional ones, have a buffered reference, eliminating the need for an additional op amp to set the reference voltage to midsupply. The AD8293G80/AD8293G160 are specified over the industrial temperature range from -40°C to +85°C. The AD8293G80/ AD8293G160 are available in a halogen-free, Pb-free, 8-lead SOT-23.
