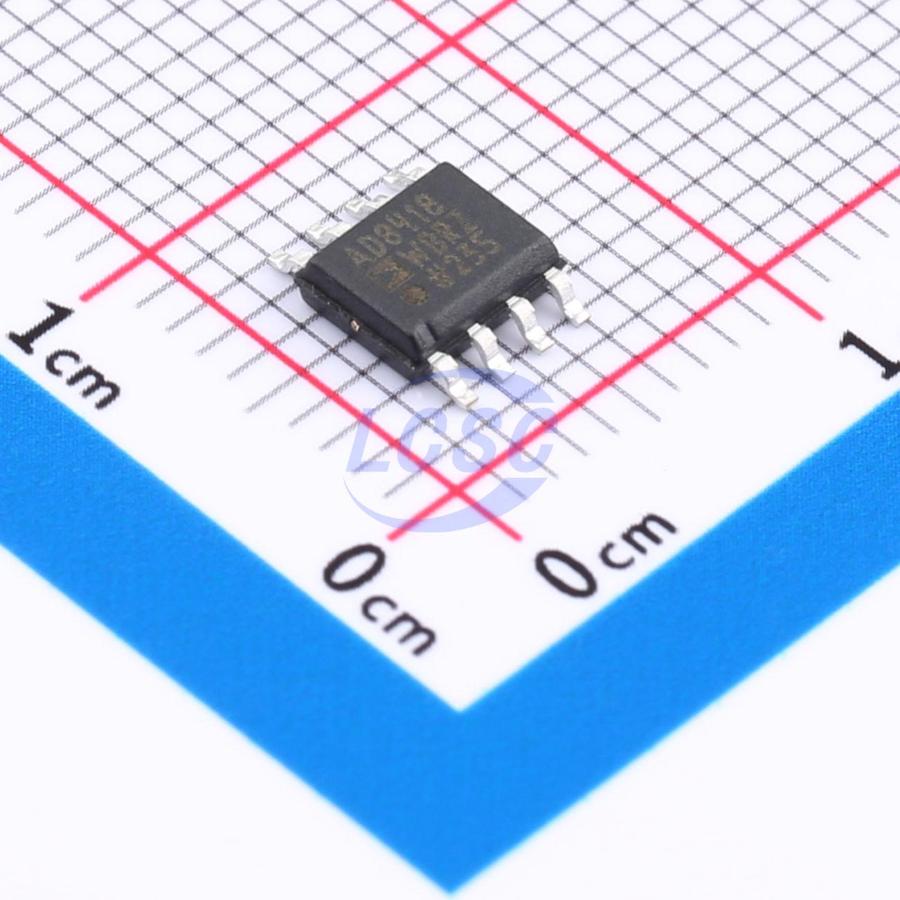

AD8418WBRZ-RL

The AD8418 is a high-voltage, high-resolution current sense amplifier. It features an initial gain of 20 V/V with a maximum gain error of ±0.15% over the full temperature range. The buffered output voltage can connect directly to any typical converter. With input common-mode voltage ranging from -2 V to +70 V, the AD8418 delivers excellent input CMR performance; it supports bidirectional current measurement across a shunt resistor, making it suitable for a wide range of automotive and industrial applications, including motor control, battery management, and solenoid control. The AD8418 delivers excellent performance across the full -40°C to +125°C temperature range. Its zero-drift core provides a typical offset drift of 0.1 μV/°C over the full operating temperature and common-mode voltage range. Fully compliant with automotive application specifications, the AD8418 integrates an EMI filter and patented circuitry to achieve high output accuracy under PWM-type input common-mode voltages. The typical input offset voltage is ±200 μV. The AD8418 is available in 8-lead MSOP and SOIC packages.

Applications

• High-side current sensing
• Motor control
• Solenoid valve control
• Power management
• Low-side current sensing
• Diagnostic protection

Key features

• Offset drift: 0.1 μV/°C (typical)
• Offset voltage: ±400 μV (maximum, full temperature range)
• Supply voltage range: 2.7 V to 5.5 V
• Integrated EMI filter
• High input common-mode voltage range: operating range -2 V to +70 V, withstand range -4 V to +85 V
• Initial gain μ = 20 V/V
• Wide operating temperature range: -40°C to +125°C
• Bidirectional operation
• Available in 8-pin SOIC and 8-pin MSOP packages
• CMRR: 86 dB, DC to 10 kHz
• Automotive qualified
