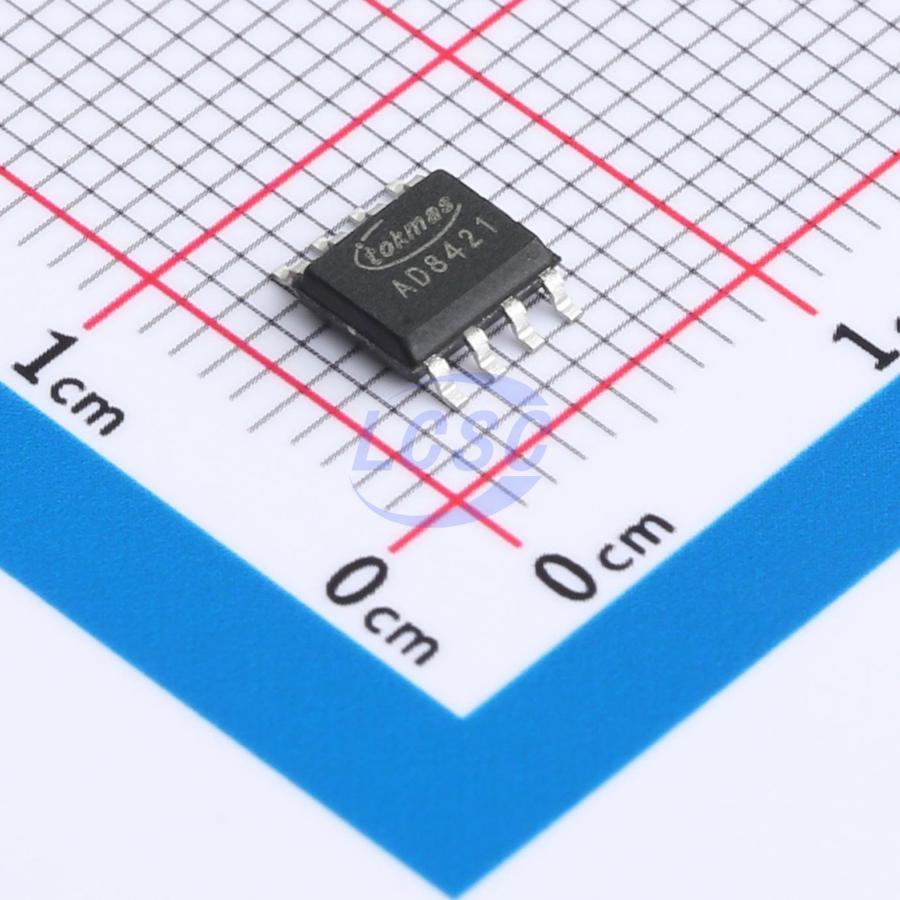

AD8421ARZ-R7(TOKMAS)
90mA 1 25uV 2V/us 120dB 5pA 3.3mA Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS CompliantActive
Precision, low-noise, rail-to-rail output instrumentation amplifier
- Manufacturer
- Tokmas
- Manufacturer part #
- AD8421ARZ-R7(TOKMAS)
- Store part #
- C19184240
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
990 in stock
#C19184240
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹451.05 | ₹451.05 |
| 10+ | ₹392.72 | ₹3,927.20 |
| 30+ | ₹356.14 | ₹10,684.20 |
| 100+ | ₹241.42 | ₹24,142.00 |
| 500+ | ₹224.45 | ₹1,12,225.00 |
| 1,000+ | ₹217.04 | ₹2,17,040.00 |
1 × ₹451.05
₹451.05
excl. GST
₹532.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AD8421ARZ-R7(TOKMAS)
₹451.05 for 1 + GST
Specifications
- Settling time
- 7us
- Output Current
- 90mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 25uV
- Slew Rate
- 2V/us
- Input Offset Current(Ios)
- 20pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Ib - Input Bias Current
- 5pA
- Power Supply Rejection Ratio (PSRR)
- 130dB
- -3dB Bandwidth
- 1.2MHz
- Input Offset Voltage Drift(Vos TC)
- 300nV/℃
- Quiescent Current
- 3.3mA
- Features
- External resistor gain
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Dual Supply
- -18V~-2.4V;2.4V~18V
- Rail to Rail
- Rail-to-rail output
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.118 g
