ADIDatasheet (PDF)
AD8421BRMZ-R7
65mA 1 60uV 35V/us 94dB 2nA 2.3mA MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
MSOP-8ROHS3 CompliantActive

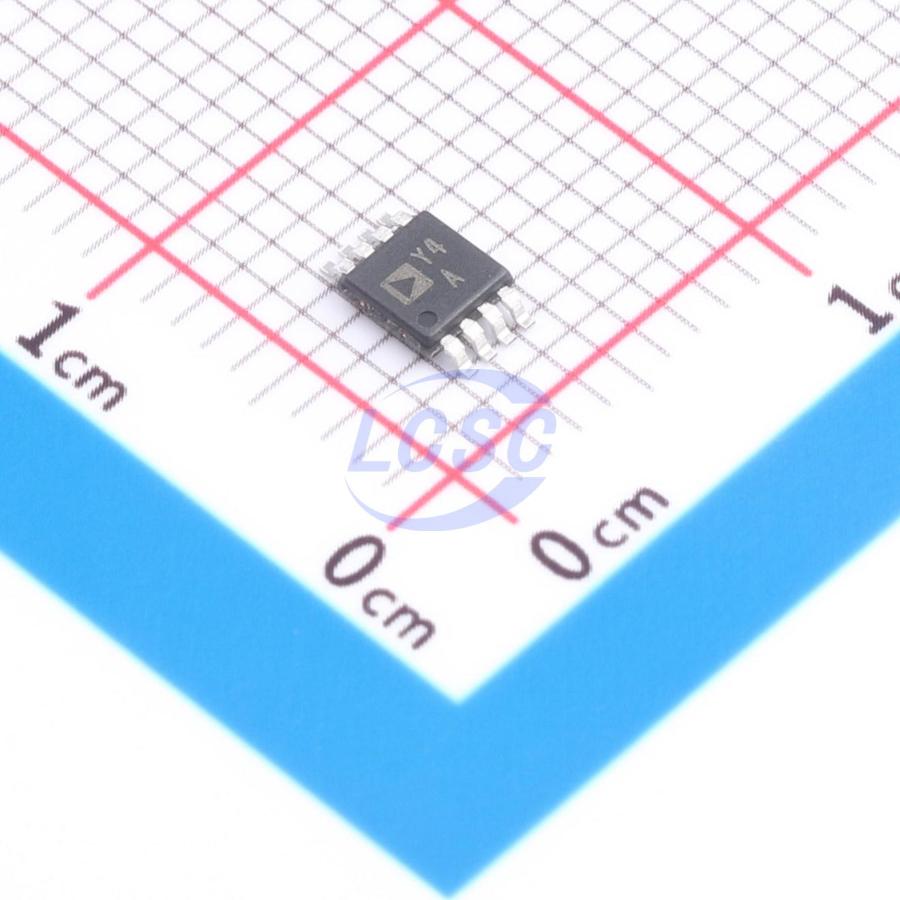

Low-power instrumentation amplifier: AD8421
- Manufacturer
- ADI
- Manufacturer part #
- AD8421BRMZ-R7
- Store part #
- C652813
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
318 in stock
#C652813
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,741.37 | ₹1,741.37 |
| 10+ | ₹1,522.91 | ₹15,229.10 |
| 30+ | ₹1,389.97 | ₹41,699.10 |
| 100+ | ₹1,278.34 | ₹1,27,834.00 |
1 × ₹1,741.37
₹1,741.37
excl. GST
₹2,054.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
AD8421BRMZ-R7
₹1,741.37 for 1 + GST
Specifications
- Settling time
- 1us
- output type
- Push-pull
- Output Current
- 65mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 60uV
- Slew Rate
- 35V/us
- Input Offset Current(Ios)
- 100pA
- Input Offset Current Drift (Ios TC)
- 1pA/℃
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 94dB
- Ib - Input Bias Current
- 2nA
- Power Supply Rejection Ratio (PSRR)
- 120dB
- Input Offset Voltage Drift(Vos TC)
- 400nV/℃
- -3dB Bandwidth
- 10MHz
- Quiescent Current
- 2.3mA
- Features
- External resistor gain;Overvoltage protection;Integrated ADC driver;ESD protection
- Input Voltage Noise Density
- 3.2nV/√Hz@1kHz
- Dual Supply
- -18V~-2.5V;2.5V~18V
- Single Supply
- 5V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.203 g
