UMWDatasheet (PDF)

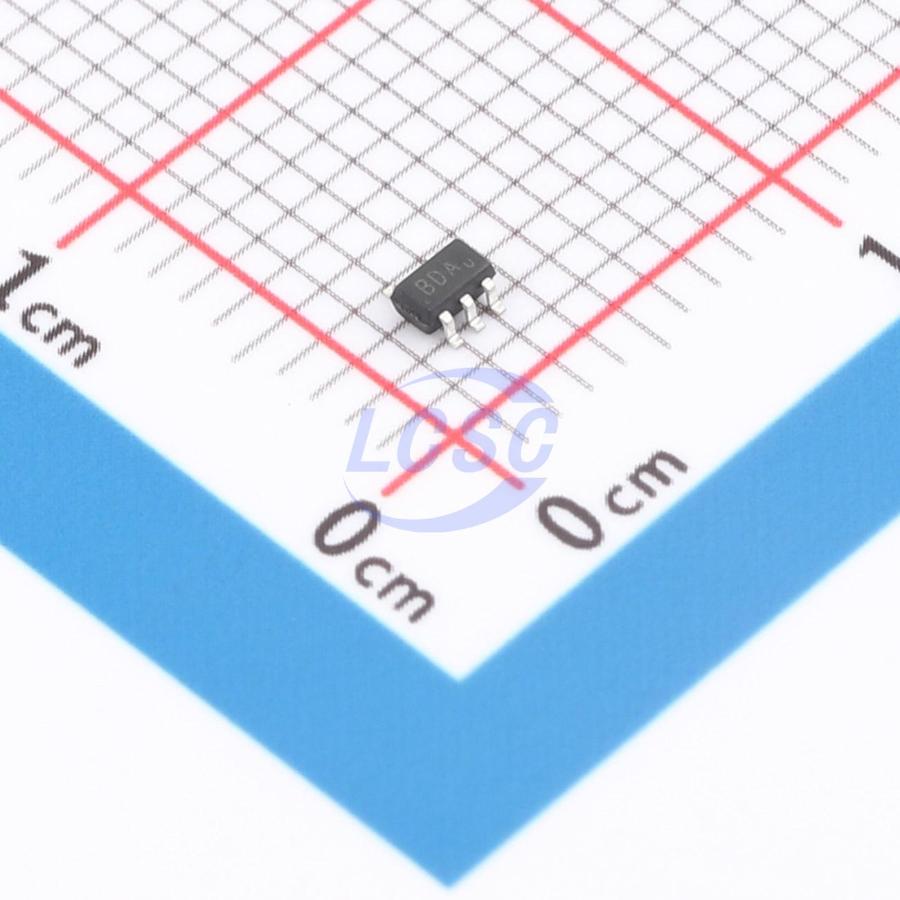

AD8515AKSZ(UMW)
20mA 1 6mV 2.7V/us 50dB 30pA 325uA 5MHz Rail-to-Rail Input, Rail-to-Rail Output SC-70-5 Instrumentation, Op Amps, Buffer Amps
SC-70-5RoHSActive
1.8V Low Power CMOS Rail-to-Rail Input/Output Operational Amplifier
- Manufacturer
- UMW
- Manufacturer part #
- AD8515AKSZ(UMW)
- Store part #
- C29780643
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,645 in stock
#C29780643
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.27 | ₹161.35 |
| 50+ | ₹25.36 | ₹1,268.00 |
| 150+ | ₹22.40 | ₹3,360.00 |
| 500+ | ₹18.69 | ₹9,345.00 |
| 3,000+ | ₹17.05 | ₹51,150.00 |
| 6,000+ | ₹16.06 | ₹96,360.00 |
5 × ₹32.27
₹161.35
excl. GST
₹190.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AD8515AKSZ(UMW)
₹161.35 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 6mV
- Slew Rate
- 2.7V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 50dB
- Ib - Input Bias Current
- 30pA
- Input Offset Voltage Drift(Vos TC)
- 4uV/℃
- Quiescent Current
- 325uA
- Gain Bandwidth Product
- 5MHz
- Input Voltage Noise Density
- 22nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
The AD8515 is a rail-to-rail amplifier that operates from a single supply as low as 1.8 V. This single amplifier is available in 5-lead SOT-23 and 5-lead SC70 packages, offering a compact footprint for placement close to sensors to minimize external noise pickup. The AD8515 is a rail-to-rail input and output amplifier with a gain bandwidth of 5 MHz and a typical offset voltage of 1 mV at a 1.8 V supply. Low supply current makes it ideal for battery-powered applications. A slew rate of 2.7 V/μs makes it well suited for driving ASIC inputs such as voice codecs.
Applications
- Portable communications
- Portable phones
- Sensor interfaces
- Laser scanners
Key features
- Single-supply operation: 1.8V to 5V
- Offset voltage: 6 mV max
- Space-saving SOT23-5 and SC70-5 packages
- Slew rate: 2.7V/μs
- Bandwidth: 5 MHz
- Rail-to-rail input and output swing
- Low input bias current: 2 pA typical
- Low supply current @1.8V: 450 μA max
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV721IDCKR(UMW)#C18207569UMW · SC70-5 | UMW | SC70-5 | 145 | ₹13.81 · 145 in stock | View |
