UMWDatasheet (PDF)

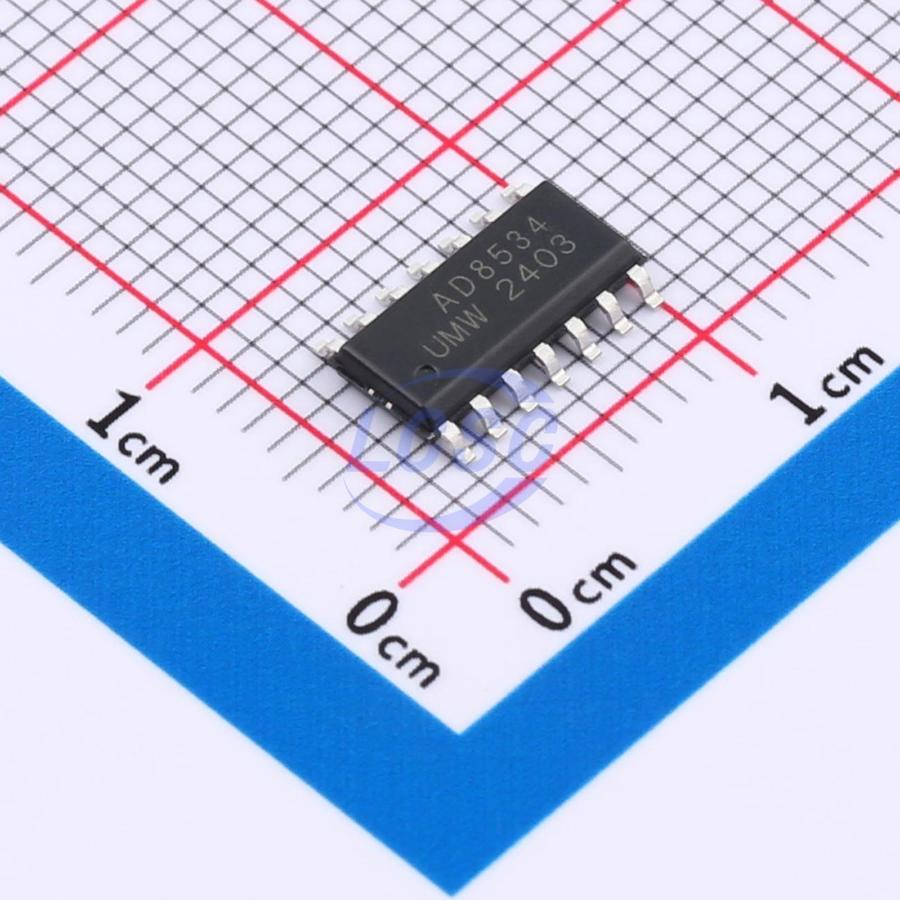

AD8534ARZ(UMW)
250mA 4 25mV 5V/us 5pA 47dB 3MHz 750uA Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-14ROHS CompliantActive
Low Cost, 250 mA Output, Single-Supply Amplifiers
- Manufacturer
- UMW
- Manufacturer part #
- AD8534ARZ(UMW)
- Store part #
- C21713889
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,438 in stock
#C21713889
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.21 | ₹58.21 |
| 10+ | ₹45.10 | ₹451.00 |
| 30+ | ₹39.52 | ₹1,185.60 |
| 100+ | ₹32.65 | ₹3,265.00 |
| 500+ | ₹29.42 | ₹14,710.00 |
| 1,000+ | ₹27.72 | ₹27,720.00 |
1 × ₹58.21
₹58.21
excl. GST
₹68.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AD8534ARZ(UMW)
₹58.21 for 1 + GST
Specifications
- Output Current
- 250mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 25mV
- Slew Rate
- 5V/us
- Input Offset Current(Ios)
- 25pA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 5pA
- Common Mode Rejection Ratio(CMRR)
- 47dB
- Input Offset Voltage Drift(Vos TC)
- 20uV/℃
- Gain Bandwidth Product
- 3MHz
- Quiescent Current
- 750uA
- Input Voltage Noise Density
- 45nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~6V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.288 g
Overview
AD8531, AD8532, and AD8534 are single, dual, and quad rail-to-rail input/output single-supply amplifiers with 250 mA output drive current. The high output current makes them ideal for driving resistive or capacitive loads. AC performance is excellent, with 3 MHz bandwidth, 5 V/μs slew rate, and low distortion. All devices are guaranteed to operate from a 3 V single supply as well as a 5 V supply.
Applications
- Multimedia audio
- LCD driver
Key features
- Single-supply operation: 2.7V to 6V
- High output current: ±250 mA
- Low supply current: 750 μA/amplifier
- Wide bandwidth: 3 MHz
- Slew rate: 5 V/μs
- No phase reversal
- Low input current
- Unity-gain stable
- Rail-to-rail input and output
