UMW

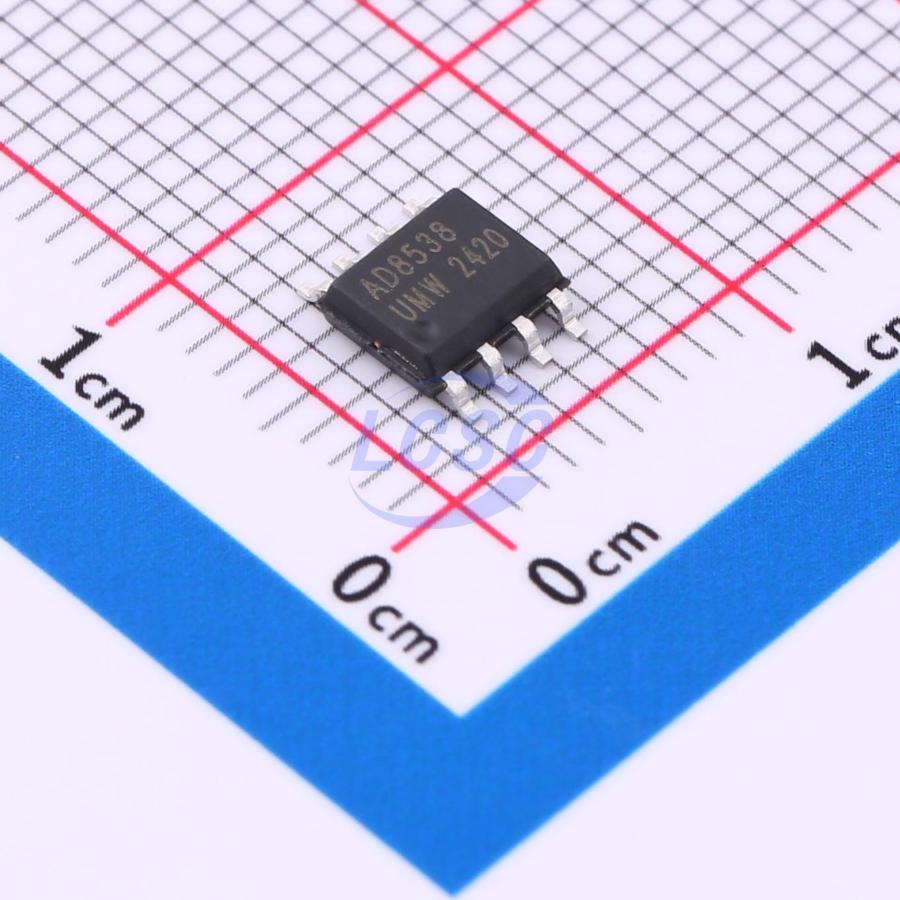

AD8538ARZ(UMW)

25mA 1 30uV 0.4V/us 135dB 25pA 430kHz 215uA SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-8ROHS CompliantActive

Low Power, Precision, Auto-Zero Op Amps

Manufacturer: UMW
Manufacturer part #: AD8538ARZ(UMW)
Store part #: C22469444
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,495 in stock

#C22469444

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹35.48	₹177.40
50+	₹31.01	₹1,550.50
150+	₹29.08	₹4,362.00
500+	₹26.68	₹13,340.00
2,500+	₹25.63	₹64,075.00
5,000+	₹24.98	₹1,24,900.00

Quantity (min 5, multiples of 5)

5 × ₹35.48

₹177.40

excl. GST

₹209.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

AD8538ARZ(UMW)

₹177.40 for 5 + GST

Specifications

Output Current: 25mA
Number of Channels: 1
Vos - Input Offset Voltage: 30uV
Slew Rate: 0.4V/us
Input Offset Current(Ios): 20pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 135dB
Ib - Input Bias Current: 25pA
Input Offset Voltage Drift(Vos TC): 100nV/℃
Gain Bandwidth Product: 430kHz
Quiescent Current: 215uA
Features: Reverse-phase input protection
Input Voltage Noise Density: 50nV/√Hz@1kHz
Dual Supply: -2.5V~-1.35V;1.35V~2.5V
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.209 g

Overview

UMW AD8538/AD8539 are ultra-high precision amplifiers featuring extremely low offset voltage, low input bias current, and low power consumption. At a 5.0V supply voltage, the maximum supply current per amplifier is below 215μA. The operating voltage range is fully specified for 2.7V to 5.0V single supply (±1.35V to ±2.5V dual supply). The AD8538/AD8539 operate at ultra-low power consumption, making them ideal for battery-powered and portable devices. The devices are specified over the extended industrial temperature range of -40℃ to +125℃.
