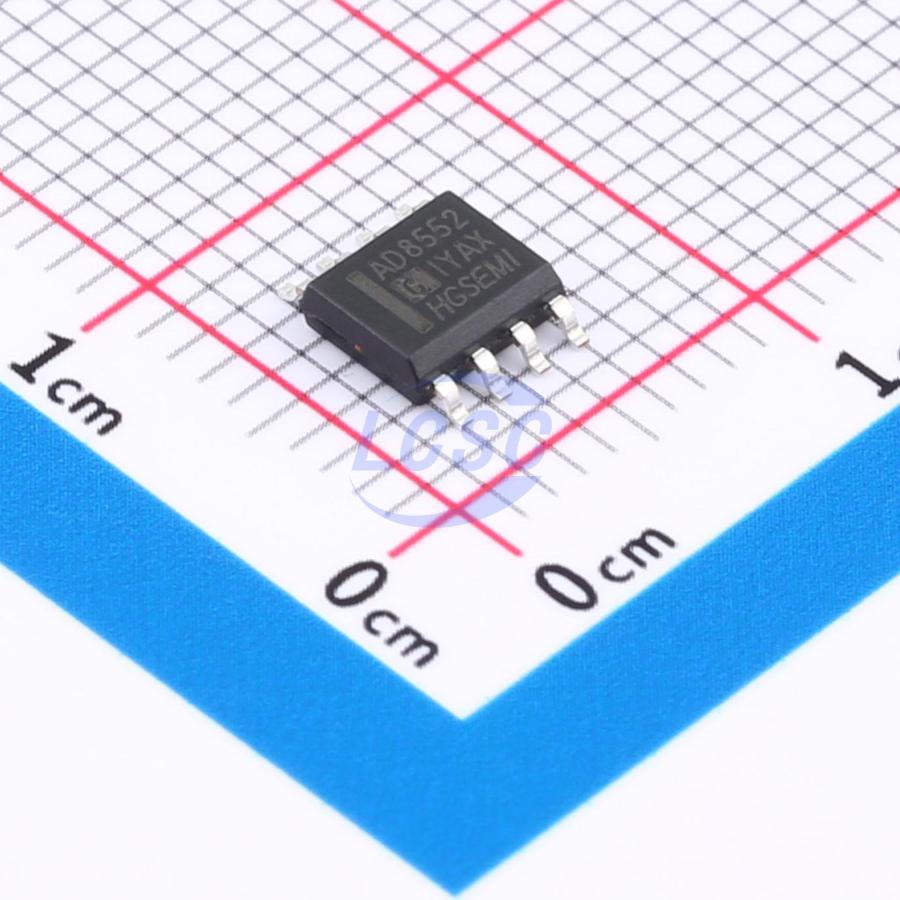

AD8552M/TR

65mA 5uV 0.95V/us 20pA 110dB 1.8MHz 180uA Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

1.8MHz Zero-Drift CMOS Rail IO Opamp

Manufacturer: HGSEMI
Manufacturer part #: AD8552M/TR
Store part #: C356702
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,240 in stock

#C356702

Stock & price checked 19 h ago

Quantity	Unit price	Pack price
1+	₹68.72	₹68.72
10+	₹54.36	₹543.60
30+	₹48.28	₹1,448.40
100+	₹40.67	₹4,067.00
500+	₹33.50	₹16,750.00
1,000+	₹31.54	₹31,540.00

Quantity (min 1)

1 × ₹68.72

₹68.72

excl. GST

₹81.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

AD8552M/TR

₹68.72 for 1 + GST

Specifications

Output Current: 65mA
Vos - Input Offset Voltage: 5uV
Slew Rate: 0.95V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+85℃
Ib - Input Bias Current: 20pA
Common Mode Rejection Ratio(CMRR): 110dB
Input Offset Voltage Drift(Vos TC): 10nV/℃
Gain Bandwidth Product: 1.8MHz
Quiescent Current: 180uA
Features: Zero drift / auto-zero;EMI filtering/RF suppression
Dual Supply: -2.75V~-900mV;900mV~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.19 g
