ADIDatasheet (PDF)

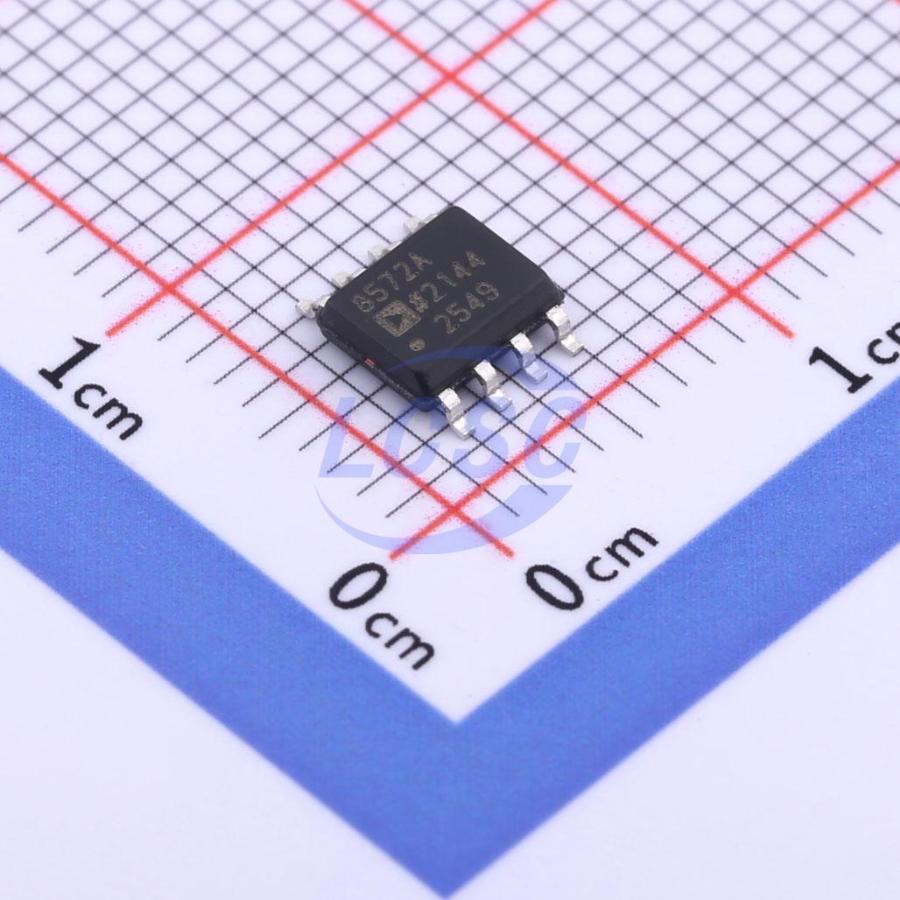

AD8572ARZ-REEL7
30mA 2 1uV 0.4V/us 140dB 160pA 1.5MHz 750uA Rail-to-Rail Input, Rail-to-Rail Output SOIC-8-150mil Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8-150milROHS3 CompliantActive
Zero-Drift, Single-Supply, Rail-to-Rail Input/Output Operational Amplifiers
- Manufacturer
- ADI
- Manufacturer part #
- AD8572ARZ-REEL7
- Store part #
- C23467
- Package / case
- SOIC-8-150mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,914 in stock
#C23467
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹761.45 | ₹761.45 |
| 10+ | ₹672.14 | ₹6,721.40 |
| 30+ | ₹573.27 | ₹17,198.10 |
| 100+ | ₹519.49 | ₹51,949.00 |
| 500+ | ₹494.78 | ₹2,47,390.00 |
| 1,000+ | ₹483.72 | ₹4,83,720.00 |
1 × ₹761.45
₹761.45
excl. GST
₹898.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
AD8572ARZ-REEL7
₹761.45 for 1 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 1uV
- Slew Rate
- 0.4V/us
- Input Offset Current(Ios)
- 150pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 140dB
- Ib - Input Bias Current
- 160pA
- Input Offset Voltage Drift(Vos TC)
- 5nV/℃
- Gain Bandwidth Product
- 1.5MHz
- Quiescent Current
- 750uA
- Features
- Zero drift / auto-zero
- Input Voltage Noise Density
- 51nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.312 g
Overview
This family of amplifiers has ultralow offset, drift, and bias current. The AD8571, AD8572, and AD8574 are single, dual, and quad amplifiers, respectively, featuring rail-to-rail input and output swings. All are guaranteed to operate from 2.7 V to 5 V single supply. The AD857x family provides benefits previously found only in expensive auto-zeroing or chopper-stabilized amplifiers. Using Analog Devices, Inc., topology, these zero-drift amplifiers combine low cost with high accuracy. (No external capacitors are required.) Using a patented spread-spectrum, auto-zero technique, the AD857x family eliminates the intermodulation effects from interaction of the chopping function with the signal frequency in ac applications. With an offset voltage of only 1 μV and drift of 0.005 μV/°C, the AD857x family is perfectly suited for applications where error sources cannot be tolerated. Position and pressure sensors, medical equipment, and strain gage amplifiers benefit greatly from nearly zero drift over their operating temperature range. Many more systems require the rail-to-rail input and output swings provided by the AD857x family. The AD857x family is specified for the extended industrial/ automotive temperature range ( -40°C to +125°C). The AD8571 single amplifier is available in 8-lead MSOP and narrow SOIC packages. The AD8572 dual amplifier is available in 8-lead narrow SOIC and surface-mount TSSOP packages. The AD8574 quad amplifier is available in 14-lead narrow SOIC and TSSOP packages.
Applications
- Temperature sensors
- Pressure sensors
- Precision current sensing
- Strain gage amplifiers
- Medical instrumentation
- Thermocouple amplifiers
Key features
- Low offset voltage: 1 μV
- Input offset drift: 0.005 μV/°C
- Rail-to-rail input and output swing
- 5 V/2.7 V single-supply operation
- High gain: 145 dB typical
- CMRR: 140 dB typical
- PSRR: 130 dB typical
- Ultralow input bias current: 10 pA typical
- Low supply current: 750 μA per op amp
- Overload recovery time: so μs
- No external capacitors required
