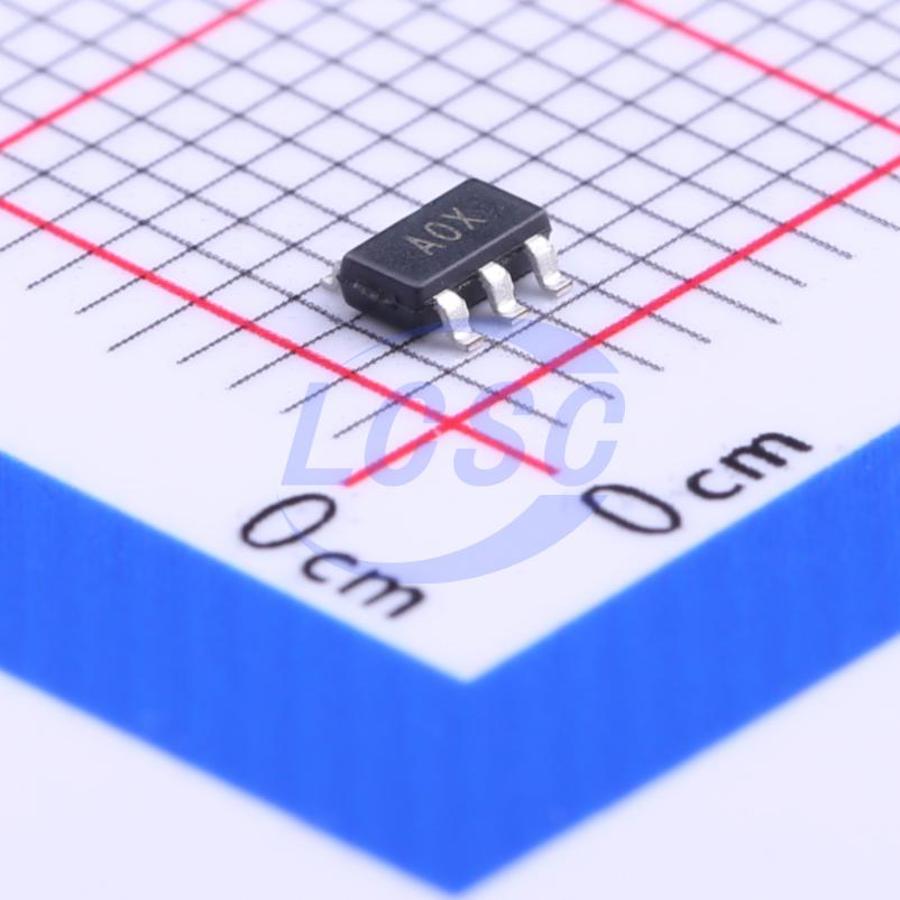

AD8603AUJZ-REEL7

70mA 1 50uV 0.1V/us 100dB 0.2pA 50uA 400kHz Rail-to-Rail Input, Rail-to-Rail Output TSOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

TSOT-23-5ROHS3 CompliantActive

Precision, micropower, low-noise, CMOS, rail-to-rail input/output operational amplifier

Manufacturer: ADI
Manufacturer part #: AD8603AUJZ-REEL7
Store part #: C14937
Package / case: TSOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,900 in stock

#C14937

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹238.07	₹238.07
10+	₹204.03	₹2,040.30
30+	₹182.56	₹5,476.80
100+	₹160.67	₹16,067.00
500+	₹143.11	₹71,555.00
1,000+	₹138.77	₹1,38,770.00

Quantity (min 1)

1 × ₹238.07

₹238.07

excl. GST

₹280.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AD8603AUJZ-REEL7

₹238.07 for 1 + GST

Specifications

Output Current: 70mA
Number of Channels: 1
Vos - Input Offset Voltage: 50uV
Slew Rate: 0.1V/us
Input Offset Current(Ios): 0.5pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 0.2pA
Input Offset Voltage Drift(Vos TC): 1uV/℃
Quiescent Current: 50uA
Gain Bandwidth Product: 400kHz
Features: Reverse-phase input protection;Overvoltage protection;Built-in compensation
Input Voltage Noise Density: 22nV/√Hz@10kHz
Dual Supply: -2.5V~-900mV;900mV~2.5V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.045 g

Overview

The AD8603/AD8607/AD8609 are single/dual/quad, micropower, rail-to-rail input and output amplifiers featuring ultralow offset voltage, low input voltage noise, and low current noise. These amplifiers employ a patented trimming technique that achieves excellent accuracy without laser trimming. All three devices operate from a 1.8 V to 5.0 V single supply or ±0.9 V to ±2.5 V dual supplies. The combination of low offset, low noise, ultralow input bias current, and low power consumption makes the AD8603/AD8607/AD8609 ideally suited for portable and loop-powered instrumentation applications. Rail-to-rail swing capability at both input and output enables designers to buffer CMOS ADCs, DACs, ASICs, and other wide output swing devices in low power, single-supply systems.

Applications

Battery-powered instrumentation
Multi-pole filters
Sensors
Low-power ASIC input/output amplifiers

Key features

Low offset voltage: 50 μV (max)
Low input bias current: 1 pA (max)
Single-supply operation: 1.8 V to 5 V
Low noise: 22 nV/√Hz
Micropower: 50 μA (max)
Low distortion
No phase reversal
Unity-gain stable
