UMWDatasheet (PDF)

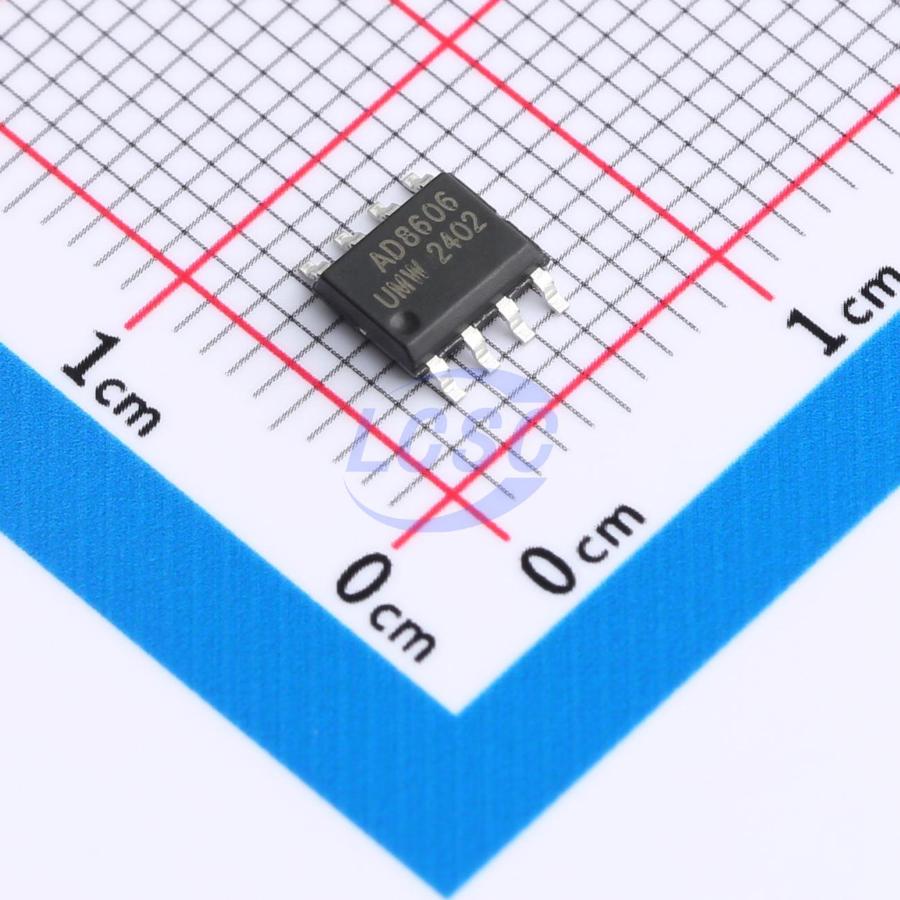

AD8606ARZ(UMW)
80mA 20uV 5V/us 90dB 1pA 1mA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
Precision, low-noise, CMOS, rail-to-rail input/output operational amplifier
- Manufacturer
- UMW
- Manufacturer part #
- AD8606ARZ(UMW)
- Store part #
- C22365308
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,450 in stock
#C22365308
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.59 | ₹192.95 |
| 50+ | ₹30.05 | ₹1,502.50 |
| 150+ | ₹26.39 | ₹3,958.50 |
| 500+ | ₹21.82 | ₹10,910.00 |
| 2,500+ | ₹19.79 | ₹49,475.00 |
| 5,000+ | ₹18.57 | ₹92,850.00 |
5 × ₹38.59
₹192.95
excl. GST
₹227.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AD8606ARZ(UMW)
₹192.95 for 5 + GST
Specifications
- Output Current
- 80mA
- Vos - Input Offset Voltage
- 20uV
- Slew Rate
- 5V/us
- Input Offset Current(Ios)
- 0.1pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 6uV/℃
- Quiescent Current
- 1mA
- Gain Bandwidth Product
- 10MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.186 g
Overview
The AD8606 is available in single, dual, and quad configurations featuring rail-to-rail input and output, single-supply amplifiers with ultralow offset voltage, low input voltage and current noise, and wide signal bandwidth. The combination of low offset, low noise, ultralow input bias current, and high-speed characteristics makes these amplifiers suitable for a wide range of applications. Filters, integrators, photodiode amplifiers, and high-impedance sensors can all benefit from this combination of features. Wide bandwidth and low distortion characteristics are advantageous for audio and other AC applications. Specific applications include optical control loops, portable and loop-powered instrumentation, and audio amplification in portable devices. The AD8606 is rated for the −40°C to +125°C extended industrial temperature range.
Applications
- Photodiode amplification
- Battery-powered instrumentation
- Multi-pole filters
- Sensors
- Barcode scanners
- Audio
Key features
- Low offset voltage: 65 μV (max)
- Low input bias current: 1 pA (max)
- Low noise: 8 nV/√Hz
- Wide bandwidth: 10 MHz
- High open-loop gain: 1000 V/mV
- Unity-gain stable
- Single-supply operation: 2.7 V to 5.5 V
