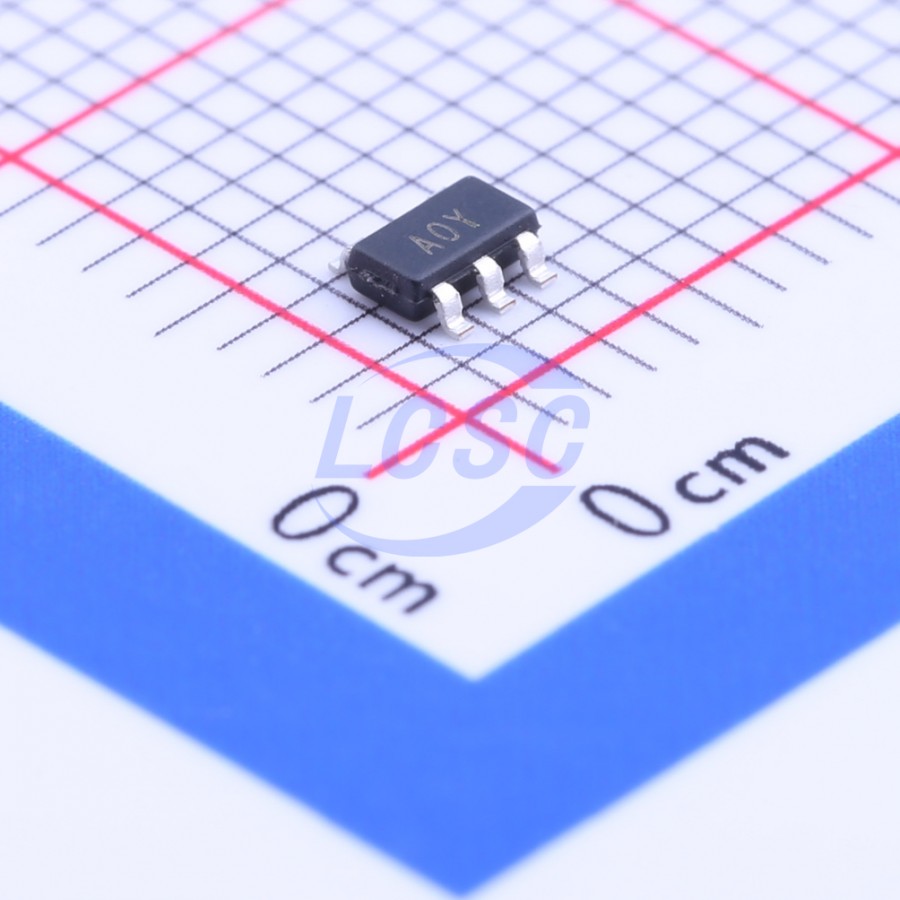

AD8613AUJZ-REEL7

80mA 1 2.2mV 100V/ms 95dB 0.2pA 38uA 400kHz Rail-to-Rail Input, Rail-to-Rail Output TSOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

TSOT-23-5ROHS3 CompliantActive

Low Cost Micropower, Low Noise CMoS Rail-to-Rail, Input/Output Operational Amplifiers

Manufacturer: ADI
Manufacturer part #: AD8613AUJZ-REEL7
Store part #: C208044
Package / case: TSOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,606 in stock

#C208044

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹180.30	₹180.30
10+	₹147.49	₹1,474.90
30+	₹129.47	₹3,884.10
100+	₹109.04	₹10,904.00
500+	₹99.93	₹49,965.00
1,000+	₹95.80	₹95,800.00

Quantity (min 1)

1 × ₹180.30

₹180.30

excl. GST

₹212.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AD8613AUJZ-REEL7

₹180.30 for 1 + GST

Specifications

Output Current: 80mA
Number of Channels: 1
Vos - Input Offset Voltage: 2.2mV
Slew Rate: 100V/ms
Input Offset Current(Ios): 50pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 95dB
Ib - Input Bias Current: 0.2pA
Input Offset Voltage Drift(Vos TC): 7uV/℃
Quiescent Current: 38uA
Gain Bandwidth Product: 400kHz
Features: Built-in compensation
Input Voltage Noise Density: 22nV/√Hz@10kHz
Dual Supply: -2.5V~2.5V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.045 g

Overview

The AD8613/AD8617/AD8619 are single, dual, and quad micropower, rail-to-rail input and output amplifiers that feature low supply current, as well as low input voltage and current noise. The parts are fully specified to operate from 1.8 V to 5 V single supply, or ±0.9 V and ±2.5 V dual supply. The combination of low noise, very low input bias currents, and low power consumption make the AD8613/AD8617/AD8619 especially useful in portable and loop-powered instrumentation. The ability to swing rail-to-rail at both the input and output enables designers to buffer CMOS ADCs, DACs, ASICs, and other wide output swing devices in low power, single-supply systems.

Applications

Battery-powered instrumentation
Multipole filters
Current shunt sense
Sensors
ADC predrivers
DAC drivers/level shifters
Low power ASIC input or output amplifiers

Key features

Offset voltage: 2.2 mV maximum
Low input bias current: 1 pA maximum
Single-supply operation: 1.8 V to 5.5 V
Low noise: 22 nV/√Hz
Micropower: 50 μA amplifier maximum over temperature
No phase reversal
Unity gain stable
Qualified for automotive applications
