ADI

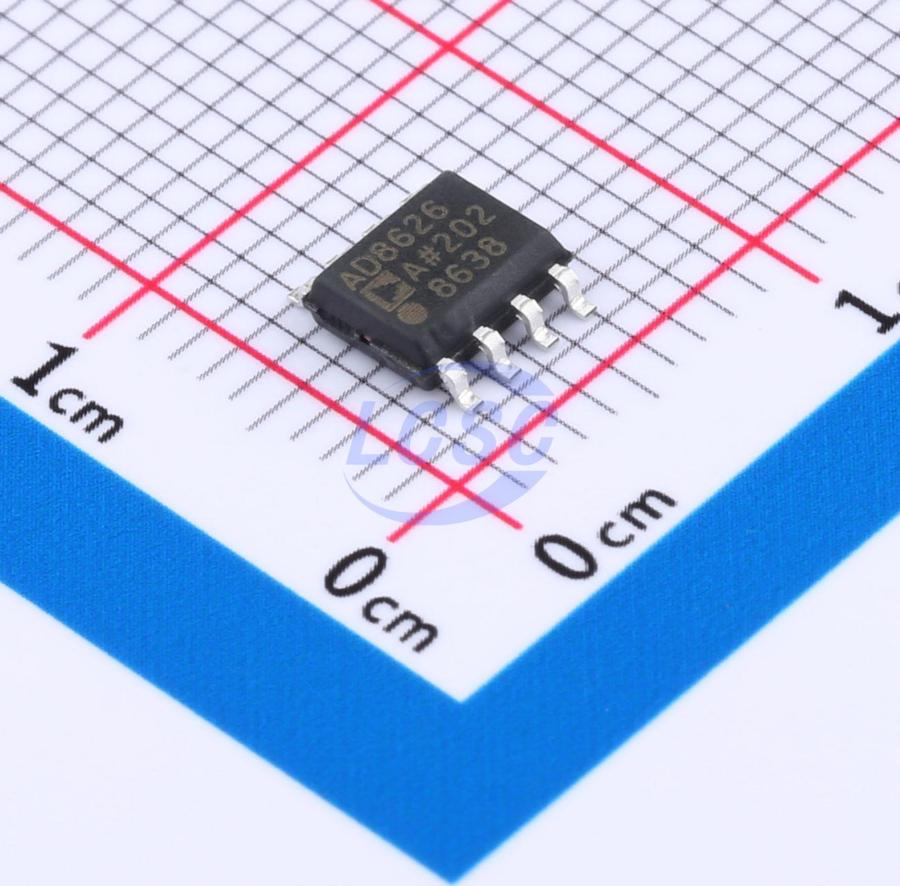

AD8626ARZ-REEL

10mA 2 500uV 5V/us 87dB 1pA 630uA 5MHz Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

Single-Supply JFET Amplifiers

Manufacturer: ADI
Manufacturer part #: AD8626ARZ-REEL
Store part #: C653034
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,732 in stock

#C653034

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹1,248.53	₹1,248.53
10+	₹1,074.90	₹10,749.00
30+	₹878.84	₹26,365.20
100+	₹790.07	₹79,007.00

Quantity (min 1)

1 × ₹1,248.53

₹1,248.53

excl. GST

₹1,473.27 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

AD8626ARZ-REEL

₹1,248.53 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 10mA
Number of Channels: 2
Vos - Input Offset Voltage: 500uV
Slew Rate: 5V/us
Input Offset Current(Ios): 0.5pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 87dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2.5uV/℃
Quiescent Current: 630uA
Gain Bandwidth Product: 5MHz
Features: Built-in compensation;High capacitive load driving
Input Voltage Noise Density: 17.5nV/√Hz@1kHz
Dual Supply: -13V~-2.5V;2.5V~13V
Rail to Rail: Rail-to-rail output
Single Supply: 5V~26V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.12 g

Overview

The AD862x is a precision JFET input amplifier. It features true single-supply operation, low power consumption, and rail-to-rail output. The outputs remain stable with capacitive loads of over 500 pF; the supply current is less than 630 μA/amp. Applications for the AD862x include photodiode transimpedance amplification, ATE reference level drivers, battery management, both line powered and portable instrumentation, and remote sensor signal conditioning, which includes automotive sensors. The AD862x’s ability to swing nearly rail-to-rail at the input and rail-to-rail at the output enables it to be used to buffer CMOS DACs, ASICs, and other wide output swing devices in single-supply systems. The 5 MHz bandwidth and low offset are ideal for precision filters. The AD862x is fully specified over the industrial temperature range (-40°C to +85°C). The AD8627 is available in both 5-lead SC70 and 8-lead SOIC surface-mount packages (SC70 packaged parts are available in tape and reel only). The AD8626 is available in MSOP and SOIC packages, while the AD8625 is available in TSSOP and SOIC packages.
