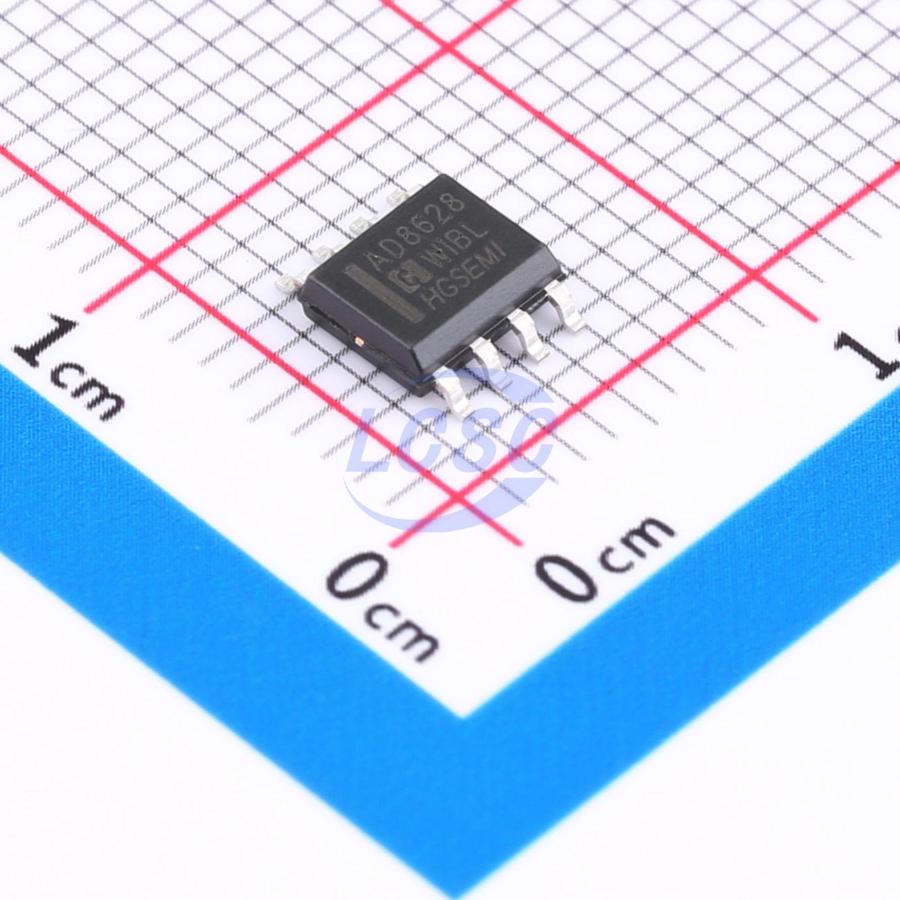

AD8628M/TR

30mA 1 1uV 2.5V/us 110dB 20pA 550uA 4.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

4.5MHz Zero-Drift CMOS Rail-to-Rail IO Opamp with RF Filter

Manufacturer: HGSEMI
Manufacturer part #: AD8628M/TR
Store part #: C47411541
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,367 in stock

#C47411541

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹39.52	₹39.52
10+	₹34.54	₹345.40
30+	₹32.39	₹971.70
100+	₹29.58	₹2,958.00
500+	₹28.50	₹14,250.00
1,000+	₹27.86	₹27,860.00

Quantity (min 1)

1 × ₹39.52

₹39.52

excl. GST

₹46.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

AD8628M/TR

₹39.52 for 1 + GST

Specifications

Output Current: 30mA
Number of Channels: 1
Vos - Input Offset Voltage: 1uV
Slew Rate: 2.5V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -45℃~+125℃
Common Mode Rejection Ratio(CMRR): 110dB
Ib - Input Bias Current: 20pA
Input Offset Voltage Drift(Vos TC): 10nV/℃
Quiescent Current: 550uA
Gain Bandwidth Product: 4.5MHz
Features: Zero drift / auto-zero;EMI filtering/RF suppression
Input Voltage Noise Density: 30nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-900mV;900mV~2.75V
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.267 g

Overview

This amplifier series consists of single/dual/quad, micropower, zero-drift CMOS op-amps offering 4.5MHz bandwidth, rail-to-rail input and output, and single-supply operation from 1.8V to 5.5V. Using chopper stabilization technology, they deliver ultralow offset voltage (maximum less than 30µV) and near-zero temperature drift. The low quiescent supply current of 550µA per amplifier and extremely low input bias current of 20pA make them ideal for low offset, low power, and high impedance applications. This series provides excellent common-mode rejection ratio without the crossover distortion associated with conventional complementary input stages. This design enables superior performance when driving ADCs without degrading differential linearity. The AD8628 is available in SOT23-5, SC70-5, and SOP-8 packages. The AD8629 is available in MSOP-8, DFN-8, and SOP-8 packages. The AD8630 quad amplifier is available in RoHS-compliant SOP-14, TSSOP-14, and QFN-16 packages. The extended operating temperature range of −45°C to +125°C at all supply voltages provides additional design flexibility.
