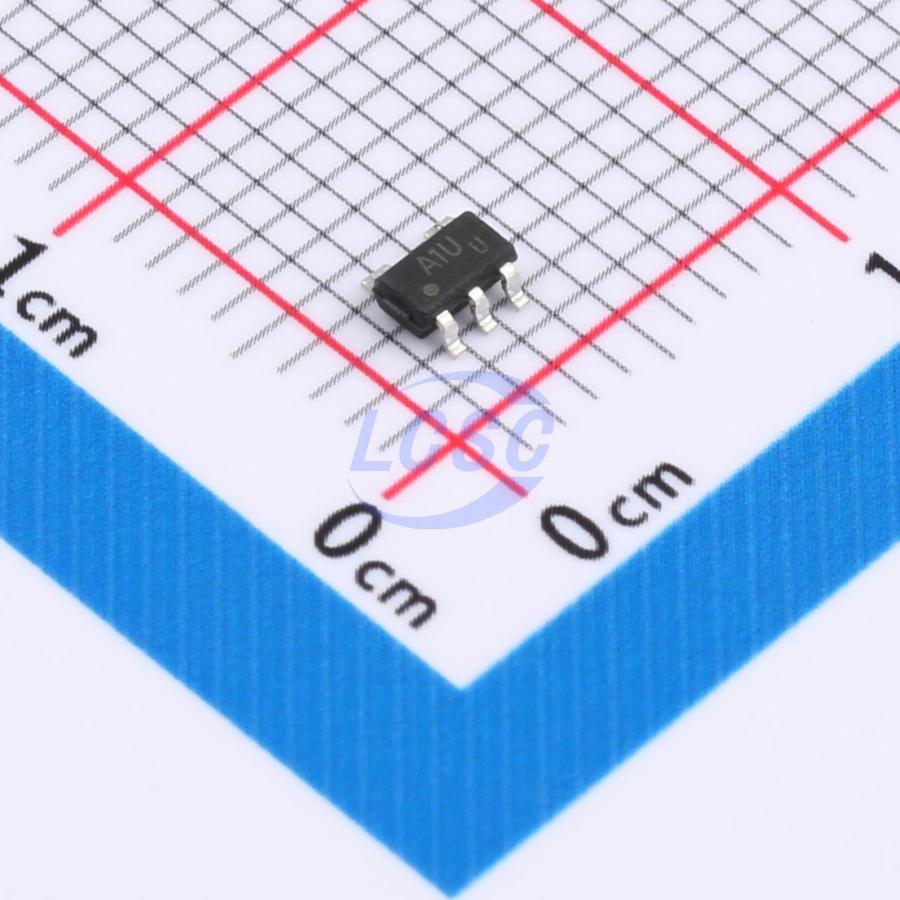

AD8631ARTZ(UMW)

40mA 1 4.2mV 4V/us 1pA 84dB 6.5MHz 480uA Rail-to-Rail Input, Rail-to-Rail Output SOT23-5 Instrumentation, Op Amps, Buffer Amps

SOT23-5RoHSActive

RRIO CMOS Operational Amplifiers

Manufacturer: UMW
Manufacturer part #: AD8631ARTZ(UMW)
Store part #: C18207559
Package / case: SOT23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,970 in stock

#C18207559

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹22.52	₹112.60
50+	₹17.69	₹884.50
150+	₹15.62	₹2,343.00
500+	₹13.04	₹6,520.00
3,000+	₹11.89	₹35,670.00
6,000+	₹11.21	₹67,260.00

Quantity (min 5, multiples of 5)

5 × ₹22.52

₹112.60

excl. GST

₹132.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AD8631ARTZ(UMW)

₹112.60 for 5 + GST

Specifications

Output Current: 40mA
Number of Channels: 1
Vos - Input Offset Voltage: 4.2mV
Slew Rate: 4V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 84dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Gain Bandwidth Product: 6.5MHz
Quiescent Current: 480uA
Input Voltage Noise Density: 20nV/√Hz@10kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.3V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.044 g

Overview

The AD8631A (single), AD8632A (dual), and AD8634A (quad) are low noise, low voltage, micropower op amps. This amplifier family features an impressive 6.5 MHz bandwidth, 4 V/μs slew rate, and 480 μA quiescent current per amplifier at a 5 V supply, enabling use across a wide variety of designs. The AD863xA op amps are designed to deliver performance in low voltage and low noise systems. The input common-mode voltage range includes ground, with a maximum input offset voltage of 4.2 mV. These devices are capable of driving heavy loads to rail-to-rail output. The AD863xA family is specified to operate from +2.3 V to +5.5 V single or dual supplies. All versions are specified over the extended industrial temperature range of −40°C to +125°C.

Applications

Photodiode amplification
Sensor interface
Audio output
Active filter
ADC driver
Portable and battery-powered instruments

Key features

High slew rate: 4 V/μs
Wide bandwidth: 6.5 MHz
Low power: supply current 480 μA per amplifier
Settling to 0.1% for 2V step: 1 μs
Low noise: 20 nV/√Hz at 10 KHz
High gain: 103 dB, suitable for active filters and gain stages
Low offset voltage: 4.2 mV maximum
Unity-gain stable
Rail-to-rail input and output
Input voltage range: -0.1V to +5.1V on 5V supply
Operating supply voltage: +2.3V to +5.5V
Operating temperature range: -40°C to +125°C
