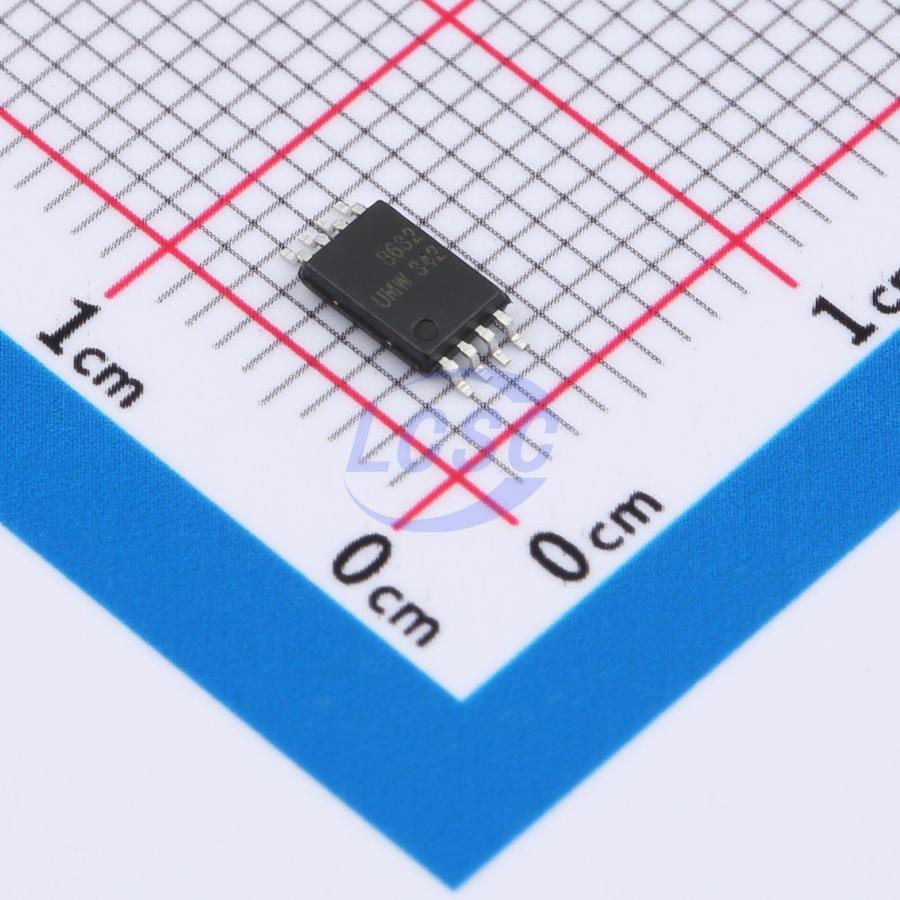

AD8632ART(UMW)

40mA 2 800uV 4V/us 1pA 84dB 6.5MHz 480uA Rail-to-Rail Input, Rail-to-Rail Output TSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

TSSOP-8ROHS CompliantActive

RRIO CMOS Operational Amplifiers

Manufacturer: UMW
Manufacturer part #: AD8632ART(UMW)
Store part #: C18207574
Package / case: TSSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,215 in stock

#C18207574

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹22.81	₹114.05
50+	₹19.94	₹997.00
150+	₹18.69	₹2,803.50
500+	₹17.16	₹8,580.00
2,500+	₹16.47	₹41,175.00
5,000+	₹16.06	₹80,300.00

Quantity (min 5, multiples of 5)

5 × ₹22.81

₹114.05

excl. GST

₹134.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

AD8632ART(UMW)

₹114.05 for 5 + GST

Specifications

Output Current: 40mA
Number of Channels: 2
Vos - Input Offset Voltage: 800uV
Slew Rate: 4V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 84dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Gain Bandwidth Product: 6.5MHz
Quiescent Current: 480uA
Input Voltage Noise Density: 20nV/√Hz@10kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.25V~-1.15V;1.15V~2.25V
Single Supply: 2.3V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.242 g

Overview

The AD8631A (single), AD8632A (dual), and AD8634A (quad) are low noise, low voltage, micropower op amps. This amplifier family features an impressive 6.5 MHz bandwidth, 4 V/μs slew rate, and 480 μA quiescent current per amplifier at a 5 V supply, enabling use across a wide variety of designs. The AD863xA op amps are designed to deliver performance in low voltage and low noise systems. The input common-mode voltage range includes ground, with a maximum input offset voltage of 4.2 mV. These devices are capable of driving heavy loads to rail-to-rail output. The AD863xA family is specified to operate from +2.3 V to +5.5 V single or dual supplies. All versions are specified over the extended industrial temperature range of −40°C to +125°C.
