Tokmas

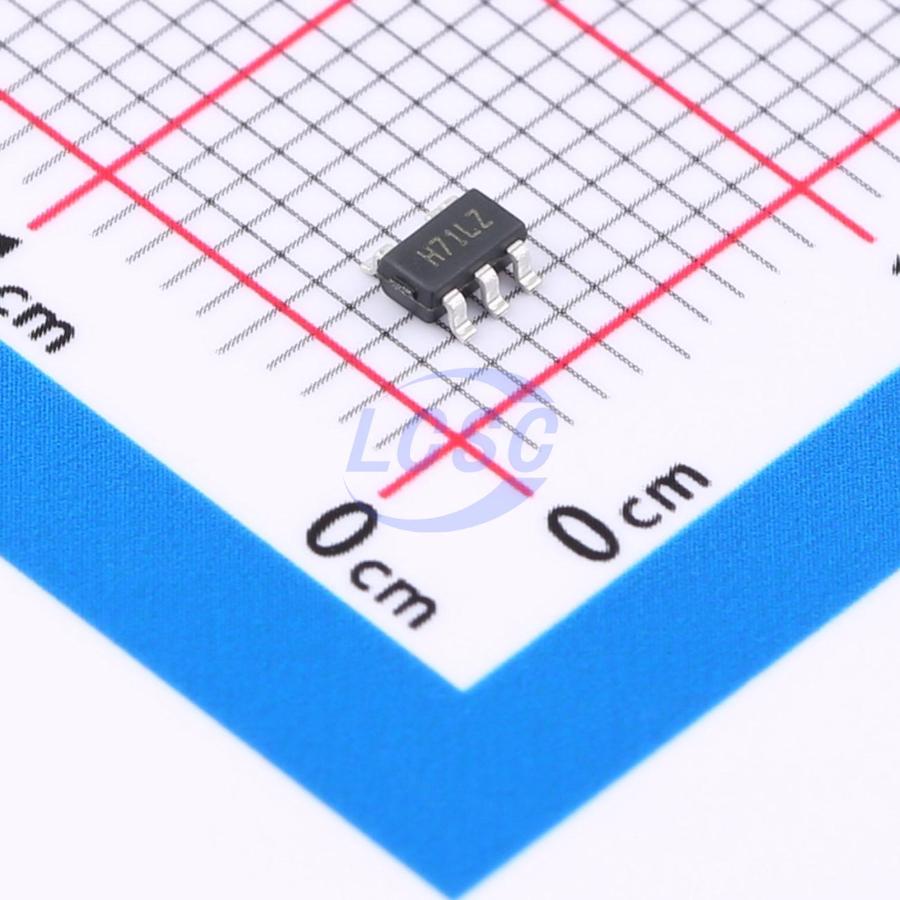

AD8641AKSZ-REEL7(TOKMAS)

45mA 75uV 3V/us 10pA 115dB 620uA 4MHz Rail-to-rail output SOT-23-5L Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5LROHS CompliantActive

48V Precision, 4MHz, Rail-to-Rail Output Operational Amplifiers

Manufacturer: Tokmas
Manufacturer part #: AD8641AKSZ-REEL7(TOKMAS)
Store part #: C48586486
Package / case: SOT-23-5L
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,332 in stock

#C48586486

Stock & price checked 25 h ago

Quantity	Unit price	Pack price
1+	₹44.56	₹44.56
10+	₹38.68	₹386.80
30+	₹36.08	₹1,082.40
100+	₹32.82	₹3,282.00
500+	₹31.51	₹15,755.00
1,000+	₹30.64	₹30,640.00

Quantity (min 1)

1 × ₹44.56

₹44.56

excl. GST

₹52.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AD8641AKSZ-REEL7(TOKMAS)

₹44.56 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 45mA
Vos - Input Offset Voltage: 75uV
Slew Rate: 3V/us
Input Offset Current(Ios): 5pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 115dB
Input Offset Voltage Drift(Vos TC): 1.5uV/℃
Quiescent Current: 620uA
Gain Bandwidth Product: 4MHz
Input Voltage Noise Density: 12nV/√Hz@10kHz
Rail to Rail: Rail-to-rail output
Dual Supply: -24V~-2.25V;2.25V~24V
Single Supply: 4.5V~48V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.04 g

Overview

Applications

Tracking amplifiers in power modules
Commercial power supplies
High-side and low-side current sensing
High-precision comparators
Battery-powered instruments

Key features

Wide supply voltage range: ±2.25 V to ±24 V, 4.5 V to 48 V
Low offset voltage: ±75 μV typical
Low offset voltage drift: ±1.5 μV/°C
High CMRR: 115 dB
Gain bandwidth product: 4 MHz
Slew rate: 3 V/μs
Low noise: 12 nV/√Hz at 10 kHz
Low bias current: ±10 pA
Rail-to-rail output
