ADI

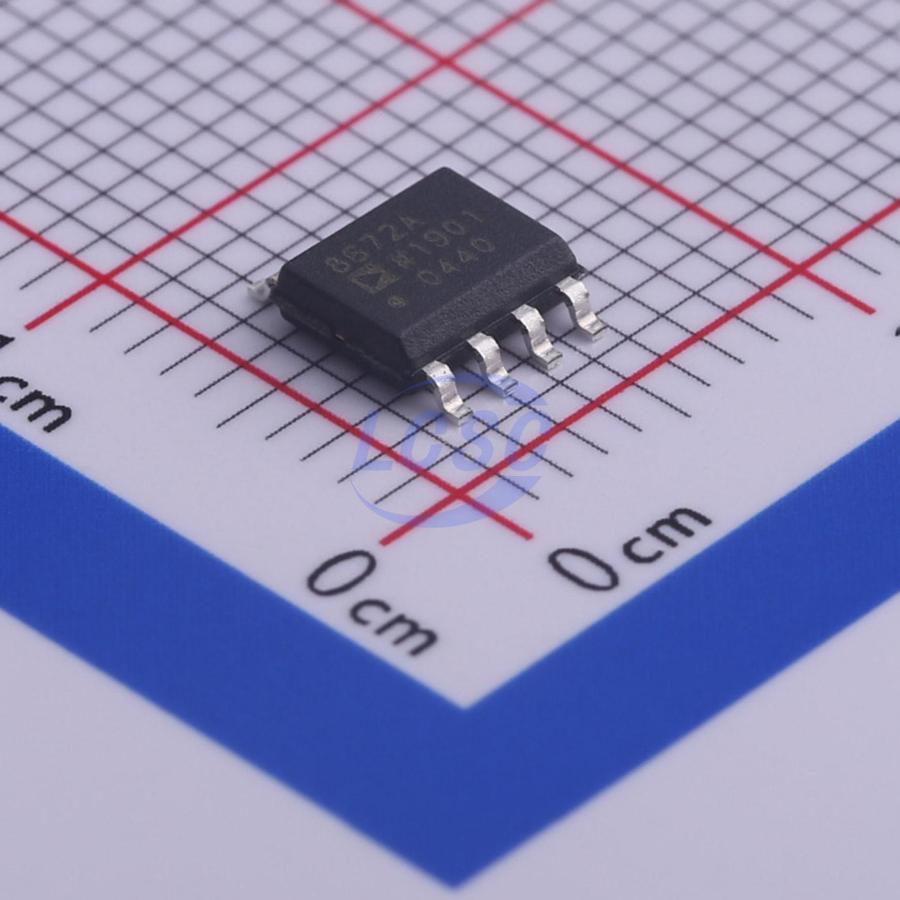

AD8672ARZ-REEL7

20mA 2 20uV 4V/us 3nA 120dB 10MHz 3mA SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

High-precision, low-noise, low-input-bias-current operational amplifier

Manufacturer: ADI
Manufacturer part #: AD8672ARZ-REEL7
Store part #: C461514
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

63 in stock

#C461514

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
1+	₹1,470.42	₹1,470.42
10+	₹1,304.49	₹13,044.90
30+	₹1,203.49	₹36,104.70
100+	₹1,047.11	₹1,04,711.00

Quantity (min 1)

1 × ₹1,470.42

₹1,470.42

excl. GST

₹1,735.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

AD8672ARZ-REEL7

₹1,470.42 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 20mA
Number of Channels: 2
Vos - Input Offset Voltage: 20uV
Slew Rate: 4V/us
Input Offset Current(Ios): 6nA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 3nA
Common Mode Rejection Ratio(CMRR): 120dB
Input Offset Voltage Drift(Vos TC): 300nV/℃
Gain Bandwidth Product: 10MHz
Quiescent Current: 3mA
Features: Built-in compensation;Reverse-phase input protection
Input Voltage Noise Density: 2.8nV/√Hz@1kHz
Dual Supply: -18V~-4V;4V~18V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.104 g
