UMWDatasheet (PDF)

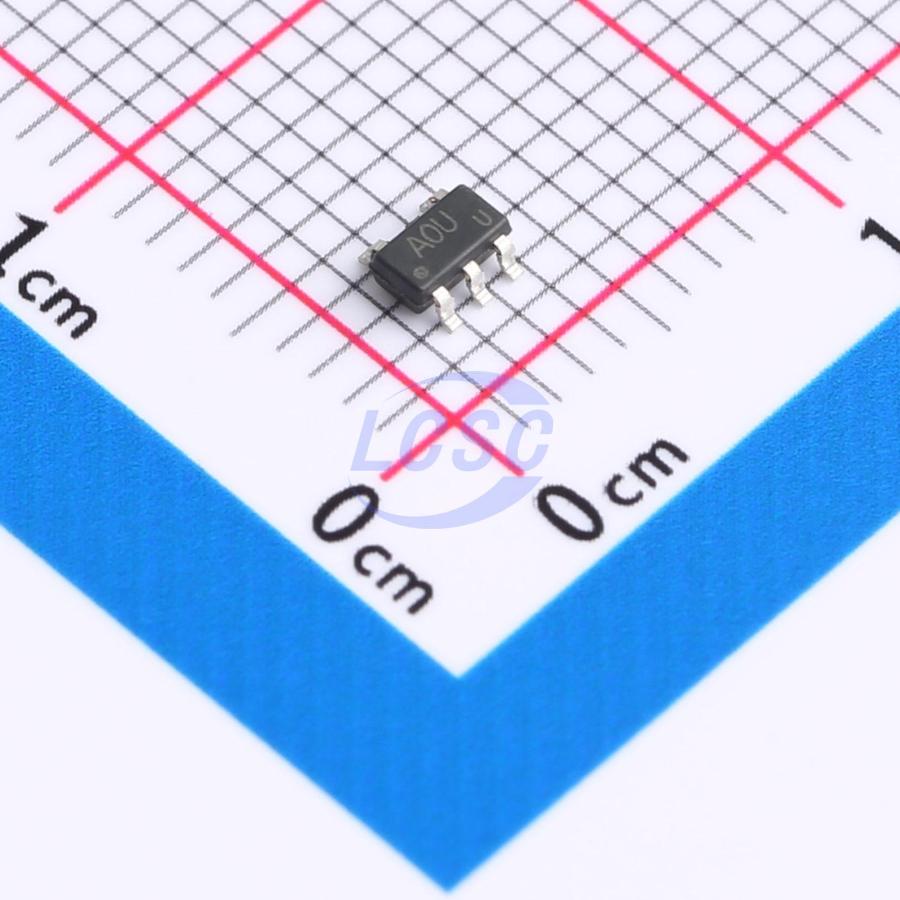

ADA4051-1ARJZ(UMW)
15mA 1 17uV 0.06V/us 5pA 125dB 15uA 115kHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS CompliantActive
Micropower, Zero-Drift, Rail-to-Rail Input/Output Op Amps
- Manufacturer
- UMW
- Manufacturer part #
- ADA4051-1ARJZ(UMW)
- Store part #
- C22365311
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,692 in stock
#C22365311
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹44.03 | ₹44.03 |
| 10+ | ₹38.45 | ₹384.50 |
| 30+ | ₹36.09 | ₹1,082.70 |
| 100+ | ₹33.08 | ₹3,308.00 |
| 500+ | ₹31.79 | ₹15,895.00 |
| 1,000+ | ₹30.93 | ₹30,930.00 |
1 × ₹44.03
₹44.03
excl. GST
₹51.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ADA4051-1ARJZ(UMW)
₹44.03 for 1 + GST
Specifications
- Output Current
- 15mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 17uV
- Slew Rate
- 0.06V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 5pA
- Common Mode Rejection Ratio(CMRR)
- 125dB
- Input Offset Voltage Drift(Vos TC)
- 100nV/℃
- Quiescent Current
- 15uA
- Gain Bandwidth Product
- 115kHz
- Features
- Zero drift / auto-zero;Built-in compensation
- Input Voltage Noise Density
- 95nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.045 g
Overview
The ADA4051-1 is a CMOS, micropower, zero-drift op amp utilizing innovative chopping techniques. These amplifiers feature rail-to-rail input/output swing and ultralow offset voltage, operating over a supply voltage range of 1.8V to 5.5V. In addition, these amplifiers deliver high PSRR and CMRR at a typical supply current of 13μA per amplifier. This combination of features makes the ADA4051-1 amplifiers ideal for battery-powered applications requiring high precision and low power consumption.
Applications
- Pressure and position sensors
- Temperature measurement
- Electronic scales
Key features
- Ultra-low supply current: 13μA typical
- Low offset voltage: 15μV maximum
- Offset voltage drift: 20nV/°C
- Single-supply operation: 1.8V to 5.5V
- High PSRR: 110dB minimum
- High CMRR: 110dB minimum
- Rail-to-rail input/output
- Unity-gain stable
- Extended industrial temperature range
