ADIDatasheet (PDF)

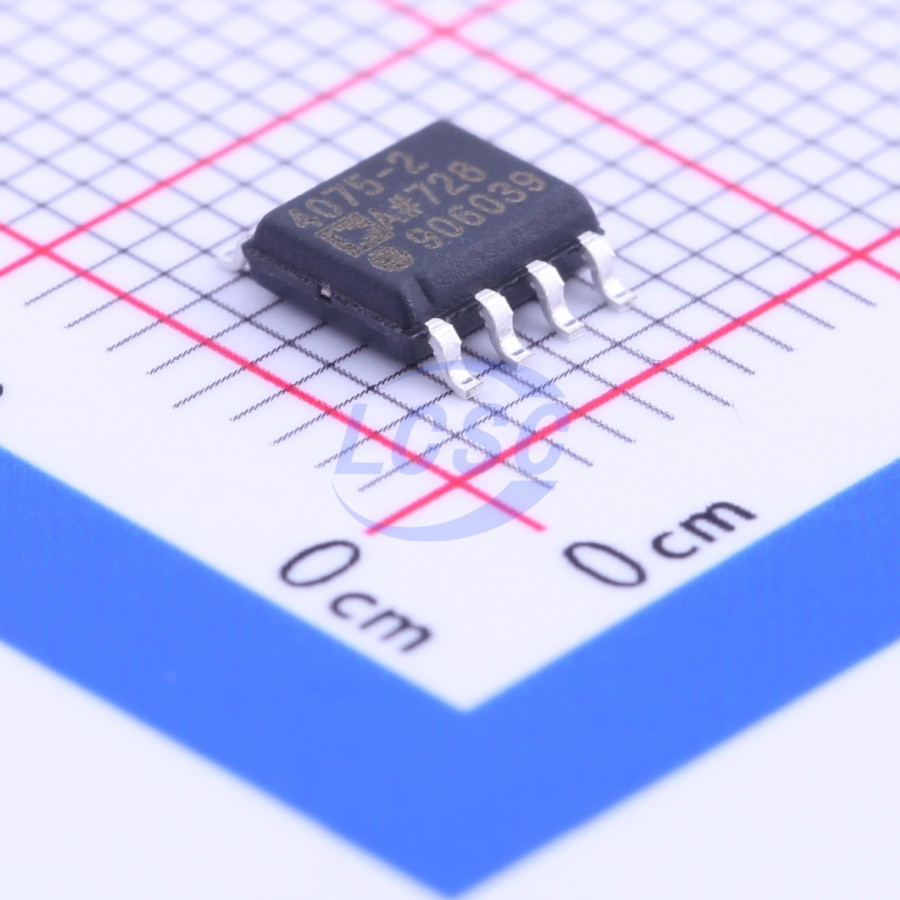

ADA4075-2ARZ-R7
40mA 2 200uV 12V/us 118dB 100nA 1.8mA 6.5MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Ultralow Noise Amplifier at Lower Power
- Manufacturer
- ADI
- Manufacturer part #
- ADA4075-2ARZ-R7
- Store part #
- C143913
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,630 in stock
#C143913
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹552.53 | ₹552.53 |
| 10+ | ₹481.87 | ₹4,818.70 |
| 30+ | ₹439.86 | ₹13,195.80 |
| 100+ | ₹397.50 | ₹39,750.00 |
| 500+ | ₹351.35 | ₹1,75,675.00 |
| 1,000+ | ₹342.52 | ₹3,42,520.00 |
1 × ₹552.53
₹552.53
excl. GST
₹651.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ADA4075-2ARZ-R7
₹552.53 for 1 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 200uV
- Slew Rate
- 12V/us
- Input Offset Current(Ios)
- 50nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 118dB
- Ib - Input Bias Current
- 100nA
- Input Offset Voltage Drift(Vos TC)
- 300nV/℃
- Quiescent Current
- 1.8mA
- Gain Bandwidth Product
- 6.5MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 2.8nV/√Hz@1kHz
- Dual Supply
- -18V~-4.5V;4.5V~18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
A dual, high performance, low noise operational amplifier combining excellent dc and ac characteristics on the iPolar process. The iPolar process is an advanced bipolar technology implementing vertical junction isolation with lateral trench isolation. This allows for low noise performance amplifiers in smaller die size at faster speed and lower power. Its high slew rate, low distortion, and ultralow noise make it ideal for high fidelity audio and high performance instrumentation applications. It is also especially useful for lower power demands, small enclosures, and high density applications. Specified for the -40°C to +125°C temperature range and is available in a standard SOIC package and a 2 mm×2 mm LFCSP package.
Applications
- Precision instrumentation
- Professional audio
- Active filters
- Low noise amplifier front end
- Integrators
Key features
- Ultralow noise: 2.8 nV/√Hz at 1 kHz typical
- Ultralow distortion: 0.0002% typical
- Low supply current: 1.8 mA per amplifier typical
- Offset voltage: 1 mV maximum
- Bandwidth: 6.5 MHz typical
- Slew rate: 12 V/μs typical
- Dual-supply operation: ±4.5 V to ±18 V
- Unity-gain stable
- Extended industrial temperature range
- 8-lead SOIC and 2 mm×2 mm LFCSP packages
