ADIDatasheet (PDF)

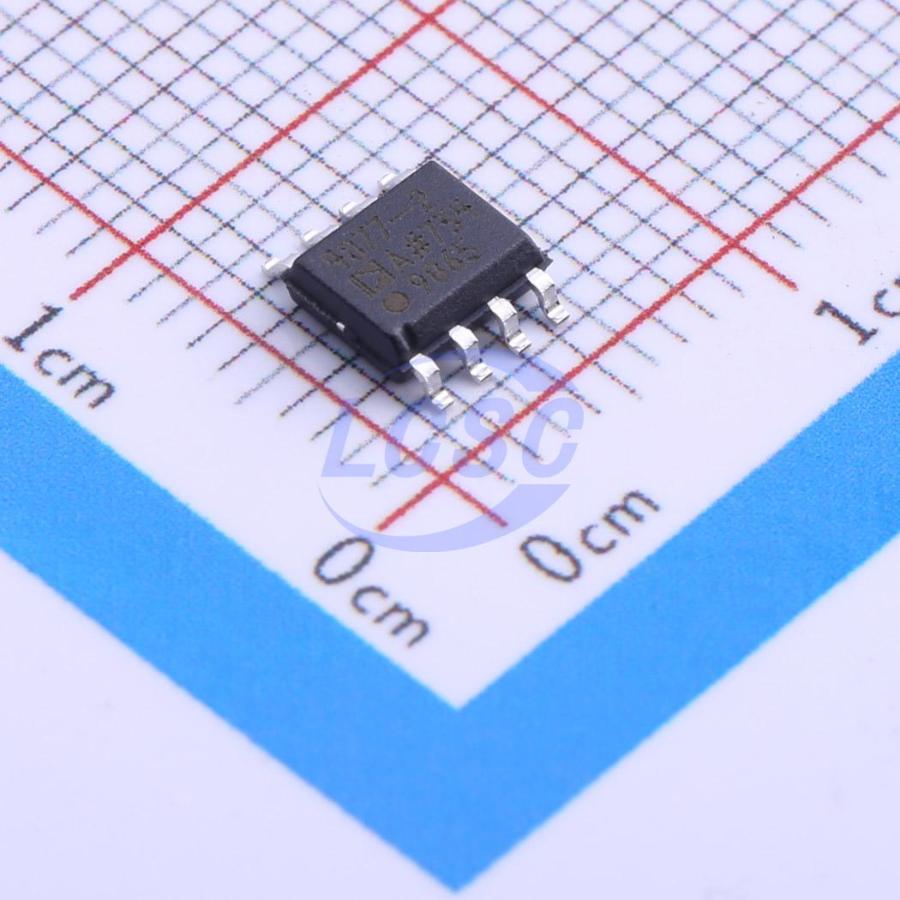

ADA4077-2ARZ-R7
10mA 2 50uV 1.2V/us 140dB 1nA 400uA 3.9MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
4 MHz, 7 nV/√Hz, Low Offset and Drift, High Precision Amplifiers
- Manufacturer
- ADI
- Manufacturer part #
- ADA4077-2ARZ-R7
- Store part #
- C97119
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,838 in stock
#C97119
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹733.10 | ₹733.10 |
| 10+ | ₹643.56 | ₹6,435.60 |
| 30+ | ₹590.31 | ₹17,709.30 |
| 100+ | ₹520.32 | ₹52,032.00 |
| 500+ | ₹495.54 | ₹2,47,770.00 |
| 1,000+ | ₹484.46 | ₹4,84,460.00 |
1 × ₹733.10
₹733.10
excl. GST
₹865.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ADA4077-2ARZ-R7
₹733.10 for 1 + GST
Specifications
- Output Current
- 10mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 50uV
- Slew Rate
- 1.2V/us
- Input Offset Current(Ios)
- 500pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 140dB
- Ib - Input Bias Current
- 1nA
- Input Offset Voltage Drift(Vos TC)
- 550nV/℃
- Quiescent Current
- 400uA
- Gain Bandwidth Product
- 3.9MHz
- Features
- Built-in compensation;Reverse-phase input protection
- Input Voltage Noise Density
- 6.9nV/√Hz@1kHz
- Dual Supply
- -15V~-5V;5V~15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
The single ADA4077-1, dual ADA4077-2, and quad ADA4077-4 amplifiers feature extremely low offset voltage and drift, and low input bias current, noise, and power consumption. Outputs are stable with capacitive loads of more than 1000 pF with no external compensation. Applications for this amplifier include sensor signal conditioning (such as thermocouples, resistance temperature detectors (RTDs), strain gages), process control front-end amplifiers, and precision diode power measurement in optical and wireless transmission systems. The ADA4077-1/ADA4077-2/ADA4077-4 are useful in line powered and portable instrumentation, precision filters, and voltage or current measurement and level setting. Unlike other amplifiers, the ADA4077-1/ADA4077-2/ ADA4077-4 have an MSL1 rating that is compliant with the most stringent of assembly processes, and they are specified over the extended industrial temperature range from -40°C to +125°C for the most demanding operating environments.
Applications
- Process control front-end amplifiers
- Optical network control circuits
- Instrumentation
- Precision sensors and controls
- Precision filters
Key features
- Offset voltage: 25 μV maximum at 25°C (B grade, 8-lead SOIC, single/ dual)
- Offset voltage: 50 μV maximum at 25°C (A grade, 8-lead SOIC, single/ dual)
- Offset voltage: 50 μV maximum at 25°C (A grade, 14-lead SOIC, quad)
- Offset voltage drift: 0.25 μV/°C maximum (B grade, 8-lead SOIC, single/dual)
- Offset voltage drift: 0.55 μV/°C maximum (A grade, 8-lead SOIC, single/dual)
- Offset voltage drift: 0.75 μV/°C maximum (A grade, 14-lead SOIC, quad)
- MSL1 rated
- Low input bias current: 1 nA maximum at TA = 25°C
- Low voltage noise density: 6.9 nV/√Hz typical at f = 1000 Hz
- CMRR, PSRR, and Δv > 120 dB minimum
- Low supply current: 400 μA per amplifier typical
- Wide gain bandwidth product: 3.9 MHz at ±5 V
- Dual-supply operation: Specified at ±5 V to ±15 V, Operates at ±2.5 V to ±15 V
- Unity gain stable
- No phase reversal
- Long-term offset voltage drift (10,000 hours): 0.5 μV typical
- Temperature hysteresis: 1 μV typical
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ADA4077-2ARZ-RL#C654010ADI · SOIC-8 | ADI | SOIC-8 | On request | Price on request | Quote |
