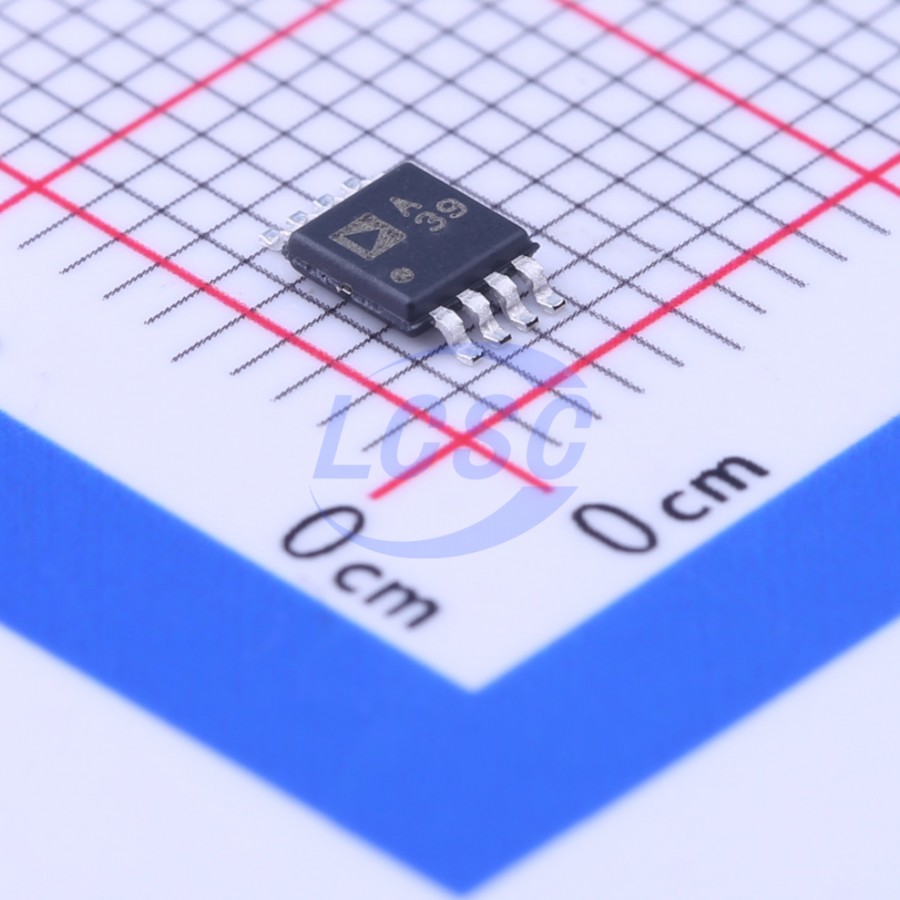

ADA4522-2ARMZ-R7

The ADA4522-1/ADA4522-2/ADA4522-4 are single/dual/quad channel, zero drift op amps with low noise and power, ground sensing inputs, and rail-to-rail output, optimized for total accuracy over time, temperature, and voltage conditions. The wide operating voltage and temperature ranges, as well as the high open-loop gain and very low dc and ac errors make the devices well suited for amplifying very small input signals and for accurately reproducing larger signals in a wide variety of applications. The ADA4522-1/ADA4522-2/ADA4522-4 performance is specified at 5.0V, 30V, and 55V power supply voltages. These devices operate over the range of 4.5V to 55V, and are excellent for applications using single-ended supplies of 5 V, 10V, 12V, and 30V, or for applications using higher single supplies and dual supplies of ±2.5V, ±5V, and ±15V. The ADA4522-1/ ADA4522-2/ADA4522-4 use on-chip filtering to achieve high immunity to electromagnetic interference (EMI).

Applications

• Inductance, capacitance, and resistance (LCR) meter/ megohmmeter front-end amplifiers
• Load cell and bridge transducers
• Magnetic force balance scales
• High precision shunt current sensing
• Thermocouple/resistance temperature detector (RTD) sensors
• Programmable logic controller (PLC) input and output amplifiers

Key features

• Low offset voltage: 5μV maximum
• Extremely low offset voltage drift: 22nV / °C maximum
• Low voltage noise density: 5.8nV / √Hz typical, 117 nV p-p typical from 0.1Hz to 10Hz
• Low input bias current: 50pA typical
• Unity-gain crossover: 3 MHz typical
• Single-supply operation: input voltage range includes ground and rail-to-rail output
• Wide range of operating voltages
• Single-supply operation: 4.5V to 55V
• Dual-supply operation: ±2.25V to ±27.5V
• Integrated EMI filters
• Unity-gain stable
