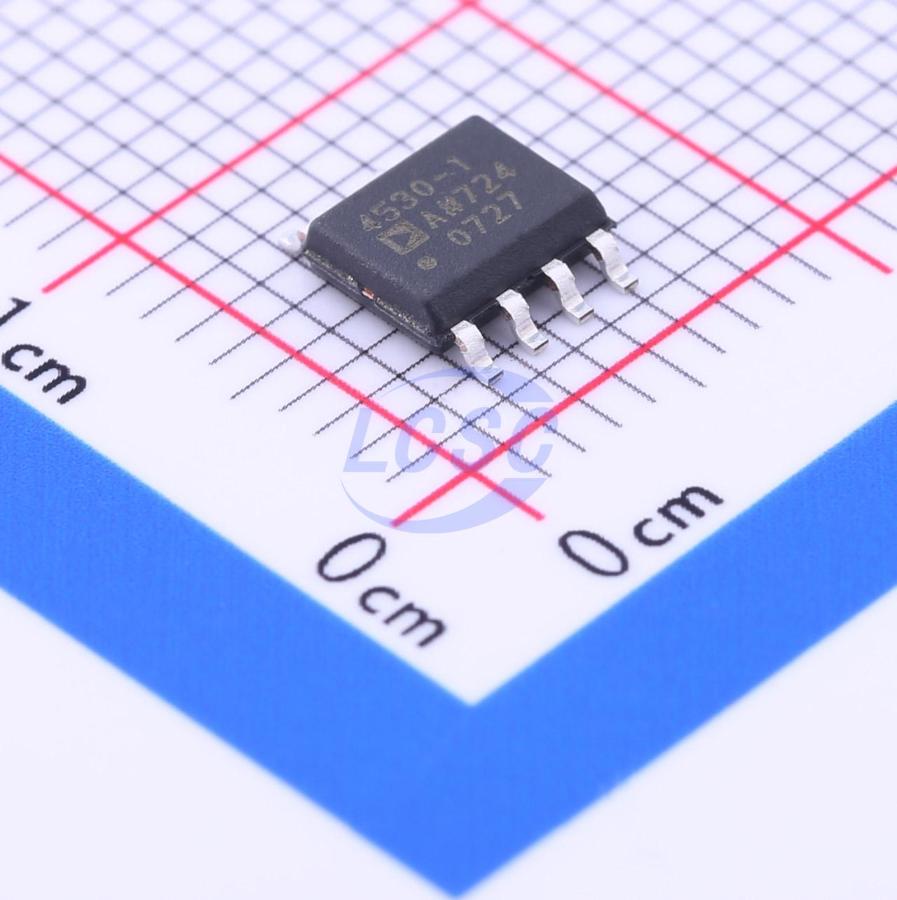

ADA4530-1ARZ-R7

The ADA4530-1 is a femtoampere (10^-15 A) level input bias current operational amplifier suitable for use as an electrometer that also includes an integrated guard buffer. It has an operating voltage range of 4.5 V to 16 Vᵢ, enabling it to operate in conventional 5 V and 10 V single supply systems as well as ±2.5 V and ±5 V dual supply systems. It provides ultralow input bias currents that are production tested at 25 ℃ and at 125 ℃ to ensure the device meets its performance goals in user systems. The integrated guard buffer isolates the input pins from leakage in the printed circuit board (PCB), minimizes board component count, and enables easy system design. The ADA4530-1 also offers low offset voltage, low offset drift, and low voltage and current noise needed for the types of applications that require such low leakages. To maximize the dynamic range of the system, the ADA4530-1 has a rail-to-rail output stage that can typically drive to within 30 mV of the supply rails under a 10 kΩ load. The ADA4530-1 operates over the -40 ℃ to +125 ℃ industrial temperature range and is available in an 8-lead SOIC package.

Applications

• Laboratory and analytical instrumentation: spectrophotometers, chromatographs, mass spectrometers, and potentiostatic and amperostatic coulometry
• Instrumentation: picoammeters and coulombmeters
• Transimpedance amplifier (TIA) for photodiodes, ion chambers, and working electrode measurements
• High impedance buffering for chemical sensors and capacitive sensors

Key features

• Low input bias current ±20 fA maximum at TA = 25℃ (guaranteed at production test) ±20 fA maximum at -40℃ < TA < +85℃ ±250 fA maximum at -40℃ < TA < +125℃ (guaranteed at production test)
• Low offset voltage: 50 μV maximum over specified CMRR range
• Offset voltage drift: ±0.13 μV/℃ typical, ±0.5 μV/℃ maximum
• Integrated guard buffer with 100 μV maximum offset
• Low voltage noise density: 14 nV/√Hz at 10 kHz
• Wide bandwidth: 2 MHz unity-gain crossover
• Supply voltage: 4.5 V to 16 V (±2.25 V to ±8 V)
• Operating temperature: -40℃ to +125℃
• Long-term offset voltage drift (10,000 hours): 0.5 μV typical
• Temperature hysteresis: 1.5 μV typical
