ADI

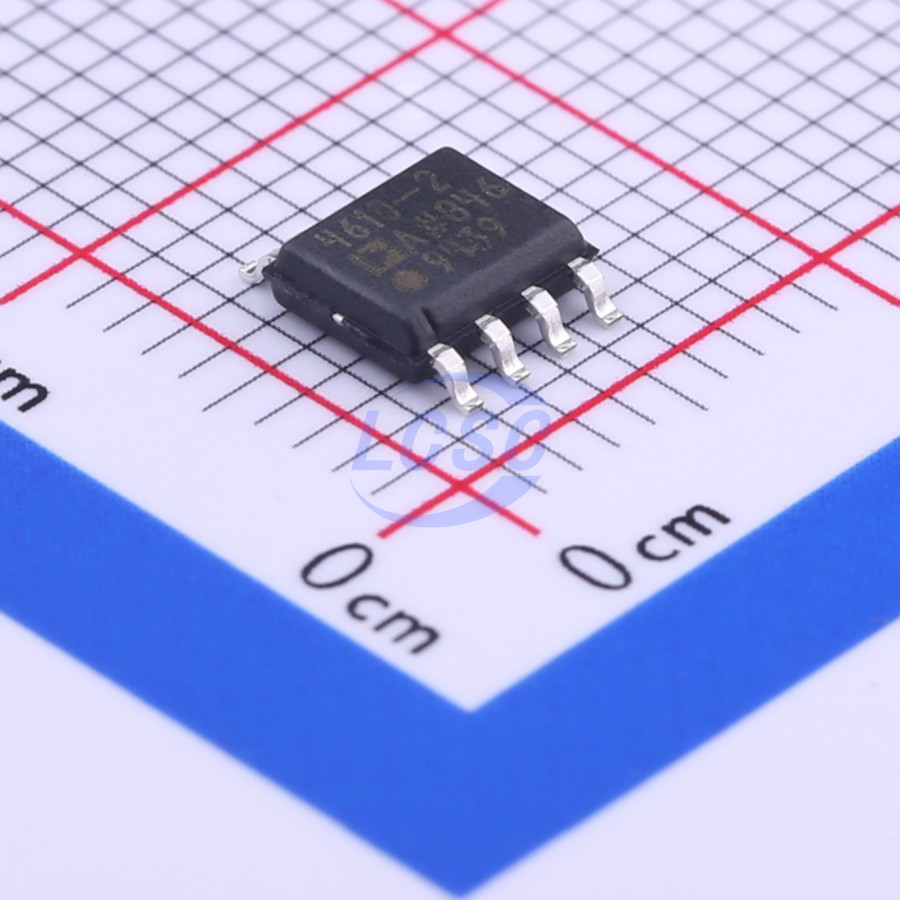

ADA4610-2ARZ-R7

63mA 2 200uV 171V/us 96dB 5pA 1.5mA 15.4MHz Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

Low Noise, Precision, Rail-to-Rail Output, JFET Single/Dual/Quad Op Amps

Manufacturer: ADI
Manufacturer part #: ADA4610-2ARZ-R7
Store part #: C367090
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,037 in stock

#C367090

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹1,047.43	₹1,047.43
10+	₹938.59	₹9,385.90
30+	₹787.26	₹23,617.80
100+	₹731.54	₹73,154.00

Quantity (min 1)

1 × ₹1,047.43

₹1,047.43

excl. GST

₹1,235.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

ADA4610-2ARZ-R7

₹1,047.43 for 1 + GST

Specifications

Output Current: 63mA
Number of Channels: 2
Vos - Input Offset Voltage: 200uV
Slew Rate: 171V/us
Input Offset Current(Ios): 20pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 96dB
Ib - Input Bias Current: 5pA
Input Offset Voltage Drift(Vos TC): 0.5uV/℃
Quiescent Current: 1.5mA
Gain Bandwidth Product: 15.4MHz
Features: Built-in compensation;Overvoltage protection;High capacitive load driving
Input Voltage Noise Density: 7.3nV/√Hz@1kHz
Dual Supply: -15V~15V
Rail to Rail: Rail-to-rail output

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.193 g

Overview

The ADA4610-1/ADA4610-2/ADA4610-4 are precision junction field effect transistor (JFET) amplifiers that feature low input noise voltage, current noise, offset voltage, input bias current, and rail-to-rail output. The ADA4610-1 is a single amplifier, the ADA4610-2 is a dual amplifier, and the ADA4610-4 is a quad amplifier. The combination of low offset, noise, and very low input bias current makes these amplifiers especially suitable for high impedance sensor amplification and precise current measurements using shunts. With excellent dc precision, low noise, and fast settling time, the ADA4610-1/ADA4610-2/ADA4610-4 provide superior accuracy in medical instruments, electronic measurement, and automated test equipment. Unlike many competitive amplifiers, the ADA4610-1/ADA4610-2/ADA4610-4 maintain fast settling performance with substantial capacitive loads. Unlike many older JFET amplifiers, the ADA4610-1/ADA4610-2/ ADA4610-4 do not suffer from output phase reversal when input voltages exceed the maximum common-mode voltage range. The fast slew rate and great stability with capacitive loads make the ADA4610-1/ADA4610-2/ADA4610-4 ideal for high performance filters. Low input bias currents, low offset, and low noise result in a wide dynamic range for photodiode amplifier circuits. Low noise and distortion, high output current, and excellent speed make the ADA4610-1/ADA4610-2/ADA4610-4 great choices for audio applications. The ADA4610-1/ADA4610-2/ADA4610-4 are specified over the -40°C to +125°C extended industrial temperature range.

Applications

Instrumentation
Medical instruments
Multipole filters
Precision current measurement
Photodiode amplifiers
Sensors
Audio

Key features

Low offset voltage B grade: 0.4 mV maximum (ADA4610-1/ADA4610-2 only) A grade: 1 mV maximum
Low offset voltage drift B grade: 4 μV/°C maximum (ADA4610-1/ADA4610-2 only) A grade: 8 μV/°C maximum (SOIC, MSOP, LFCSP packages)
Low input bias current: 5 pA typical
Dual-supply operation: ±V to ±15 V
Low voltage noise: 0.45 μV p-p at 0.1 Hz to 10 Hz
Voltage noise density: 7.30 nV/√Hz at f = 1 kHz
Low THD + N: 0.00025%
No phase reversal
Rail-to-rail output
Unity-gain stable
Long-term offset voltage drift (10,000 hours): 5 μV typical
Temperature hysteresis: δ μV typical
