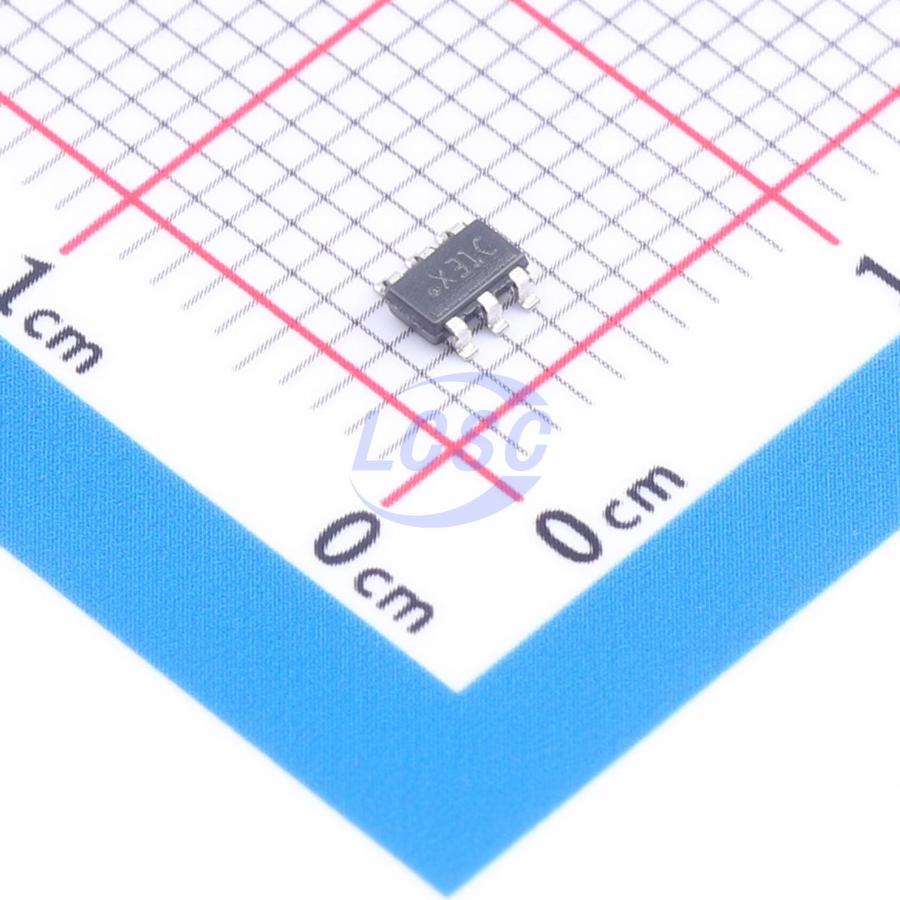

ADC121C027CIMKX/NOPB

These converters are low-power, monolithic, 12-bit, analog-to-digital converters (ADCs) that operates from a +2.7 to +5.5V supply. The converter is based upon a successive approximation register architecture with an internal track-and-hold circuit that can handle input frequencies up to 11MHz. These converters operate from a single supply which also serves as the reference. The device features an I²C - compatible serial interface that operates in all three speed modes, including high speed mode (3.4MHz). The ADC121C021's Alert feature provides an interrupt that is activated when the analog input violates a programmable upper or lower limit value. The device features an automatic conversion mode, which frees up the controller and I²C interface. In this mode, the ADC continuously monitors the analog input for an "out-of-range" condition and provides an interrupt if the measured voltage goes out-of-range. The ADC121C021 comes in two packages: a small 6 - pin SOT package with an alert output, and an 8 - pin VSSOP package with an alert output and two address selection inputs. The ADC121C021Q is available in a 6 - pin SOT package. The ADC121C027 comes in a small 6 - pin SOT package with an address selection input. The ADC121C027 provides three pin - selectable addresses while the 8 - pin VSSOP version of the ADC121C021 provides nine pin - selectable addresses. Pin - compatible alternatives to the 6 - pin SOT options are available with additional address options. Normal power consumption using a +3V or +5V supply is 0.26mW or 0.78mW, respectively. The automatic power - down feature reduces the power consumption to less than 1μW while not converting. Operation over the industrial temperature range of -40°C to +105°C is ensured. Their low power consumption and small packages make this family of ADCs an excellent choice for use in battery operated equipment. The ADC121C021 and ADC121C027 are part of a family of pin - compatible ADCs that also provide 8 and 10 bit resolution. For 8 - bit ADCs see the ADC081C021 and ADC081C027. For 10 - bit ADCs see the ADC101C021 and ADC101C027.

Applications

• System Monitoring
• Peak Detection
• Portable Instruments
• Medical Instruments
• Test Equipment Automotive

Key features

• I2C-Compatible 2-Wire Interface Which Supports Standard (100kHz), Fast (400kHz), and High Speed (3.4MHz) Modes
• Extended Power Supply Range (+2.7 to +5.5V)
• Up to Nine Pin-Selectable Chip Addresses (VSSOP Only)
• Out-of-Range Alert Function
• Automatic Power-Down Mode while Not Converting
• Very Small 6-Pin SOT and 8-Pin VSSOP Packages
• ADC121C021Q is an Automotive Grade Product that is AEC-Q100 Grade 2 Qualified
