TokmasDatasheet (PDF)

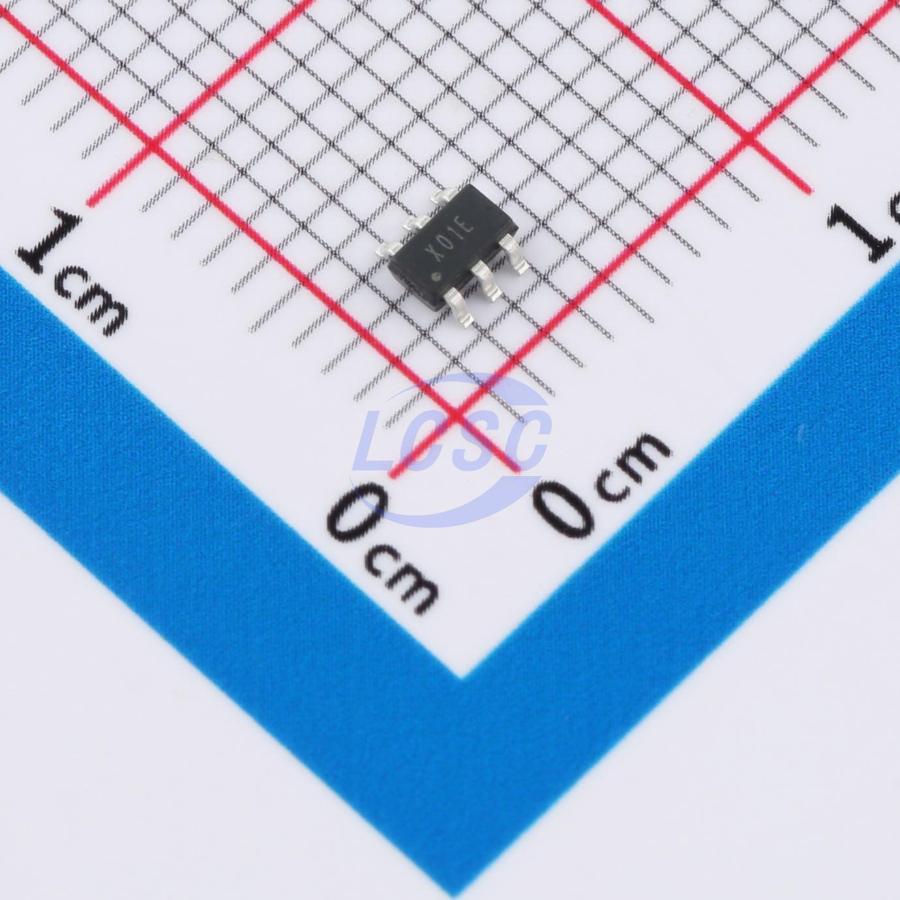

ADC121S101CIMF(TOKMAS)
SPI 3.3V~4.8V SOT-23-6 Analog to Digital Converters (ADC)
SOT-23-6RoHSActive
- Manufacturer
- Tokmas
- Manufacturer part #
- ADC121S101CIMF(TOKMAS)
- Store part #
- C49383089
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,612 in stock
#C49383089
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.31 | ₹71.31 |
| 10+ | ₹55.98 | ₹559.80 |
| 30+ | ₹49.49 | ₹1,484.70 |
| 100+ | ₹41.28 | ₹4,128.00 |
| 500+ | ₹37.82 | ₹18,910.00 |
| 1,000+ | ₹35.44 | ₹35,440.00 |
1 × ₹71.31
₹71.31
excl. GST
₹84.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ADC121S101CIMF(TOKMAS)
₹71.31 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Quiescent Current (Iq)
- 900uA
- Voltage - Supply
- 3.3V~4.8V
- Number of Channels
- 1
- Integral non - linearity
- 1.25LSB
- Clock/Oscillator
- External
- Clock Frequency
- 20MHz
- Resolution(Bits)
- 1MHz;12
- S/N Ratio
- 72.5dB
- ADC architecture
- SAR
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.049 g
Overview
Applications
- Battery-powered systems
- Portable systems
- Remote data acquisition
- Instrumentation and control systems
Key features
- Single-supply operation: 4V to 5.25V for ADC12/10/081S101; 3.3V to 4.8V for ADC12/10/081S101E
- Throughput rate: 500 to 800 KSPS for ADC12/10/081S101; 800 to 1000 KSPS for ADC12/10/081S101E
- Specified performance across multiple sample rate ranges
- INL ±1.25 LSB, DNL ±1 LSB (DAC121S101)
- Zero latency
- Compatible with SPI, DSP, MICROWIRE, QSPI serial interfaces
- Variable power management
- Low power consumption (ADC121S101 typical): 3.60 mW (4V, 800 KSPS); 6.05 mW (5V, 800 KSPS)
- 6-pin SOT-23 package
