UMWDatasheet (PDF)

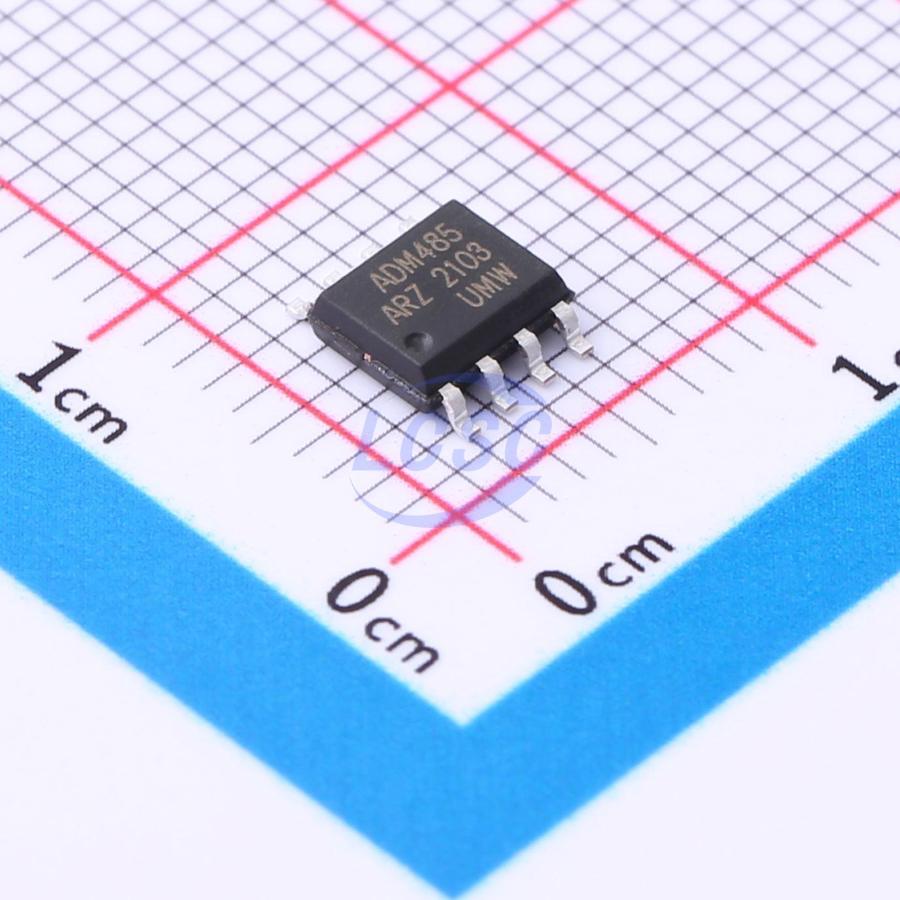

ADM485ARZ(UMW)
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers
- Manufacturer
- UMW
- Manufacturer part #
- ADM485ARZ(UMW)
- Store part #
- C2829052
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,935 in stock
#C2829052
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.19 | ₹250.95 |
| 50+ | ₹39.19 | ₹1,959.50 |
| 150+ | ₹34.48 | ₹5,172.00 |
| 500+ | ₹28.59 | ₹14,295.00 |
| 2,500+ | ₹25.97 | ₹64,925.00 |
| 5,000+ | ₹24.40 | ₹1,22,000.00 |
5 × ₹50.19
₹250.95
excl. GST
₹296.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ADM485ARZ(UMW)
₹250.95 for 5 + GST
Specifications
- Voltage - Supply
- 4.75V~5.25V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Number of Nodes
- 32
- Operating Temperature
- -40℃~+85℃
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Overcurrent Protection;Thermal shutdown protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 300uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.189 g
Overview
The ADM485 is a low-power transceiver for RS-485 and RS-422 communications. The IC contains one driver and one receiver. The ADM485 driver slew rate is not limited, allowing data transmission rates up to 2.5Mbps. Supply current for these transceivers ranges from 120μA to 500μA with the driver unloaded or fully loaded and disabled. All devices operate from a single 5V supply. The driver features short-circuit current limiting and is protected against excessive power dissipation by a thermal shutdown circuit that forces the driver outputs into a high-impedance state. The receiver inputs include a failsafe feature that guarantees a logic-high output if the inputs are open-circuited. The ADM485 is designed for half-duplex applications.
Key features
- Common-mode input voltage range: -7V to +12.5V
- Three-state output
- Propagation delay 30ns, skew 5ns
- Available in full-duplex and half-duplex versions
- Single 5V supply
- Up to 32 transceivers on bus
- Data rate: 2.5Mbps
- Driver overload protection with current limiting and thermal shutdown
- SOP-8 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP485EN(UMW)#C668207UMW · SOP-8 | UMW | SOP-8 | 98,860 | ₹21.99 · 98,860 in stock | View |
 | ST485EBDR(UMW)#C5172938UMW · SOP-8 | UMW | SOP-8 | 2,630 | ₹42.01 · 2,630 in stock | View |
 | MAX485ESA(UMW)#C668206UMW · SOP-8 | UMW | SOP-8 | 32,315 | ₹28.66 · 32,315 in stock | View |
 | SP485EEN(UMW)#C53463897UMW · SOP-8 | UMW | SOP-8 | 7,130 | ₹19.90 · 7,130 in stock | View |
