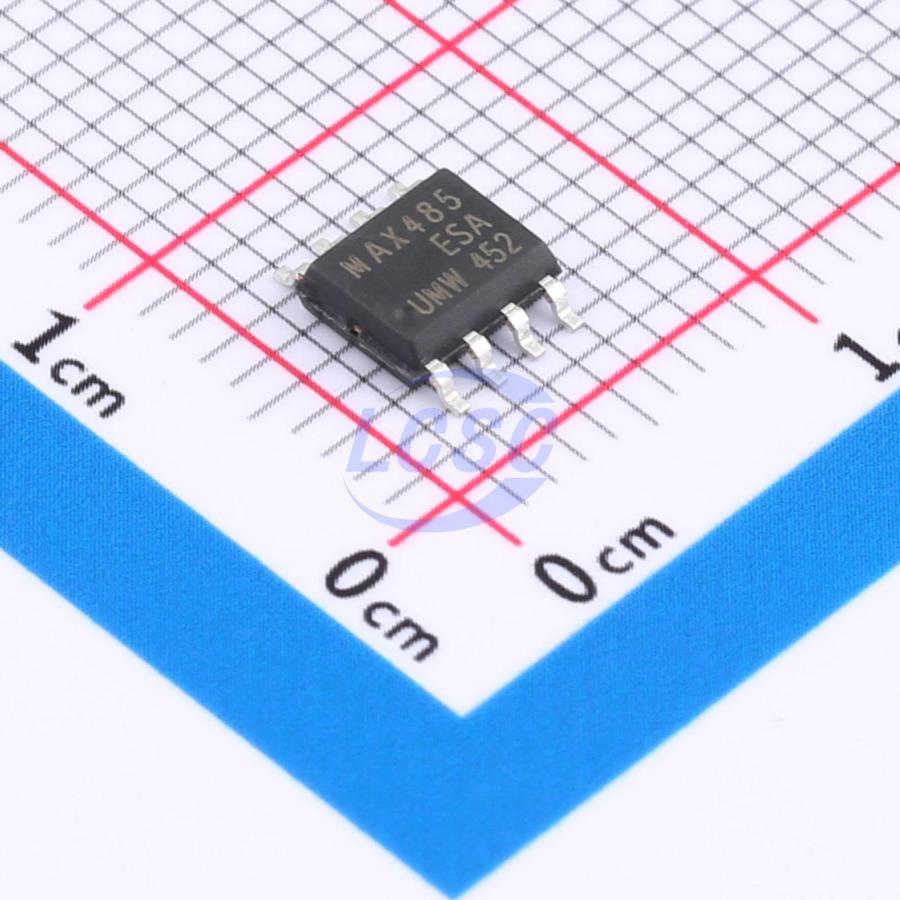

MAX485ESA(UMW)
5V Transceiver 2.5Mbps 32 SOP-8 Drivers, Receivers, Transceivers RoHS
SOP-8ROHS CompliantActive
Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers
- Manufacturer
- UMW
- Manufacturer part #
- MAX485ESA(UMW)
- Store part #
- C668206
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
32,315 in stock
#C668206
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.66 | ₹143.30 |
| 50+ | ₹21.59 | ₹1,079.50 |
| 150+ | ₹18.15 | ₹2,722.50 |
| 500+ | ₹15.07 | ₹7,535.00 |
| 2,500+ | ₹14.24 | ₹35,600.00 |
| 5,000+ | ₹13.72 | ₹68,600.00 |
5 × ₹28.66
₹143.30
excl. GST
₹169.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX485ESA(UMW)
₹143.30 for 5 + GST
Specifications
- Voltage - Supply
- 5V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Number of Nodes
- 32
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Overcurrent Protection;Thermal shutdown protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 300uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.26 g
Overview
UMW MAX485 is a low-power transceiver for RS-485 and RS-422 communications. The IC contains one driver and one receiver. The MAX485 driver slew rate is not limited, allowing data transmission rates up to 2.5Mbps. When the driver is disabled with no load or full load, the supply current of these transceivers ranges from 120μA to 500μA. All devices operate from a single 5V supply. The driver features short-circuit current limiting and is protected against excessive power dissipation by a thermal shutdown circuit that forces the driver outputs into a high-impedance state. The receiver inputs include a fail-safe feature that guarantees a logic-high output if the inputs are open-circuited. The MAX485 is designed for half-duplex applications.
Key features
- Low quiescent current: 500μA
- Common-mode input voltage range: -7V to +12.5V
- Three-state output
- Propagation delay 30ns, skew 5ns
- Available in full-duplex and half-duplex versions
- Single 5V supply
- Up to 32 transceivers on bus
- Data rate: 2.5Mbps
- Driver overload protection with current limiting and thermal shutdown
- SOP-8 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ST485EBDR(UMW)#C5172938UMW · SOP-8 | UMW | SOP-8 | 2,630 | ₹42.01 · 2,630 in stock | View |
 | ADM485ARZ(UMW)#C2829052UMW · SOP-8 | UMW | SOP-8 | 9,935 | ₹50.19 · 9,935 in stock | View |
 | SP485EN(UMW)#C668207UMW · SOP-8 | UMW | SOP-8 | 98,860 | ₹21.99 · 98,860 in stock | View |
 | SP485EEN(UMW)#C53463897UMW · SOP-8 | UMW | SOP-8 | 7,130 | ₹19.90 · 7,130 in stock | View |
