ADI

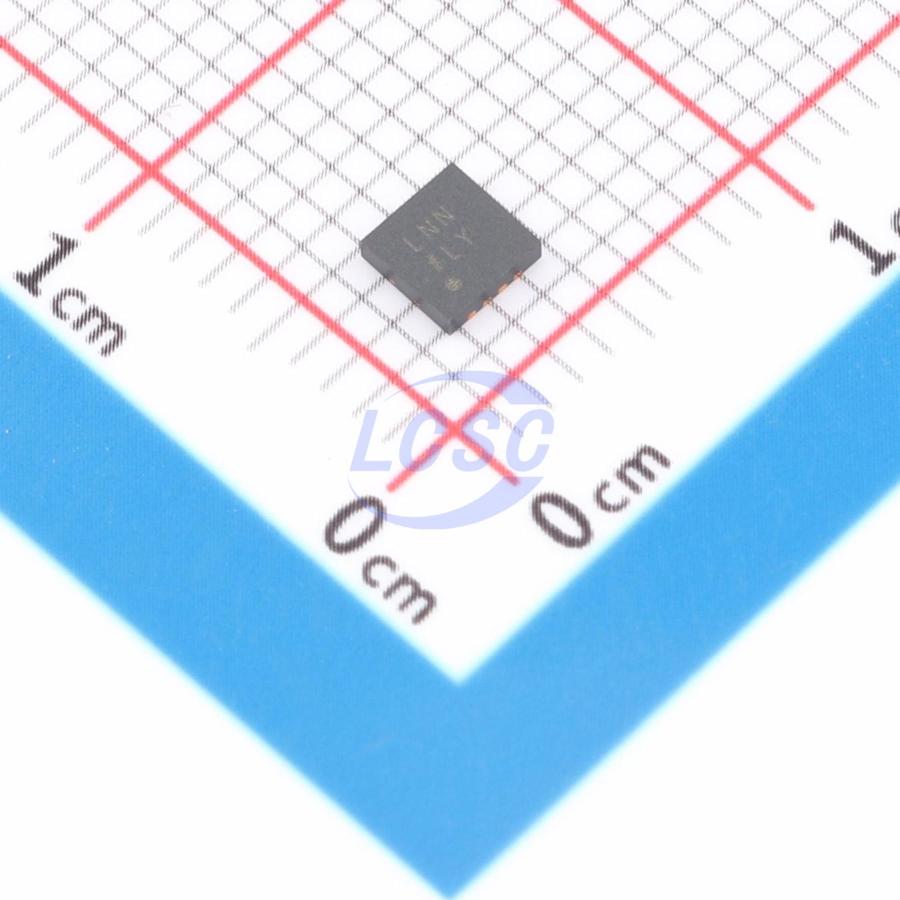

ADM7151ACPZ-02-R7

1.5V~4V Positive Adjustable LFCSP-8(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

LFCSP-8(3x3)ROHS CompliantActive

IC REG LINEAR 1.5V~4V 800mA LFCSP-8(3x3)

Manufacturer: ADI
Manufacturer part #: ADM7151ACPZ-02-R7
Store part #: C658445
Package / case: LFCSP-8(3x3)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

47 in stock

#C658445

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹1,823.81	₹1,823.81
10+	₹1,584.76	₹15,847.60
30+	₹1,438.87	₹43,166.10
100+	₹1,316.86	₹1,31,686.00

Quantity (min 1)

1 × ₹1,823.81

₹1,823.81

excl. GST

₹2,152.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,500 per reel

ADM7151ACPZ-02-R7

₹1,823.81 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.5V~4V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 4.3mA
Output Configuration: Positive
Operating Voltage: 16V
Output Current: 800mA
Features: Enable control;Input under-voltage protection;Thermal shutdown;Over Current Protection
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.094 g

Overview

The ADM7151 is a low dropout (LDO) linear regulator that operates from 4.5 V to 16 V and provides up to 800 mA of output current. Using an advanced proprietary architecture, it provides high power supply rejection (> 90 dB from 1 kHz to 1 MHz), ultralow noise (1.7 nV/√Hz from 10 kHz to 1 MHz), and excellent line and load transient response with a 10 μF ceramic output capacitor. The output voltage can be set to any voltage between 1.5 V and 5.1 V with two resistors. The ADM7151 regulator output noise is 1.0 μV rms from 100 Hz to 100 kHz, and the noise spectral density is 1.7 nV/√Hz from 10 kHz to 1 MHz. The ADM7151 is available in 8 - lead, 3 mm×3 mm LFCSP and 8 - lead SOIC packages, making it not only a very compact solution, but also providing excellent thermal performance for applications requiring up to 800 mA of output current in a small, low profile footprint.

Applications

Regulated power noise sensitive applications: RF mixers, phase - locked loops (PLLs), voltage - controlled oscillators (VCOs), and PLLs with integrated VCOs
Clock distribution circuits
Ultrasound and other imaging applications
High speed RF transceivers
High speed, 16 - bit or greater ADCs
Communications and infrastructure
Cable digital - to - analog converter (DAC) drivers

Key features

Input voltage range: 4.5 V to 16 V
Maximum output current: 800 mA
Adjustable output from 1.5 V to 5.1 V
Low noise: 1.0 μV rms total integrated noise from 100 Hz to 100 kHz, 1.6 μV rms total integrated noise from 70 Hz to 100 kHz
Noise spectral density: 1.7 nV/√Hz from 10 kHz to 1 MHz
Power supply rejection ratio (PSRR) at 400 mA load > 90 dB from 1 kHz to 100 kHz, > 60 dB at 1 MHz, Vout = 5 V
Dropout voltage: 0.6 V at Vout = 5 V, 800 mA load
Initial voltage accuracy: ±1%
Voltage accuracy over line, load and temperature: ±2%
Quiescent current (IGND): 4.3 mA at no load
Low shutdown current: 0.1 μA
Stable with a 10 μF ceramic output capacitor
8 - lead LFCSP package and 8 - lead SOIC package
