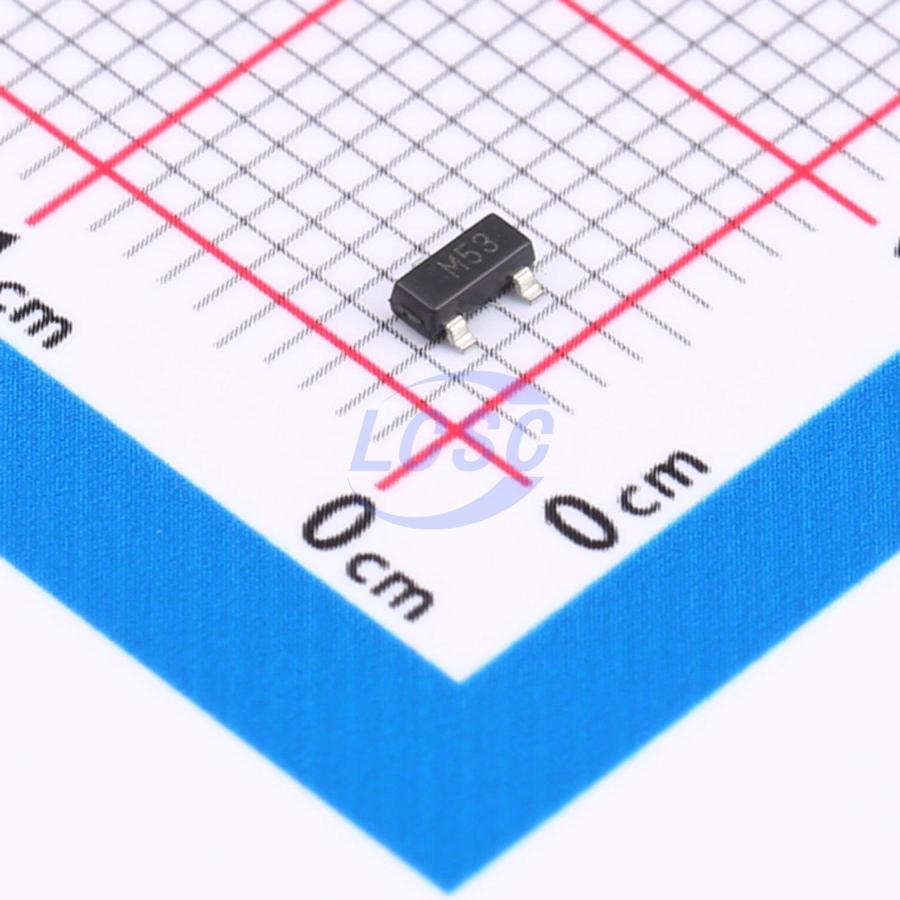

ADM809SARTZ-REEL7
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors RoHS
Microprocessor Supervisory Circuits
- Manufacturer
- ADI
- Manufacturer part #
- ADM809SARTZ-REEL7
- Store part #
- C658503
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,614 in stock
#C658503
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹143.86 | ₹143.86 |
| 10+ | ₹120.39 | ₹1,203.90 |
| 30+ | ₹107.57 | ₹3,227.10 |
| 100+ | ₹93.01 | ₹9,301.00 |
| 500+ | ₹86.48 | ₹43,240.00 |
| 1,000+ | ₹83.45 | ₹83,450.00 |
1 × ₹143.86
₹143.86
excl. GST
₹169.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ADM809SARTZ-REEL7
₹143.86 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TA)
- Reset Timeout
- 240ms
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 17uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.006 g
Overview
The ADM803/ADM809/ADM810 supervisory circuits monitor the power supply voltage in microprocessor systems. They provide a reset output during power-up, power-down, and brownout conditions. On power-up, an internal timer holds reset asserted for 240ms. This holds the microprocessor in a reset state until conditions have stabilized. The reset output remains operational with VCC as low as 1V. The ADM803 and ADM809 provide an active low reset signal (RESET), whereas the ADM810 provides an active high signal (RESET) output. The ADM809 and ADM810 have push-pull outputs, whereas the ADM803 has an open-drain output, which requires an external pull-up resistor. Seven reset threshold voltage options are available, suitable for monitoring a variety of supply voltages. The reset comparator features built-in glitch immunity, making it immune to fast transients on VCC. The ADM803/ADM809/ADM810 consume only 17μA, making them suitable for low power, portable equipment. The ADM803 is available in a 3-lead SC70; the ADM809/ADM810 are available in 3-lead SOT-23 and 3-lead SC70 packages.
Applications
- Microprocessor systems
- Computers
- Controllers
- Intelligent instruments
Key features
- Specified over temperature
- Low power consumption: 17μA
- Precision voltage monitor: 2.5V, 3V, 3.3V, 5V options
- Reset assertion down to 1V, VCC
- 140ms minimum power-on reset
- Open-drain RESET output (ADM803)
- Push-pull RESET output (ADM809)
- Push-pull RESET output (ADM810)
- SC70 and SOT-23 packages
Alternatives
Similar parts — check the datasheet before substituting.
