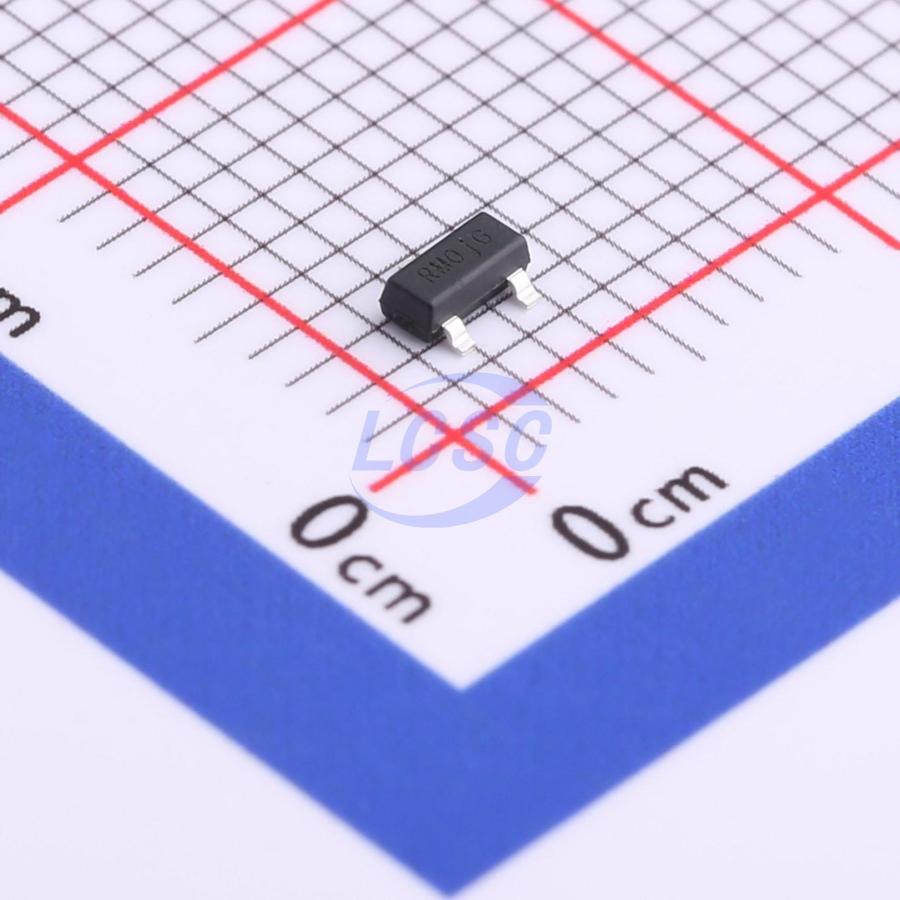

APX809S05-29SA-7
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors RoHS
3-PIN MICROPOWER VOLTAGE DETECTOR
- Manufacturer
- DIODES
- Manufacturer part #
- APX809S05-29SA-7
- Store part #
- C460559
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,685 in stock
#C460559
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.50 | ₹122.50 |
| 50+ | ₹19.01 | ₹950.50 |
| 150+ | ₹16.67 | ₹2,500.50 |
| 500+ | ₹13.73 | ₹6,865.00 |
| 3,000+ | ₹11.77 | ₹35,310.00 |
| 6,000+ | ₹10.98 | ₹65,880.00 |
5 × ₹24.50
₹122.50
excl. GST
₹144.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
APX809S05-29SA-7
₹122.50 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Reset Timeout
- 240ms
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 7uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
The APX809S/810S are used for microprocessor (μP) supervisory circuits to monitor the power supplies in μP and digital systems. They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with +5V, +3.3V, +3.0V and +2.5V powered circuits. These circuits perform a single function: they assert a reset signal whenever the VCC supply voltage declines below a preset threshold, keeping it asserted for at least 240ms after VCC has risen above the reset threshold. Reset thresholds suitable for operation with a variety of supply voltages are available. The APX809S/810S have push pull outputs. The APX809S has an active low RESET output, while the APX810S has an active high RESET output. The reset comparator is designed to ignore fast transients on VCC, and the outputs are guaranteed to be in the correct logic state for VCC down to 1V. Low supply current makes the APX809S/810S ideal for use in portable equipment. The APX809S/810S is available in a 3-pin SOT23 package.
Applications
- Computers
- Controllers
- Intelligent Instruments
- Critical μP and μc Power Monitoring
- Portable/Battery Powered Equipment
Key features
- Precision Monitoring of +2.5V, +3V, +3.3V and +5V PowerSupply Voltages
- Fully Specified Over-temperature
- Available in Three Output Configurations
- Push-Pull RESET Active Low (APX809S)
- Push-Pull RESET Active High (APX810S)
- 200ms Typ Power-On Reset Pulse Width
- 7μA Supply Current (Typ.)
- Guaranteed Reset Valid to VCC = +1V
- No External Components
- SOT23 Available in “Green” Molding Compound (No Br, Sb)
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | APX809S-29SA-7#C460664DIODES · SOT-23 | DIODES | SOT-23 | 1,403 | ₹90.12 · 1,403 in stock | View |
 | CAT809STBI-GT3-MS#C30197469MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 4,600 | ₹8.15 · 4,600 in stock | View |
 | ADM809-5SARTZ-RL7#C3685223ADI · SOT-23-3 | ADI | SOT-23-3 | 264 | ₹326.05 · 264 in stock | View |
 | MAX809SEUR+T(LX)#C49001783lingxingic · SOT-23-3 | lingxingic | SOT-23-3 | 2,200 | ₹5.28 · 2,200 in stock | View |
 | ADM809SARTZ-REEL7#C658503ADI · SOT-23 | ADI | SOT-23 | 3,612 | ₹143.86 · 3,612 in stock | View |
