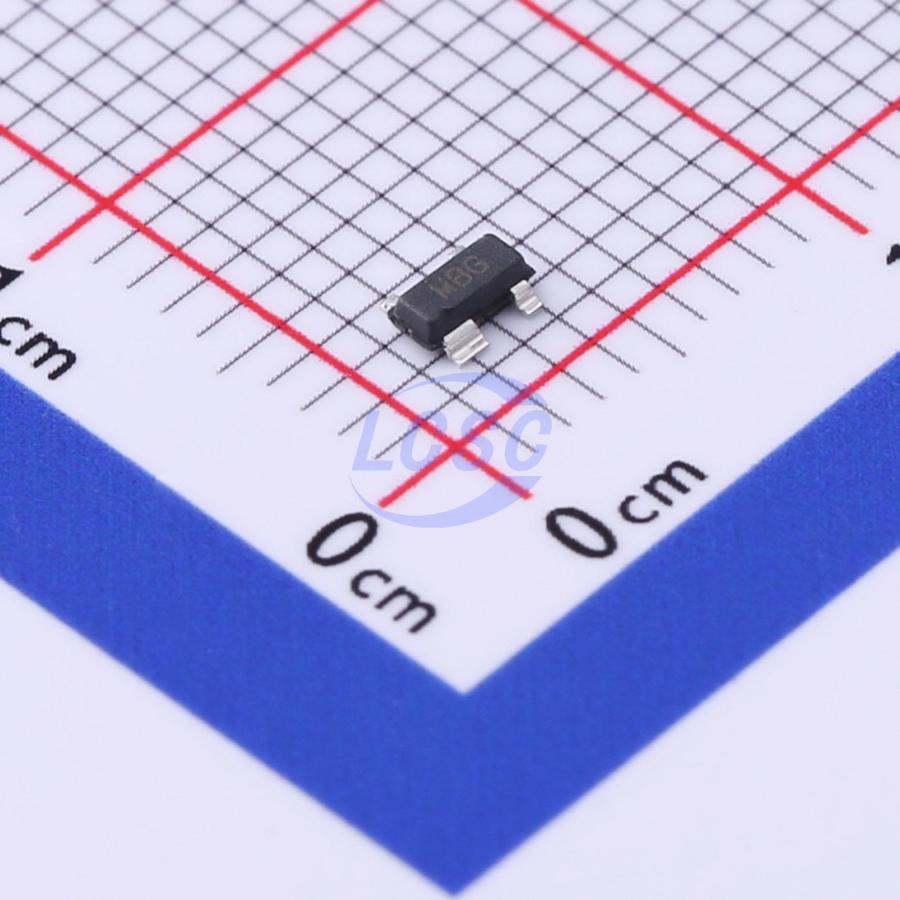

ADM811TARTZ-REEL7
140ms Manual reset input Active Low 1V~5.5V 1 SOT-143-4 Supervisors RoHS
Microprocessor Supervisory Devices
- Manufacturer
- ADI
- Manufacturer part #
- ADM811TARTZ-REEL7
- Store part #
- C462205
- Package / case
- SOT-143-4
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,514 in stock
#C462205
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹238.21 | ₹238.21 |
| 10+ | ₹200.98 | ₹2,009.80 |
| 30+ | ₹180.54 | ₹5,416.20 |
| 100+ | ₹157.52 | ₹15,752.00 |
| 500+ | ₹147.18 | ₹73,590.00 |
| 1,000+ | ₹142.67 | ₹1,42,670.00 |
1 × ₹238.21
₹238.21
excl. GST
₹281.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ADM811TARTZ-REEL7
₹238.21 for 1 + GST
Specifications
- Reset Timeout
- 140ms
- output type
- Push-pull
- Operating Temperature
- -40℃~+85℃@(TA)
- Function
- Manual reset input
- Reset Active Level
- Active Low
- standby current
- 5uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Simple Reset/Power-On Reset
- Threshold Voltage
- 3.08V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.028 g
Overview
The ADM811/ADM812 are reliable voltage monitoring devices suitable for use in most voltage monitoring applications. The ADM811/ADM812 are designed to monitor six different voltages, each allowing a 5% or 10% degradation of standard PSU voltages before a reset occurs. These voltages have been selected for the effective monitoring of 2.5V, 3V, 3.3V, and 5V supply voltage levels. Included in this circuit is a debounced manual reset input. Reset can be activated using an electrical switch (or an input from another digital device) or by a degradation of the supply voltage. The manual reset function is very useful, especially if the circuit in which the ADM811/ADM812 are operating enters into a state that can only be detected by the user. Allowing the user to reset a system manually can reduce the damage or danger that could otherwise be caused by an out-of-control or locked system.
Applications
- Microprocessor systems
- Controllers
- Intelligent instruments
- Automotive systems
- Safety systems
- Portable instruments
Key features
- Superior upgrade for MAX811/MAX812
- Specified over temperature
- Low power consumption: 5μA typical
- Precision voltage monitor: 2.5V, 3V, 3.3V, 5V options
- Reset assertion down to 1Vcc
- Power-on reset: 140ms minimum
- Logic low RESET output (ADM811)
- Logic high RESET output (ADM812)
- Built-in manual reset
