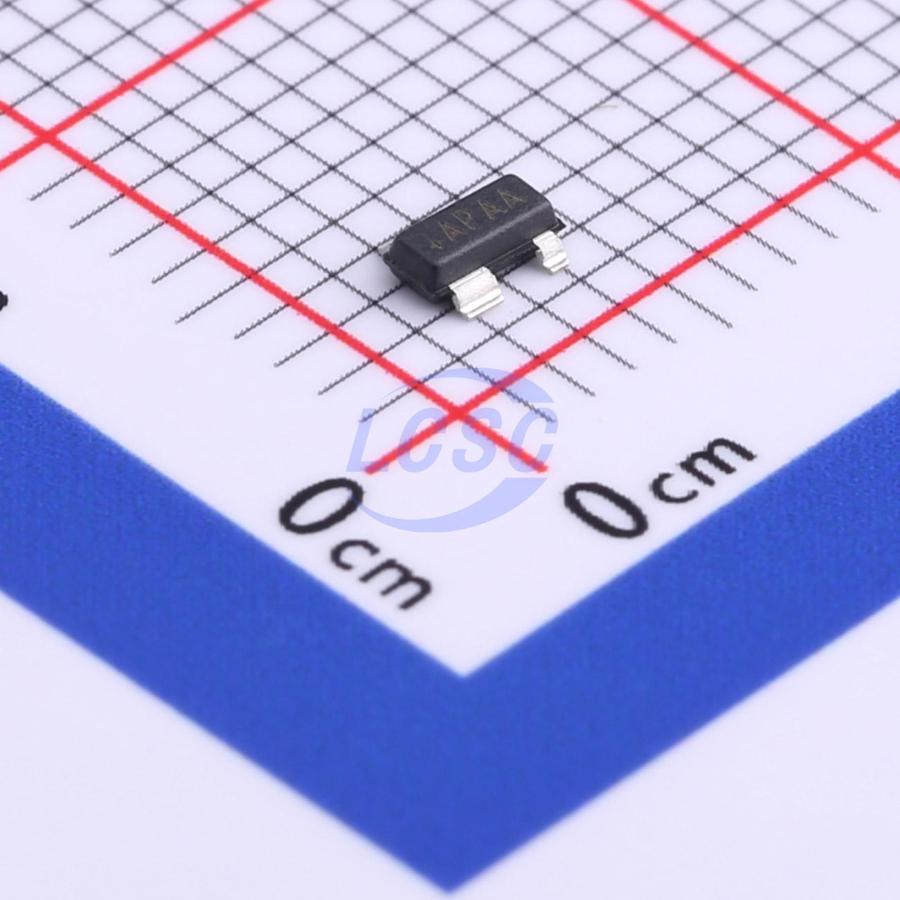

MAX811TEUS+T
140ms Manual reset input Active Low 1V~5.5V 1 SOT-143 Supervisors RoHS
4-Pin μP Voltage Monitors with Manual Reset Input
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX811TEUS+T
- Store part #
- C7272
- Package / case
- SOT-143
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,595 in stock
#C7272
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.37 | ₹80.37 |
| 10+ | ₹64.09 | ₹640.90 |
| 30+ | ₹57.13 | ₹1,713.90 |
| 100+ | ₹48.45 | ₹4,845.00 |
| 500+ | ₹44.53 | ₹22,265.00 |
| 1,000+ | ₹42.36 | ₹42,360.00 |
1 × ₹80.37
₹80.37
excl. GST
₹94.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX811TEUS+T
₹80.37 for 1 + GST
Specifications
- Reset Timeout
- 140ms
- Operating Temperature
- -40℃~+85℃
- output type
- Push-pull
- Function
- Manual reset input
- Reset Active Level
- Active Low
- standby current
- 2.7uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.08V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.037 g
Overview
The MAX811/MAX812 are low-power microprocessor (μP) supervisory circuits used to monitor power supplies in μP and digital systems. They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with 5V powered or 3V powered circuits. The MAX811/MAX812 also provide a debounced manual reset input. These devices perform a single function: They assert a reset signal whenever the VCC supply voltage falls below a preset threshold, keeping it asserted for at least 140ms after VCC has risen above the reset threshold. The only difference between the two devices is that the MAX811 has an active - low RESET output (which is guaranteed to be in the correct state for VCC down to 1V), while the MAX812 has an active - high RESET output. The reset comparator is designed to ignore fast transients on VCC. Reset thresholds are available for operation with a variety of supply voltages. Low supply current makes the MAX811/MAX812 ideal for use in portable equipment. The devices come in a 4 - pin SOT143 package.
Applications
- Computers
- Controllers
- Intelligent Instruments
- Critical μP and μC Power Monitoring
- Portable/Battery - Powered Equipment
Key features
- Integrated Voltage Monitor Increases System Robustness with Added Manual Reset
- Precision Monitoring of 3V, 3.3V, and 5V Power - Supply Voltages
- 140ms Min Power - On - Reset Pulse Width
- RESET Output (MAX811), RESET Output (MAX812) Guaranteed Over Temperature
- Guaranteed RESET Valid to VCC = 1V (MAX811)
- Power - Supply Transient Immunity
- Saves Board Space
- No External Components
- 4 - Pin SOT143 Package
- Low Power Consumption Simplifies Power - Supply Requirements
- 6µA Supply Current
