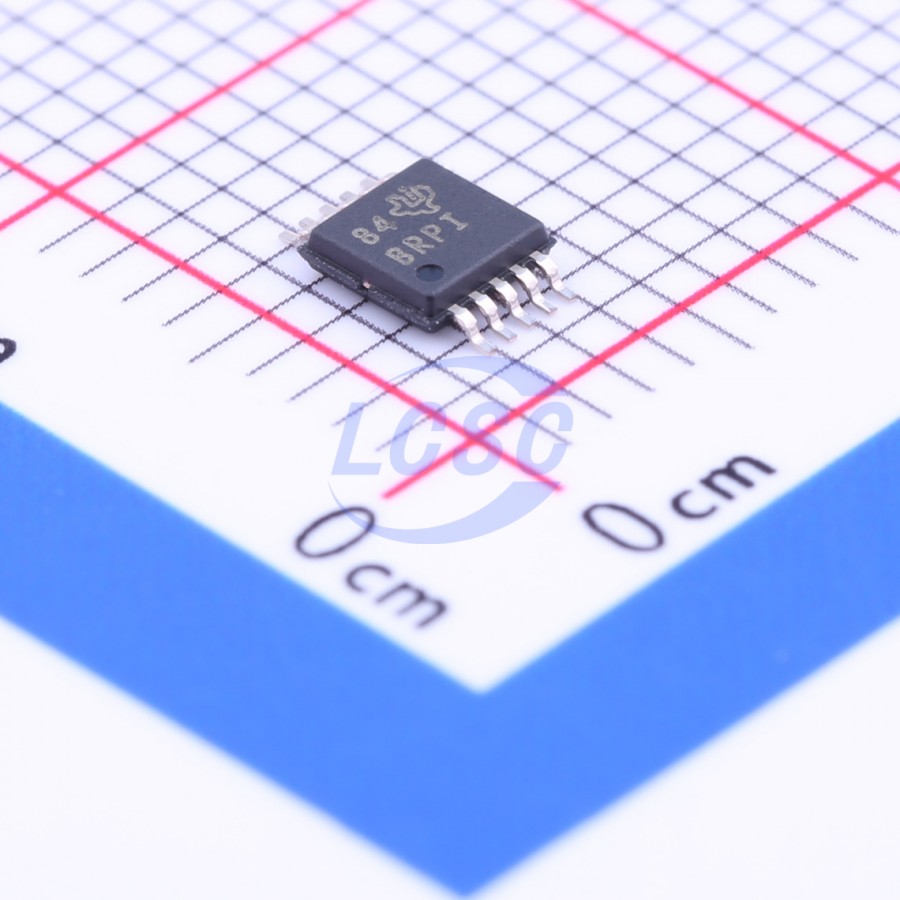

ADS1015IDGSR

The ADS1013, ADS1014, and ADS1015 devices (ADS101x) are precision, low-power, 12-bit, I2C-compatible, analog-to-digital converters (ADCs) offered in an ultra-small, leadless, X2QFN-10 package, and a VSSOP-10 package. The ADS101x devices incorporate a low-drift voltage reference and an oscillator. The ADS1014 and ADS1015 also incorporate a programmable gain amplifier (PGA) and a digital comparator. These features, along with a wide operating supply range, make the ADS101x well suited for power- and space-constrained, sensor measurement applications. The ADS101x perform conversions at data rates up to 3300 samples per second (SPS). The PGA offers input ranges from ±256 mV to ±6.144 V, allowing precise large- and small-signal measurements. The ADS1015 features an input multiplexer (MUX) that allows two differential or four single-ended input measurements. Use the digital comparator in the ADS1014 and ADS1015 for under- and overvoltage detection. The ADS101x operate in either continuous-conversion mode or single-shot mode. The devices are automatically powered down after one conversion in single-shot mode; therefore, power consumption is significantly reduced during idle periods.

Applications

• Portable Instrumentation
• Battery Voltage and Current Monitoring
• Temperature Measurement Systems
• Consumer Electronics
• Factory Automation and Process Control

Key features

• Ultra-Small X2QFN Package: 2 mm × 1.5 mm × 0.4 mm
• 12-Bit Noise-Free Resolution
• Wide Supply Range: 2.0 V to 5.5 V
• Low Current Consumption: 150 μA (Continuous-Conversion Mode)
• Programmable Data Rate: 128 SPS to 3.3 kSPS
• Single-Cycle Settling
• Internal Low-Drift Voltage Reference
• Internal Oscillator
• I2C Interface: Four Pin-Selectable Addresses
• Four Single-Ended or Two Differential Inputs (ADS1015)
• Programmable Comparator (ADS1014 and ADS1015)
• Operating Temperature Range: -40°C to +125°C
