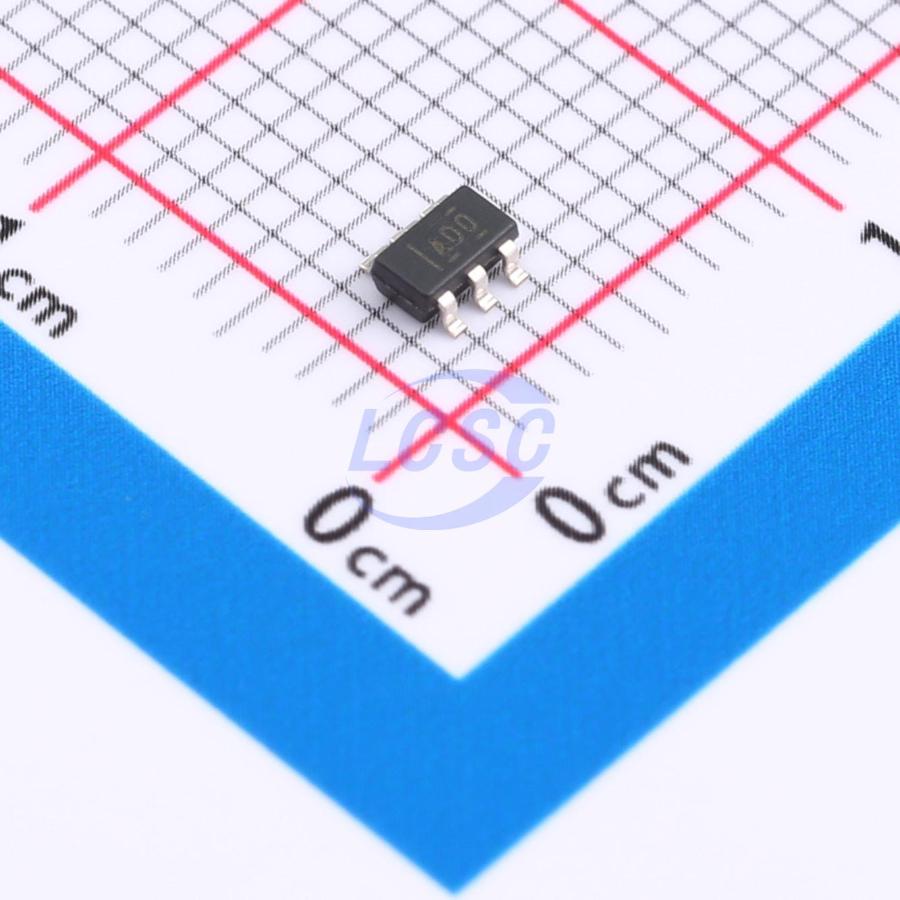

ADS1100A0IDBVT

I2C 2.7V~5.5V SOT-23-6 Analog to Digital Converters (ADC) RoHS

SOT-23-6ROHS3 CompliantActive

16-Bit Analog-to-Digital Converter

Manufacturer: TI
Manufacturer part #: ADS1100A0IDBVT
Store part #: C2861235
Package / case: SOT-23-6
Category: Analog to Digital Converters (ADC)
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,870 in stock

#C2861235

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹247.61	₹247.61
10+	₹211.84	₹2,118.40
30+	₹189.28	₹5,678.40
250+	₹166.30	₹41,575.00
500+	₹155.90	₹77,950.00
1,000+	₹151.34	₹1,51,340.00

Quantity (min 1)

1 × ₹247.61

₹247.61

excl. GST

₹292.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 250 per reel

ADS1100A0IDBVT

₹247.61 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Interface: I2C
Quiescent Current (Iq): 50nA
Voltage - Supply: 2.7V~5.5V
Number of Channels: 1
Voltage Reference: Built-in
Clock/Oscillator: Built-in
Clock Frequency: 275kHz
Features: Auto calibration;Power-on reset;Soft reset
Resolution(Bits): 8Hz;16
ADC architecture: Sigma-Delta
Programmable Gain: Support

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 250 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.04 g

Overview

The ADS1100 is a precision, continuously self-calibrating Analog-to-Digital (A/D) converter with differential inputs and up to 16 bits of resolution in a small SOT23-6 package. Conversions are performed ratiometrically, using the power supply as the reference voltage. The ADS1100 uses an I2C-compatible serial interface and operates from a single power supply ranging from 2.7V to 5.5V. The ADS1100 can perform conversions at rates of 8, 16, 32, or 128 samples per second. The onboard Programmable Gain Amplifier (PGA), which offers gains of up to 8, allows smaller signals to be measured with high resolution. In single-conversion mode, the ADS1100 automatically powers down after a conversion, greatly reducing current consumption during idle periods. The ADS1100 is designed for applications requiring highresolution measurement, where space and power consumption are major considerations. Typical applications include portable instrumentation, industrial process control, and smart transmitters.

Applications

PORTABLE INSTRUMENTATION
INDUSTRIAL PROCESS CONTROL
SMART TRANSMITTERS
CONSUMER GOODS
FACTORY AUTOMATION
TEMPERATURE MEASUREMENT

Key features

COMPLETE DATA ACQUISITION SYSTEM IN ATINY SOT23-6 PACKAGE
16-BITS NO MISSING CODES
INL: 0.0125% of FSR MAX
CONTINUOUS SELF-CALIBRATION
SINGLE-CYCLE CONVERSION
PROGRAMMABLE GAIN AMPLIFIER GAIN = 1, 2, 4, OR 8
LOW NOISE: 4μvp-p
PROGRAMMABLE DATA RATE: 8SPS to 128SPS
INTERNAL SYSTEM CLOCK
I²C INTERFACE
POWER SUPPLY: 2.7V to 5.5V
LOW CURRENT CONSUMPTION: ooμA
AVAILABLE IN EIGHT DIFFERENT ADDRESSES
