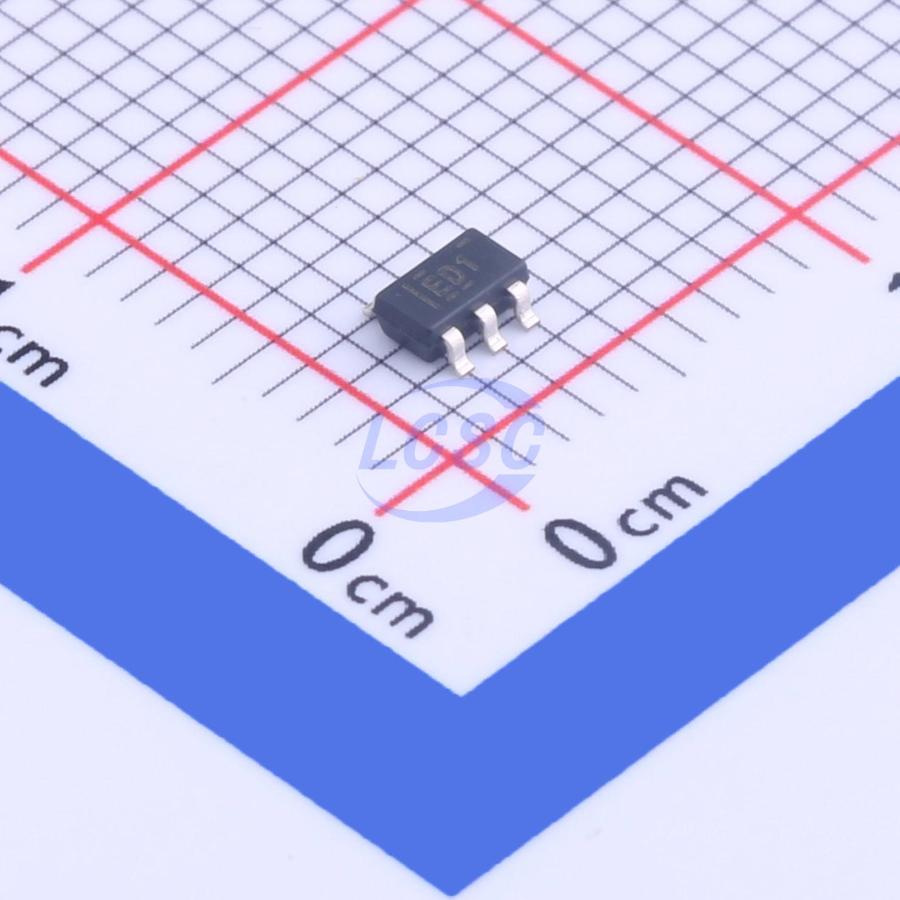

ADS1110A1IDBVR

I2C 2.7V~5.5V SOT-23-6 Analog to Digital Converters (ADC) RoHS

SOT-23-6ROHS3 CompliantActive

16-Bit Analog-to-Digital Converter with Onboard Reference

Manufacturer: TI
Manufacturer part #: ADS1110A1IDBVR
Store part #: C2670231
Package / case: SOT-23-6
Category: Analog to Digital Converters (ADC)
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,139 in stock

#C2670231

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹746.67	₹746.67
10+	₹622.48	₹6,224.80
30+	₹548.75	₹16,462.50
100+	₹473.94	₹47,394.00
500+	₹439.57	₹2,19,785.00
1,000+	₹424.13	₹4,24,130.00

Quantity (min 1)

1 × ₹746.67

₹746.67

excl. GST

₹881.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

ADS1110A1IDBVR

₹746.67 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Interface: I2C
Quiescent Current (Iq): 50nA
Voltage - Supply: 2.7V~5.5V
Number of Channels: 1
Voltage Reference: Built-in
Clock/Oscillator: Built-in
Features: Auto calibration;Power-on reset;Soft reset
Resolution(Bits): 15Hz;16;30Hz;60Hz;240Hz
ADC architecture: Sigma-Delta
Programmable Gain: Support

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.025 g

Overview

The ADS1110 is a precision, continuously self−calibrating Analog-to-Digital (A/D) converter with differential inputs and up to 16 bits of resolution in a small SOT23-6 package. The onboard 2.048V reference provides an input range of ±2.048V differentially. The ADS1110 uses an I²C -compatible serial interface and operates from a single power supply ranging from 2.7V to 5.5V. The ADS1110 can perform conversions at rates of 15, 30, 60, or 240 samples per second. The onboard programmable gain amplifier (PGA), which offers gains of up to 8, allows smaller signals to be measured with high resolution. In single-conversion mode, the ADS1110 automatically powers down after a conversion, greatly reducing current consumption during idle periods. The ADS1110 is designed for applications requiring high-resolution measurement, where space and power consumption are major considerations. Typical applications include portable instrumentation, industrial process control, and smart transmitters.

Applications

PORTABLE INSTRUMENTATION
INDUSTRIAL PROCESS CONTROL
SMART TRANSMITTERS
CONSUMER GOODS
FACTORY AUTOMATION
TEMPERATURE MEASUREMENT

Key features

COMPLETE DATA ACQUISITION SYSTEM IN A TINY SOT23-6 PACKAGE
ONBOARD REFERENCE: Accuracy: 2.048V ±0.05%, Drift: 5ppm/°C
ONBOARD PGA
ONBOARD OSCILLATOR
16-BITS NO MISSING CODES
INL: 0.01% of FSR max
CONTINUOUS SELF-CALIBRATION
SINGLE-CYCLE CONVERSION
PROGRAMMABLE DATA RATE: 15SPS TO 240SPS
I²C INTERFACE—EIGHT AVAILABLE ADDRESSES
POWER SUPPLY: 2.7V to 5.5V
LOW CURRENT CONSUMPTION: 240μA
