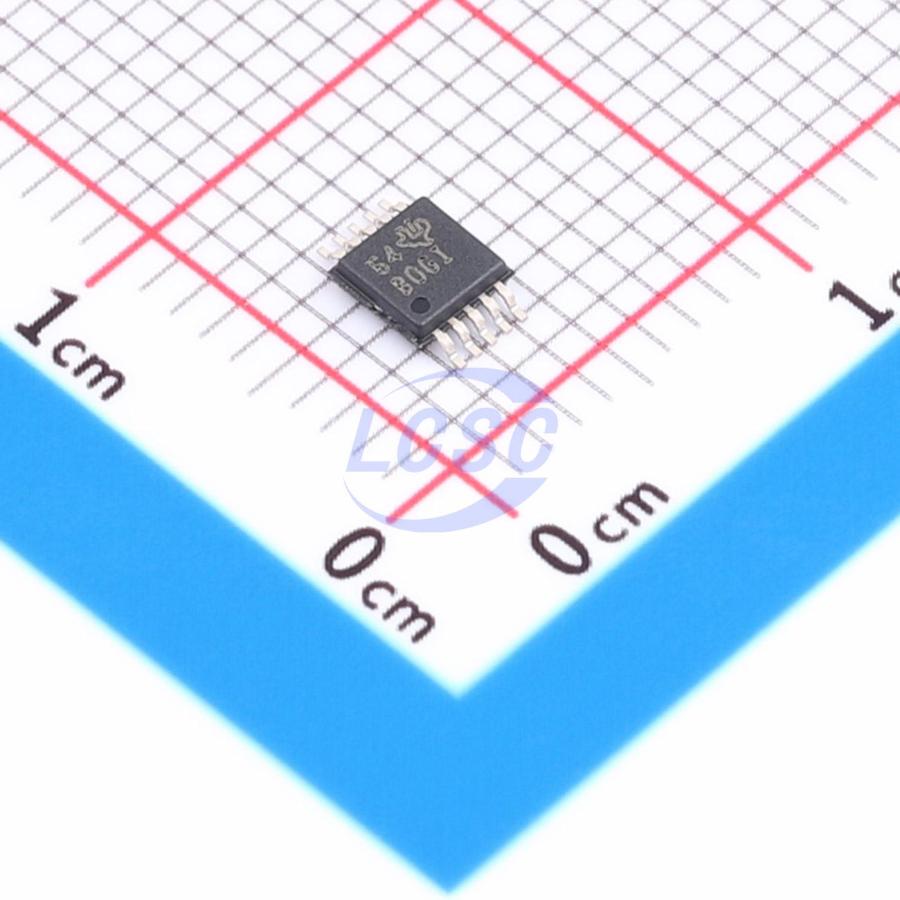

ADS1115IDGST

The ADS1113, ADS1114, and ADS1115 devices (ADS111x) are precision, low-power, 16-bit, I2C-compatible, analog-to-digital converters (ADCs) offered in an ultra-small, leadless, X2QFN-10 package, and a VSSOP-10 package. The ADS111x devices incorporate a low-drift voltage reference and an oscillator. The ADS1114 and ADS1115 also incorporate a programmable gain amplifier (PGA) and a digital comparator. These features, along with a wide operating supply range, make the ADS111x well suited for power- and space-constrained, sensor measurement applications. The ADS111x perform conversions at data rates up to 860 samples per second (SPS). The PGA offers input ranges from ±256 mV to ±6.144 V, allowing precise large- and small-signal measurements. The ADS1115 features an input multiplexer (MUX) that allows two differential or four single-ended input measurements. Use the digital comparator in the ADS1114 and ADS1115 for under- and overvoltage detection.

Applications

• Portable Instrumentation
• Battery Voltage and Current Monitoring
• Temperature Measurement Systems
• Consumer Electronics
• Factory Automation and Process Control

Key features

• Ultra-Small X2QFN Package: 2 mm × 1.5 mm × 0.4 mm
• Wide Supply Range: 2.0 V to 5.5 V
• Low Current Consumption: 150 μA (Continuous-Conversion Mode)
• Programmable Data Rate: 8 SPS to 860 SPS
• Single-Cycle Settling
• Internal Low-Drift Voltage Reference
• Internal Oscillator
• I2C Interface: Four Pin-Selectable Addresses
• Four Single-Ended or Two Differential Inputs (ADS1115)
• Programmable Comparator (ADS1114 and ADS1115)
• Operating Temperature Range: -40°C to +125°C
