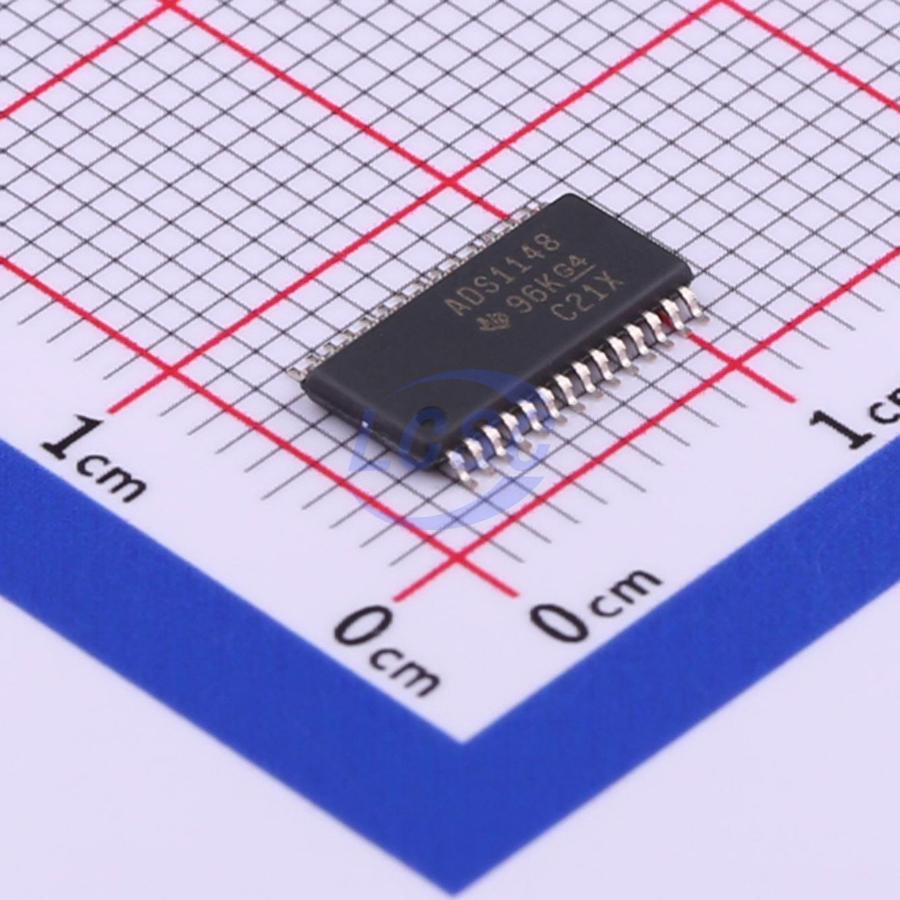

ADS1148IPWR

SPI 2.7V~5.25V TSSOP-28 Analog to Digital Converters (ADC) RoHS

TSSOP-28ROHS3 CompliantActive

16-Bit, Analog-to-Digital Converters With Programmable Gain Amplifier(PGA) for Sensor Measurement

Manufacturer: TI
Manufacturer part #: ADS1148IPWR
Store part #: C82230
Package / case: TSSOP-28
Category: Analog to Digital Converters (ADC)
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,916 in stock

#C82230

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹765.47	₹765.47
10+	₹647.93	₹6,479.30
30+	₹578.18	₹17,345.40
100+	₹507.57	₹50,757.00
500+	₹474.97	₹2,37,485.00
1,000+	₹460.21	₹4,60,210.00

Quantity (min 1)

1 × ₹765.47

₹765.47

excl. GST

₹903.25 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

ADS1148IPWR

₹765.47 for 1 + GST

Specifications

Operating Temperature: -40℃~+105℃
Interface: SPI
Quiescent Current (Iq): 100nA
Voltage - Supply: 2.7V~5.25V
Number of Channels: 8
Integral non - linearity: 1LSB
Voltage Reference: Built-in;External
Clock/Oscillator: Built-in
Clock Frequency: 4.096MHz
Features: Multiplexers;Built-in temperature sensor;Integrated modulator;Built-in digital filter;Auto calibration;Bipolar power supply
Resolution(Bits): 2kHz;16
ADC architecture: Sigma-Delta
Programmable Gain: Support

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.211 g

Overview

The ADS1146, ADS1147, and ADS1148 devices are precision, 16-bit analog-to-digital converters (ADCs) that include many integrated features to reduce system cost and component count for sensor measurement applications. The devices feature a low-noise, programmable gain amplifier (PGA), a precision delta-sigma (ΔΣ) ADC with a single-cycle settling digital filter, and an internal oscillator. The ADS1147 and ADS1148 devices also provide a builtin, low-drift voltage reference, and two matched programmable excitation current sources (IDACs). An input multiplexer supports four differential inputs for the ADS1148, two for the ADS1147, and one for the ADS1146. In addition, the multiplexer integrates sensor burn-out detection, voltage bias for thermocouples, system monitoring, and general purpose digital I/Os (ADS1147 and ADS1148). The PGA provides selectable gains up to 128 V/V. These features provide a complete front-end solution for temperature sensor measurement applications including thermocouples, thermistors, and resistance temperature detectors (RTDs) and other small signal measurements including resistive bridge sensors. The digital filter settles in a single cycle to support fast channel cycling when using the input multiplexer and provides data rates up to 2 kSPS. For data rates of 20 SPS or less, both 50-Hz and 60-Hz interference are rejected by the filter.

Applications

Temperature Measurement: RTDs, Thermocouples, and Thermistors
Pressure Measurement
Flow Meters
Factory Automation and Process Control

Key features

Programmable Data Rates Up to 2 kSPS
Single-Cycle Settling for All Data Rates
Simultaneous 50-Hz and 60-Hz Rejection at 20 SPS
Analog Multiplexer With 8 (ADS1148) and 4 (ADS1147) Independently Selectable Inputs
Programmable Gain: 1 V/V to 128 V/V
Dual-Matched Programmable Excitation Current Sources
Low-Drift Internal 2.048-V Reference
Sensor Burnout Detection
4 or 8 General-Purpose I/Os (ADS1147 and ADS1148)
Internal Temperature Sensor
Power Supply and VREF Monitoring (ADS1147 and ADS1148)
Self and System Calibration
SPI™-Compatible Serial Interface
Analog Supply: Unipolar (2.7 V to 5.25 V) or Bipolar (±2.5 V)
Digital Supply: 2.7 V to 5.25 V
