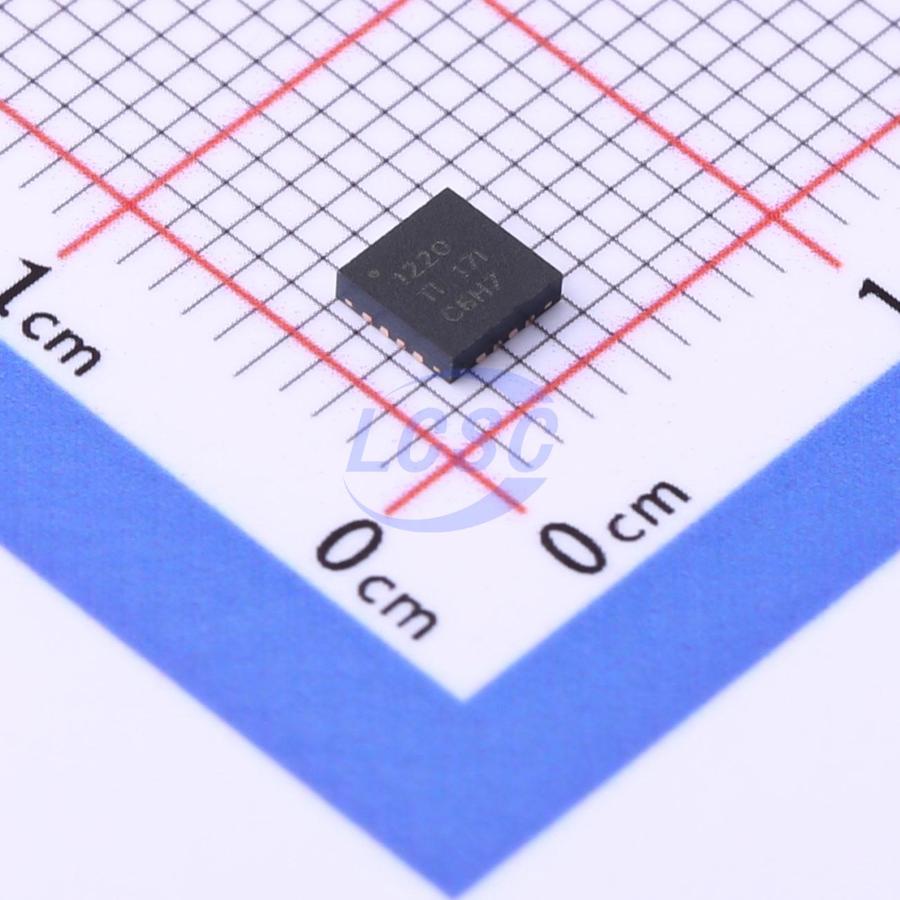

ADS1220IRVAR

The ADS1220 is a precision 24-bit ADC that integrates multiple features to reduce system cost and component count in small sensor signal measurement applications. The device offers two differential or four single-ended inputs via an input MUX, a low-noise programmable gain amplifier (PGA), two programmable excitation current sources, a voltage reference, an oscillator, a low-side switch, and a precision temperature sensor. The device performs conversions at data rates up to 2000 SPS and is capable of settling within a single cycle. For industrial applications in noisy environments, the digital filter provides simultaneous 50Hz and 60Hz rejection at a 20 SPS data rate. The internal PGA offers gains up to 128V/V, making the ADS1220 well-suited for small sensor signal measurement applications such as RTDs, thermocouples, thermistors, and resistive bridge sensors. The device supports measurement of pseudo-differential or fully differential signals when using the PGA. It can also be configured to disable the internal PGA while still providing high input impedance and gains up to 4V/V for single-ended measurements. Operating in duty-cycle mode with the PGA disabled, power consumption can be as low as 120μA. The ADS1220 is available in a leadless VQFN-16 or TSSOP-16 package, rated for an operating temperature range of -40°C to +125°C.

Applications

• Temperature sensor measurement:
• Thermistors
• Thermocouples
• RTD: 2-wire, 3-wire, or 4-wire types
• Resistive bridge sensor measurement:
• Pressure sensors
• Strain gauges
• Weighing scales
• Portable instrumentation
• Factory automation and process control

Key features

• Low current: as low as 120μA (typical) in duty-cycle mode
• Wide supply voltage range: 2.3V to 5.5V
• Programmable gain: 1V/V to 128V/V
• Programmable data rate: up to 2kSPS
• Up to 20-bit effective resolution
• Single-cycle settling digital filter with 50Hz and 60Hz harmonic rejection at 20SPS
• Two differential inputs or four single-ended inputs
• Dual matched programmable current sources: 10μA to 1.5mA
• Integrated 2.048V reference: 5ppm/°C drift (typical)
• Integrated 2% precision oscillator
• Integrated temperature sensor: 0.5°C accuracy (typical)
• SPI-compatible interface (Mode 1)
• Package: 3.5mm×3.5mm×0.9mm ultra-thin VQFN
