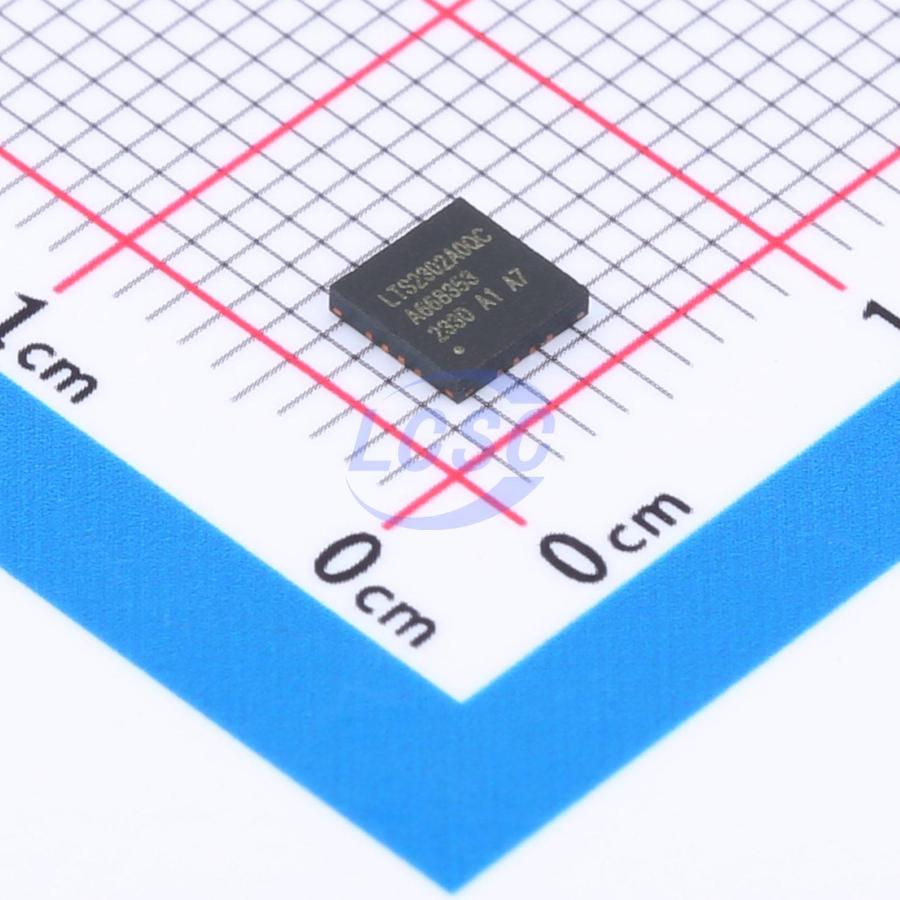

LTS2302A0QC7
3V~5.5V QFN-16(4x4) Analog to Digital Converters (ADC)
QFN-16(4x4)RoHSActive
Bridge Sensor High-Integration Interface IC
- Manufacturer
- LETO
- Manufacturer part #
- LTS2302A0QC7
- Store part #
- C20071235
- Package / case
- QFN-16(4x4)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17,645 in stock
#C20071235
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.62 | ₹55.62 |
| 10+ | ₹43.46 | ₹434.60 |
| 30+ | ₹38.25 | ₹1,147.50 |
| 100+ | ₹31.95 | ₹3,195.00 |
| 500+ | ₹29.12 | ₹14,560.00 |
| 1,000+ | ₹27.39 | ₹27,390.00 |
1 × ₹55.62
₹55.62
excl. GST
₹65.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LTS2302A0QC7
₹55.62 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Interface
- I2C;SPI
- Quiescent Current (Iq)
- 6uA
- Voltage - Supply
- 3V~5.5V
- Number of Channels
- 1
- Integral non - linearity
- 1LSB
- Voltage Reference
- Built-in
- Clock/Oscillator
- Built-in
- Clock Frequency
- 1MHz
- Features
- Built-in temperature sensor;Integrated modulator;Built-in digital filter;Soft reset;Power-on reset
- Resolution(Bits)
- -;24
- DNL (LSB)
- 0.5LSB
- ADC architecture
- Sigma-Delta
- Programmable Gain
- Support
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.08 g
Overview
LTS2302 is a highly integrated, low-cost, high-precision interface chip designed for bridge sensors, providing signal acquisition, amplification, and calibration. LTS2302 integrates a low-noise instrumentation amplifier (PGA), a low-power 24-bit Σ-Δ ADC, a HALFBAND filter, and a 12-bit DAC. Through an external JFET, LTS2302 also supports overvoltage protection. LTS2302 supports both I2C/SPI digital output and analog output.
Applications
- Pressure sensor
- Magnetic sensor
- Strain gauge
Key features
- Analog Features:
- High-precision instrumentation amplifier with 1X~256X variable gain
- 24-bit ADC for main signal/temperature measurement
- Internal and external temperature sensor support
- 12-bit DAC
- Digital Features:
- Multiple OSR settings
- SPI and I2C interface support
- Analog Output Characteristics:
- Ratiometric or absolute voltage output
- Clamp function support
- Sensor Diagnostic Features:
- JFET-based overvoltage protection support
- Operating Temperature Range: -40°C~125°C (junction temperature)
