TIDatasheet (PDF)

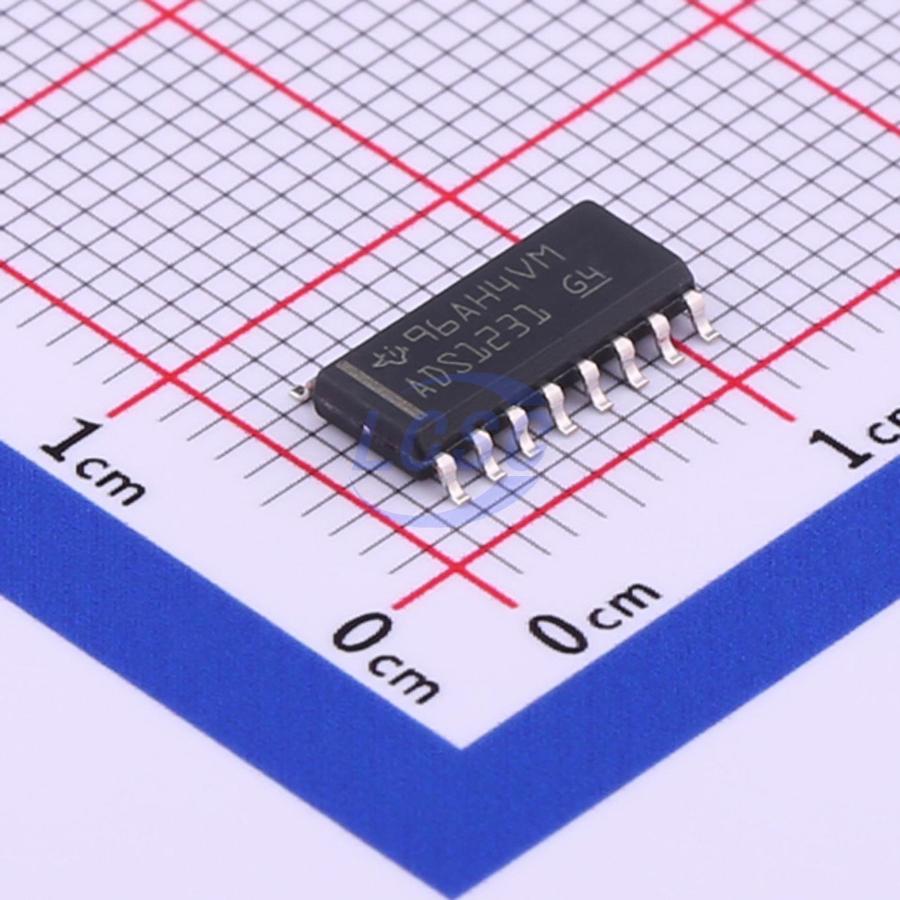

ADS1231IDR
Serial port 3V~5.3V SOIC-16 Analog to Digital Converters (ADC) RoHS
SOIC-16ROHS3 CompliantActive
24-Bit Analog-to-Digital Converter for Bridge Sensors
- Manufacturer
- TI
- Manufacturer part #
- ADS1231IDR
- Store part #
- C486034
- Package / case
- SOIC-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,805 in stock
#C486034
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹265.54 | ₹265.54 |
| 10+ | ₹230.12 | ₹2,301.20 |
| 30+ | ₹208.17 | ₹6,245.10 |
| 100+ | ₹173.19 | ₹17,319.00 |
| 500+ | ₹162.98 | ₹81,490.00 |
| 1,000+ | ₹158.63 | ₹1,58,630.00 |
1 × ₹265.54
₹265.54
excl. GST
₹313.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ADS1231IDR
₹265.54 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- Serial port
- Quiescent Current (Iq)
- 300nA
- Voltage - Supply
- 3V~5.3V
- Number of Channels
- 1
- Voltage Reference
- External
- Clock/Oscillator
- Built-in
- Clock Frequency
- 4.9152MHz;1MHz~6MHz
- Features
- Bipolar input;Integrated modulator;Built-in digital filter
- Resolution(Bits)
- 10Hz;24;80Hz
- ADC architecture
- Sigma-Delta
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.225 g
Overview
The ADS1231 is a precision, 24-bit analog-to-digital converter (ADC). With an onboard low-noise amplifier, onboard oscillator, precision third-order 24-bit delta-sigma (ΔΣ) modulator, and bridge power switch, the ADS1231 provides a complete front-end solution for bridge sensor applications including weigh scales, strain gauges, and load cells. The low-noise amplifier has a gain of 128, supporting a full-scale differential input of ±19.5mV. The ΔΣ ADC has 24-bit resolution and is comprised of a third-order modulator and fourth-order digital filter. Two data rates are supported: 10SPS (with both 50Hz and 60Hz rejection) and 80SPS. The ADS1231 can be put in a low-power standby mode or shut off completely in power-down mode. The ADS1231 is controlled by dedicated pins; there are no digital registers to program. Data are output over an easily-isolated serial interface that connects directly to the MSP430 and other microcontrollers. The ADS1231 is available in an SO-16 package and is specified from -40°C to +85°C.
Applications
- Weigh Scales
- Strain Gauges
- Load Cells
- Industrial Process Control
Key features
- Complete Front-End for Bridge Sensors
- Internal Amplifier, Gain of 128
- Internal Oscillator
- Low-Side Power Switch for Bridge Sensor
- Low Noise: 35nVrms
- Selectable Data Rates: 10SPS or 80SPS
- Simultaneous 50Hz and 60Hz Rejection at 10SPS
- Input EMI Filter
- External Voltage Reference up to 5V for Ratiometric Measurements
- Simple, Pin-Driven Control
- Two-Wire Serial Digital Interface
- Supply Range: 3V to 5.3V
- Package: SOIC-16
- Temperature Range: -40°C to +85°C
