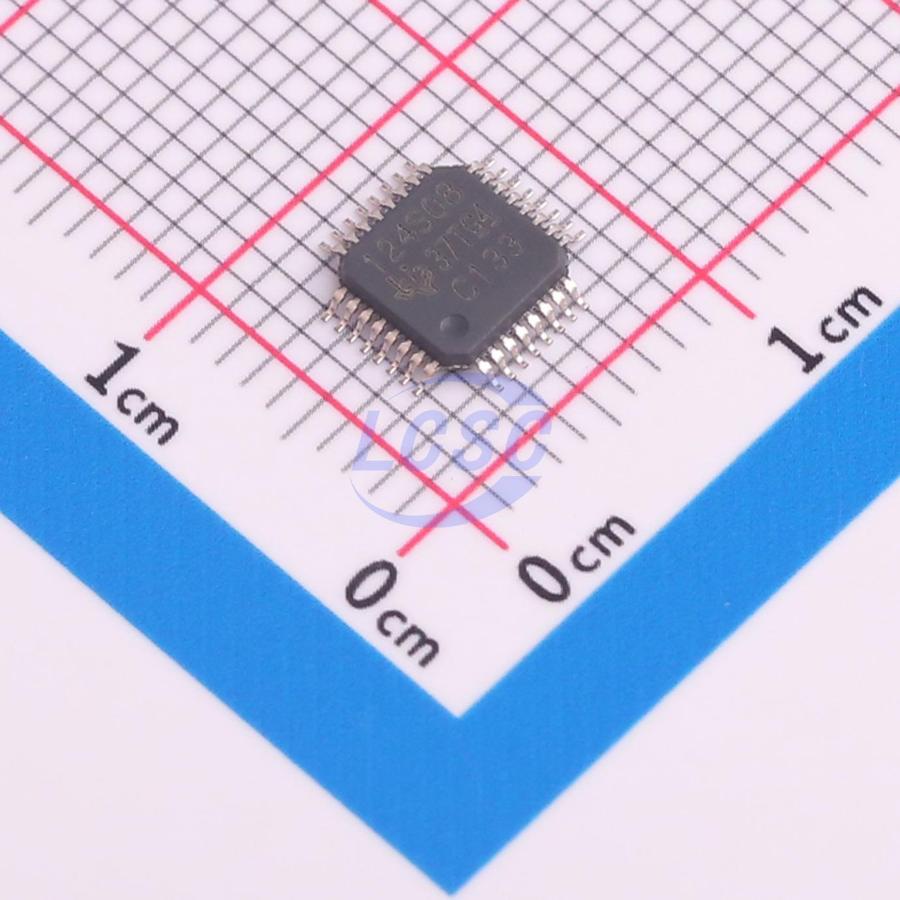

ADS124S08IPBSR

24 Bit Analog to Digital Converter 12 Input Sigma-Delta TQFP-32(5x5)

TQFP-32(5x5)ROHS3 CompliantActive

Low-power, low-noise, highly integrated 6-channel and 12-channel 4kSPS, 24-bit Δ-Σ ADCs with PGA and voltage reference

Manufacturer: TI
Manufacturer part #: ADS124S08IPBSR
Store part #: C2870171
Package / case: TQFP-32(5x5)
Category: Analog to Digital Converters (ADC)
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,380 in stock

#C2870171

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹1,259.05	₹1,259.05
10+	₹1,102.72	₹11,027.20
30+	₹1,007.54	₹30,226.20
100+	₹927.75	₹92,775.00

Quantity (min 1)

1 × ₹1,259.05

₹1,259.05

excl. GST

₹1,485.68 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

ADS124S08IPBSR

₹1,259.05 for 1 + GST

Specifications

Operating Temperature: -50℃~+125℃
Interface: SPI
Quiescent Current (Iq): 280uA
Voltage - Supply: 2.7V~5.25V
Number of Channels: 12
Voltage Reference: Built-in
Clock/Oscillator: Built-in
Clock Frequency: 4.096MHz
Features: Multiplexers;Built-in temperature sensor;Auto calibration;Bipolar power supply;Power-on reset
Resolution(Bits): 4kHz;24
ADC architecture: Sigma-Delta
Programmable Gain: Support

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.483 g

Overview

The ADS124S06 and ADS124S08 are high-precision 24-bit Δ-Σ ADCs that combine low power consumption with multiple integrated features to reduce system cost and component count in small sensor signal measurement applications. Both ADCs feature a configurable digital filter that provides low-latency conversion results and 50Hz or 60Hz noise rejection in noisy industrial environments. The PGA offers low-noise performance with selectable gains from 1 to 128, enabling amplification of low-level signals in resistive bridge or thermocouple applications. Additionally, both devices integrate a low-drift 2.5V voltage reference to minimize PCB area. Two programmable IDACs are also included for accurate RTD biasing. The input multiplexer supports 12 inputs for the ADS124S08 and 6 inputs for the ADS124S06. These inputs can be connected to the ADC in any combination, enhancing design flexibility. Both devices also include sensor burn-out detection, thermocouple voltage biasing, system monitoring functions, and four general-purpose I/Os. Both devices are available in an ultra-thin VQFN-32 or TQFP-32 package.

Applications

Sensors and transmitters: temperature, pressure, stress, flow
PLC and DCS
Analog input modules
Temperature controllers
Environmental test chambers, industrial ovens

Key features

Low power consumption: as low as 280μA
Low-noise PGA: 19nV<sub>RMS</sub> (at gain = 128)
Programmable gain: 1 to 128
Programmable data rate: 2.5SPS to 4kSPS
Low-latency digital filter with simultaneous 50Hz and 60Hz rejection at ≤20SPS
Analog multiplexer with 12 independently selectable inputs (ADS124S08) or 6 (ADS124S06)
Two matched, programmable sensor excitation current sources: 10μA to 2000μA
Internal reference: 2.5V, max drift 10ppm/°C
Internal oscillator: 4.096MHz, ±1.5% accuracy
Internal temperature sensor
Enhanced fault detection
Self offset calibration and system calibration
4 general-purpose I/Os
SPI-compatible interface with optional CRC
Analog supply: unipolar (2.7V to 5.25V) or bipolar (±2.5V)
Digital supply: 2.7V to 3.6V
Operating temperature: -50°C to +125°C
