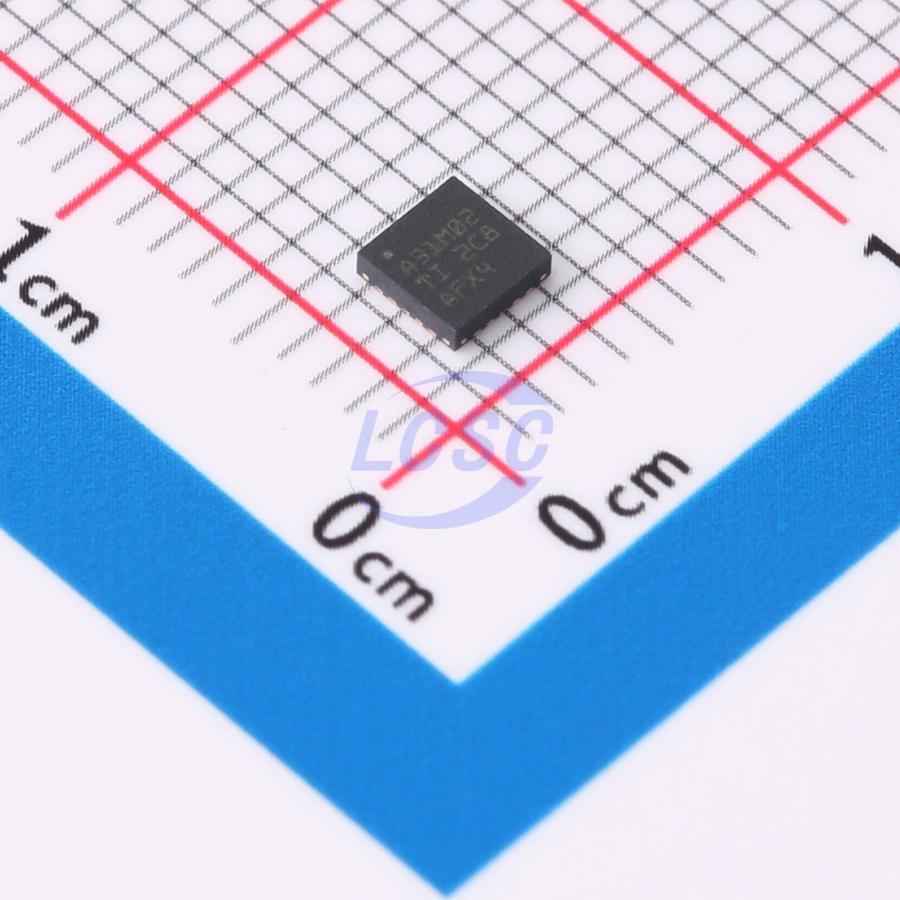

ADS131M02IRUKR

24 Bit Analog to Digital Converter 2 Input Sigma-Delta WQFN-20(3x3)

WQFN-20(3x3)ROHS CompliantActive

2-channel, simultaneous sampling, 24-bit Δ-Σ ADC

Manufacturer: TI
Manufacturer part #: ADS131M02IRUKR
Store part #: C5215160
Package / case: WQFN-20(3x3)
Category: Analog to Digital Converters (ADC)
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,768 in stock

#C5215160

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹364.99	₹364.99
10+	₹307.85	₹3,078.50
30+	₹272.22	₹8,166.60
100+	₹235.72	₹23,572.00
500+	₹219.21	₹1,09,605.00
1,000+	₹212.04	₹2,12,040.00

Quantity (min 1)

1 × ₹364.99

₹364.99

excl. GST

₹430.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

ADS131M02IRUKR

₹364.99 for 1 + GST

Specifications

Operating Temperature: -40℃~+125℃
Interface: SPI
Voltage - Supply: 2.7V~3.6V
Number of Channels: 2
Integral non - linearity: 9LSB
Voltage Reference: Built-in
Clock/Oscillator: External
Clock Frequency: 8.192MHz
Features: Bipolar input;Multi-chip synchronization;Input buffer;Simultaneous sampling;Integrated modulator;Built-in digital filter;Auto calibration
Resolution(Bits): 64kHz;24
S/N Ratio: 102dB
ADC architecture: Sigma-Delta
Programmable Gain: Support

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.39 g

Overview

The ADS131M02 is a two-channel, synchronous-sampling, 24-bit, Δ-Σ ADC with wide dynamic range, low power consumption, and energy measurement-specific features, making it ideal for energy metering, power metering, and circuit breaker applications. The ADC inputs can be connected directly to resistor divider networks or power transformers for voltage measurement, or to current transformers, shunts, or Rogowski coils for current measurement. Individual ADC channels can be independently configured for each sensor input. A low-noise, programmable gain amplifier (PGA) provides gains from 1 to 128 to amplify low-level signals. In addition, the device integrates inter-channel phase calibration, offset, and gain calibration registers to help eliminate signal chain errors. The device integrates a low-drift, 1.2V reference to reduce PCB area. Optional CRC in the data input, data output, and register map ensures communication integrity. The complete AFE is available in a 20-pin TSSOP package or a leadless 20-pin WQFN package, rated for an industrial temperature range of –40°C to +125°C.

Applications

Electricity meters: commercial and residential
Circuit breakers
Protection relays
Power quality monitors
Battery test equipment
Battery management systems

Key features

2 synchronous sampling differential inputs
Programmable data rate up to 64kSPS
Programmable gain up to 128
Noise performance: dynamic range of 102dB at gain = 1, 4kSPS; dynamic range of 80dB at gain = 64, 4kSPS
Total harmonic distortion: -100dB
High-impedance inputs for direct sensor connection: 330kΩ input impedance at gain = 1, 2, and 4; ≥ 1MΩ input impedance at gain = 8, 16, 32, 64, and 128
Programmable inter-channel phase delay calibration: 244ns resolution at fCLKIN = 8.192MHz
Current monitoring mode for ultra-low-power tamper detection
Integrated negative charge pump allows input signals below ground
Inter-channel crosstalk: -120dB
Low-drift internal voltage reference
CRC for communication and register map
2.7V to 3.6V analog and digital supply
Low power: 2.3mW at 3V AVDD and DVDD
Package: 20-lead TSSOP or 20-lead WQFN
Operating temperature range: –40°C to +125°C
