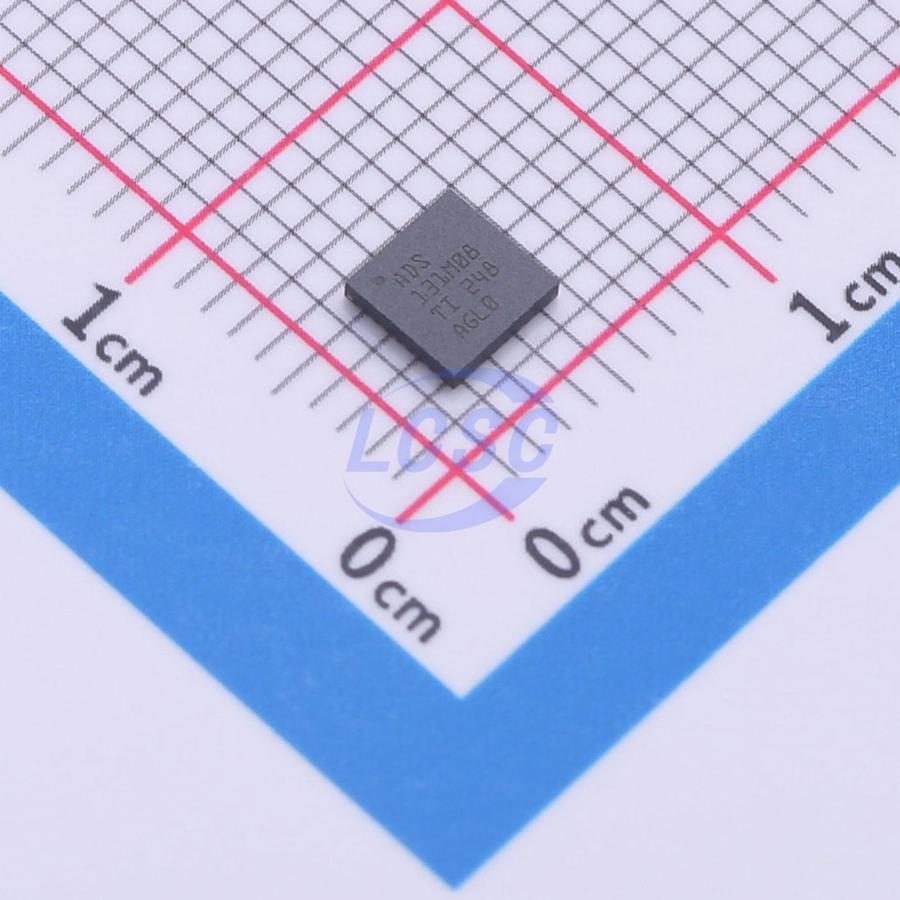

ADS131M08IRSNR

24 Bit Analog to Digital Converter 8 Input Sigma-Delta QFN-32(4x4)

QFN-32(4x4)ROHS3 CompliantActive

8-channel, simultaneous sampling, 24-bit Δ-Σ ADC

Manufacturer: TI
Manufacturer part #: ADS131M08IRSNR
Store part #: C5124126
Package / case: QFN-32(4x4)
Category: Analog to Digital Converters (ADC)
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,758 in stock

#C5124126

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹1,157.23	₹1,157.23
10+	₹1,025.99	₹10,259.90
30+	₹946.02	₹28,380.60
100+	₹878.90	₹87,890.00

Quantity (min 1)

1 × ₹1,157.23

₹1,157.23

excl. GST

₹1,365.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ADS131M08IRSNR

₹1,157.23 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Interface: SPI
Quiescent Current (Iq): 350nA
Voltage - Supply: 2.7V~3.6V
Number of Channels: 8
Integral non - linearity: 7.5LSB
Voltage Reference: Built-in
Clock/Oscillator: Built-in;External
Clock Frequency: 8.192MHz
Features: Bipolar input;Multi-chip synchronization;Built-in digital filter;Simultaneous sampling;Integrated modulator
Resolution(Bits): 32kHz;24
S/N Ratio: 101dB
ADC architecture: Sigma-Delta
Programmable Gain: Support

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.073 g

Overview

The ADS131M08 is an eight-channel, simultaneous-sampling, 24-bit, Δ-Σ ADC with wide dynamic range, low power consumption, and energy-measurement-specific features, making it ideal for energy metering, power metering, and circuit breaker applications. The ADC inputs can be directly connected to resistor divider networks or power transformers for voltage measurement, or to current transformers or Rogowski coils for current measurement. Individual ADC channels can be independently configured for their respective sensor inputs. A low-noise, programmable gain amplifier (PGA) provides gain settings from 1 to 128 to amplify low-level signals. In addition, the device integrates inter-channel phase calibration, offset, and gain calibration registers to help eliminate signal chain errors. The device integrates a low-drift, 1.2V reference to reduce PCB area. Optional cyclic redundancy check (CRC) on data input, data output, and register map ensures communication integrity. The complete analog front end (AFE) is available in a 32-pin TQFP package or a leadless 32-pin WQFN package, rated for an industrial temperature range of –40°C to +125°C.

Applications

Electricity meters: commercial and residential
Circuit breakers
Protective relays
Power quality monitors
Battery test equipment
Battery management systems

Key features

8 simultaneous sampling differential inputs
Programmable data rate up to 32kSPS
Programmable gain up to 128
Noise performance: dynamic range of 102dB at gain = 1, 4kSPS; dynamic range of 80dB at gain = 64, 4kSPS
Total harmonic distortion: -100dB
High-impedance inputs for direct sensor connection: 330kΩ input impedance at gain = 1, 2, and 4; ≥1MΩ input impedance at gain = 8, 16, 32, 64, and 128
Programmable inter-channel phase delay calibration: 244ns resolution at fCLKIN = 8.192MHz
Current monitoring mode for ultra-low-power tamper detection
Fast startup: first data within 0.5ms of voltage ramp-up
Integrated negative charge pump allows input signals below ground
Inter-channel crosstalk: -120dB
Low-drift internal voltage reference
CRC for communication and register map
2.7V to 3.6V analog and digital supply
Low power: 6.0mW at 3V AVDD and DVDD
Package: 32-pin TQFP or 32-pin WQFN
Operating temperature range: -40°C to +125°C
