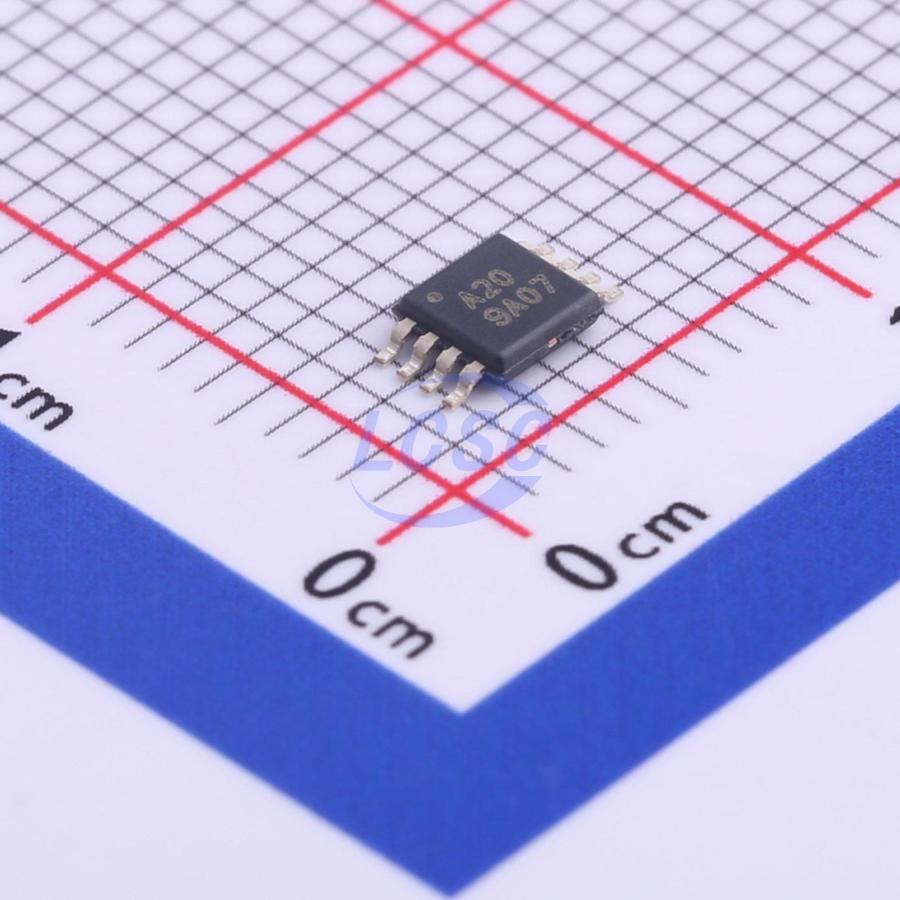

ADS8320E/2K5
SPI 2.7V~5.25V VSSOP-8-0.65mm Analog to Digital Converters (ADC) RoHS
VSSOP-8-0.65mmROHS3 CompliantActive
16-Bit, High-Speed, microPower Sampling Analog-to-Digital Converter
- Manufacturer
- TI
- Manufacturer part #
- ADS8320E/2K5
- Store part #
- C527444
- Package / case
- VSSOP-8-0.65mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,189 in stock
#C527444
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,086.73 | ₹1,086.73 |
| 10+ | ₹934.02 | ₹9,340.20 |
| 30+ | ₹806.74 | ₹24,202.20 |
| 100+ | ₹728.75 | ₹72,875.00 |
1 × ₹1,086.73
₹1,086.73
excl. GST
₹1,282.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ADS8320E/2K5
₹1,086.73 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Quiescent Current (Iq)
- 3uA
- Voltage - Supply
- 2.7V~5.25V
- Number of Channels
- 1
- Voltage Reference
- External
- Clock/Oscillator
- External
- Clock Frequency
- 24kHz~2.4MHz
- Features
- Simultaneous sampling
- Resolution(Bits)
- 100kHz;16
- S/N Ratio
- 90dB
- ADC architecture
- SAR
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.084 g
Overview
The ADS8320 device is a 16-bit, sampling analog-to-digital (A/D) converter with ensured specifications over a 2.7 V to 5.25-V supply range. It requires very little power even when operating at the full 100-kHz data rate. At lower data rates, the high speed of the device enables it to spend most of its time in the power-down mode. The average power dissipation is less than 100 mW at 10-kHz data rate. The ADS8320 also features operation from 2 V to 5.25 V, a synchronous serial (SPI/SSI compatible) interface, and a differential input. The reference voltage can be set to any level within the range of 500 mV to VCC. Ultra-low power and small size make the ADS8320 ideal for portable and battery-operated systems. It is also a perfect fit for remote data acquisition modules, simultaneous multi-channel systems, and isolated data acquisition. The ADS8320 is available in an 8-pin VSSOP package.
Applications
- Battery-Operated Systems
- Remote Data Acquisition
- Isolated Data Acquisition
- Simultaneous Sampling, Multichannel Systems
- Industrial Controls
- Robotics
- Vibration Analysis
Key features
- 100-kHz Sampling Rate
- microPower: 1.8 mW at 100 kHz and 2.7 V, 0.3 mW at 10 kHz and 2.7 V
- Power Down: 3 μA (Maximum)
- 8-Pin VSSOP Package
- Pin-Compatible to ADS7816 and ADS7822
- Serial (SPI/SSI) Interface
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ADS8325IDGKR#C544488TI · MSOP-8 | TI | MSOP-8 | 398 | ₹1,587.36 · 398 in stock | View |
 | ADS8325IBDGKR#C701682TI · MSOP-8 | TI | MSOP-8 | 46 | ₹1,586.22 · 46 in stock | View |
 | ADS8317IBDGKR#C2876398TI · MSOP-8 | TI | MSOP-8 | 46 | ₹1,726.54 · 46 in stock | View |
| ADS8317IDGKR#C701675TI · MSOP-8 | TI | MSOP-8 | 90 | ₹1,689.18 · 90 in stock | View | |
| ADS8326IDGKR#C1543369TI · MSOP-8 | TI | MSOP-8 | 180 | ₹1,468.61 · 180 in stock | View | |
