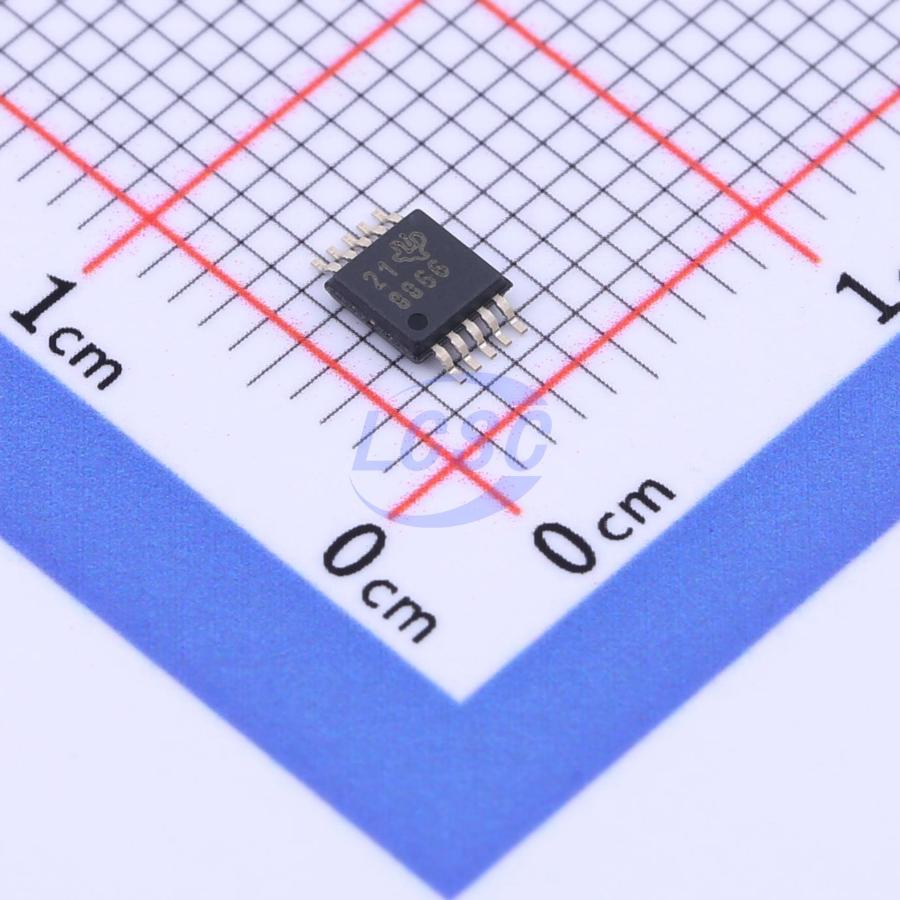

ADS8866IDGSR

The ADS8866 is a 16-bit, 100-kSPS, single-ended input, analog-to-digital converter (ADC). The device operates with a 2.5-V to 5-V external reference, offering a wide selection of signal ranges without additional input signal scaling. The reference voltage setting is independent of, and can exceed, the analog supply voltage (AVDD). The device supports unipolar single-ended analog inputs in the range of -0.1 V to V_REF + 0.1 V. Device operation is optimized for very low-power operation. Power consumption directly scales with speed. This feature makes the ADS8866 excellent for lower-speed applications. No Separate LDO Required for the ADC Supply

Applications

• Automatic test equipment (ATE)
• Instrumentation and process controls
• Precision medical equipment
• Low-power, battery-operated instruments

Key features

• Sample rate: 100 kHz
• No latency output
• Unipolar, single-ended input range: 0 to +V_REF
• SPI-compatible serial interface with daisy-chain option
• Excellent AC and DC performance: SNR: 93 dB, THD: -108 dB
• INL: ±1.0 LSB (typ), ±2.0 LSB (max)
• DNL: ±1.0 LSB (max), 16-bit NMC
• Wide operating range:
• AVDD: 2.7 V to 3.6 V
• DVDD: 1.65 V to 3.6 V (independent of AVDD)
• REF: 2.5 V to 5 V (independent of AVDD)
• Operating temperature: -40°C to +85°C
• Low-power dissipation:
• 0.7 mW at 100 kSPS
• 70 μW at 10 kSPS
• Power-down current (AVDD): 50 nA
• Full-scale step settling to 16 Bits: 1200 ns
• Packages: VSSOP-10 and VSON-10
